A Field Guide to Casing, Tubing & Drill Pipe Elevators

Cherry — Mon, 14 Sep 2026 06:42:34 +0000

Oilfield handling field guide · Updated September 2026

Comprehend the load path, match the support mechanism, verify 4 critical interfaces and maintain evidence of inspection accessible throughout the pre-use assessment and controlled disposition.

In short: select a pipe elevator by following the load path. Confirm the tubular’s load-bearing feature, the bore or inserts, complete closure, the link or bail interface, and traceable identity and rating evidence. Rated capacity is necessary, but it is not proof of fit.

Casing, Tubing & Drill Pipe Elevators are load-bearing handling tools in the hoisting systems of drilling rigs. By itself, a tool catalog number only identifies the tool designed to handle a particular load. It cannot confirm that the tubular on the floor, the fitted bore or inserts, the latch, and the link interface all match today’s operation.

This field guide has a distinct role from Welong’s casing, tubing and drill pipe elevator solution page. The Page controls product families, model-level specifications, and the commercial offering. This article covers the educational work that precedes a product comparison: identifying the support structure, understanding the closure design, preparing pre-use assessment evidence, and deciding when an unresolved mismatch requires the selection to stop for technical review.

Scope and safety: this is a decision and inspection framework, not an operating procedure, engineering approval or replacement for the applicable standard, manufacturer manual, employer program, lifting plan or competent-person judgment. Don’t assume a wear limit, proof-test interval or a repair strategy is provided in a general article.

1 · Identify
Tubular, profile, operation and tool identity

2 · Match
Support feature, bore or inserts and closure

3 · Verify
Links, retention, rating evidence and condition

4 · Control
Lift sequence, records and disposition

1. What a Pipe Elevator Does in the Rig Hoisting System

A pipe elevator isn’t just a clamp. It’s a load-bearing interface in a system. These elevators surround or engage a tubular, transfer the suspended tubular’s weight to the elevator body, and transmit the load through links or bails to the hook or top drive system. Load transfer begins at the tubular’s compatible support feature, continues through the elevator’s closed body, and reaches the hoisting equipment through the matched links or bails. The official API composite-list taxonomy places casing, tubing, drill-pipe and drill-collar elevators among links, hooks, adapters and other hoisting elements under API 8C categories. This component list makes one point clear: an elevator does not operate in isolation.

The two-page public preview of API Recommended Practice 8B also includes casing, tubing, drill-pipe and drill-collar elevators in the hoisting equipment it describes. The preview says the document addresses inspection, maintenance, repair and remanufacture of equipment made to API 8A, API 8C or ISO 13535 for drilling and production operations. Because that preview shows scope and contents rather than the complete requirements, authority remains with the applicable purchased standard and controlled procedures.

The Load-Path Before Load-Rating Rule

Trace the position where the tubular is supported. Then, determine how the closed elevator passes load to the links. Only after those interfaces are correct should rated capacity become an acceptance check. More load capacity can’t make up for a wrong shoulder, an incorrect insert, incomplete latch engagement or an incompatible link eye.

That rule also prevents a common language error. Elevator can refer to different mechanisms, duties and levels of complexity. For example, a mechanism designed to move and position just one joint doesn’t automatically do the same work as a string elevator, which is why single joint elevators, tubing elevators, and manual elevators must be checked against the stated duty. Likewise, a center-latch body does not tell you whether the load is carried by a square shoulder, a taper or slips; center latch elevators and center-latch elevators are spelling variants for closure architecture, not proof of the support mechanism. When selecting a closure architecture and support mechanism, ensure they remain as separate lines in the selection record.

2. Casing vs. Tubing vs. Drill Pipe Elevators: Match the Tubular First

When recording, always begin with the tubular and the operation rather than the tool name, even when a drilling manual or handling tools catalog starts with a family label. General names won’t protect you in situations where a drawing revision, premium connection or special upset change the profile of the mechanism; this matters in drill string or casing running work involving heavy casing, special casing, or adjacent running tools. Record the tubular type, nominal outside diameter, actual load-bearing profile, connection or coupling geometry, upset or taper where relevant, and whether the task involves one joint or a suspended string. The published range of steel pipe and OCTG products from Synbase Steel can help identify the tubular product family, but elevator compatibility still requires the exact drawing and approved handling configuration.

Tubular-first identification matrix
Duty	Record before selection	What must not be assumed
Casing	Body OD, coupling or shoulder profile, string duty, handling sequence	That nominal OD proves coupling clearance or support fit
Tubing	OD, upset/coupling detail, workover or production-handling duty	That a casing-style label covers the tubing connection
Drill pipe	Pipe body, tool-joint OD and load shoulder or taper	That pipe-body OD defines the supporting bore
Drill collar	Collar OD, shoulder geometry and handling configuration	That a drill-pipe tool is interchangeable
Single joint	Individual-joint duty, pickup method and compatible profile	That light handling duty authorizes string suspension

For operations involving drill pipe, refer to the drill pipe guide to clarify body and tool-joint terminology for the elevator interface. For a collar-heavy bottomhole assembly, the drill collar guide will provide the context of the adjacent component. These references clarify tubulars; they don’t approve an elevator pairing.

3. Shoulder, 18° Bottleneck, and Slip Support Mechanisms

The useful classification question is: What does the suspended load rest on?

Field rule: A drill pipe elevator specification, side door elevator manual, or slip type elevators brochure is only a starting point. Match the exact tubular profile, support feature, closure, and link interface before treating any listed capacity as usable.

With a collar- or square-shoulder design, the load rests on a matching, enlarged feature. In a bottleneck design, the load bears on a matching tapered upset. Slip-type designs use inserts or slips to engage the pipe body. These descriptions provide the basis for load transfer; they don’t mean that all manufacturers have the same geometry or naming, and related labels such as spider, casing spiders, or rotary holding equipment must not be treated as interchangeable elevator functions.

Support mechanism	Load-bearing feature	Key verification question
Square shoulder / collar supported	Compatible shoulder, coupling or collar surface	Does the elevator fully seat on the intended supporting surface without interference?
18° bottleneck / tapered	Matching external upset or tapered load shoulder	Are taper, bore and contact pattern the approved combination?
Slip type	Pipe body through fitted slips or inserts	Are the correct inserts installed, seated, in condition and approved for the body?

The hidden failure in many selection conversations is treating size as one number. The pipe body, tool joint or coupling, bore in the elevator, installed inserts, and clearance, can all be dimensions of interest; for 18° type elevators, that includes confirming the specified 18° external upset as the intended bearing profile. In controlled documents, distinguish the support mechanism for drill pipe from the closure mechanism for drill pipe elevators: a collar type or 18° label still must identify the approved bearing feature and whether the tool is expected to support the weight of the entire string. Record the actual profile and the manufacturer’s approved combination. If the support surface is unresolved, a higher capacity rating does not make the pairing acceptable.

4. Center-Latch and Side-Door Elevators: Closing Is Part of the Load Path

Center-latch and side-door describe the body’s opening and closing mechanism. They don’t directly explain how the tubular is supported. Whatever the design, inspection has to follow the closing path: body and hinge condition, free movement, latch or pawl engagement, the safety latch or other secondary retaining feature specified by the manufacturer, and the approved indication or confirmation method; listings for SLX side door elevators, an SLX, or series slip type elevators do not replace that model-specific check.

One 2026 U.S. patent application presents an illustrative example, not a universal design. It shows a side-door tubular elevator with a door, catch, locking latch, and a verification lock. In the disclosed design, the verification feature can’t move to the locked position until the latch engages the catch. The main point isn’t that all elevators should implement the patent’s design. The main point is that “looks closed” and “verified engagement” are two very different concepts, so the hinge pin and pawl, any extra safety device, and the model’s stated safety features need positive confirmation.

Do verify

Latch and catch engagement
Hinge/pin condition and free movement
Secondary lock or retainer as designed
Full closure around the correct tubular profile

Do not infer

Closed because the handle moved
Fit because the nominal OD looks right
Serviceability because paint is intact
Interchangeability from a family nickname

One contractor-published injury case illustrates the importance of accessories surrounding the closing action. When drill-pipe was being laid down, wind caused a rope attached to the elevators to become trapped between the top-drive equipment. As the joint was lowered, tension in the rope eventually tripped the elevators open and the falling joint struck a floorhand. Out of this incident, the contractor developed a new purpose-built strap and modified the procedure. This is a specific example, not a universal prescription of accessories, but it proves that the operating configuration can negate familiar controls.

5. The Four-Interface Fit Check Before You Select an Elevator

The 4-Interface Fit Framework converts the hypothetical situation of “Will it lift this pipe?” into four verifiable cases. It’s designed as fail-closed. If one interface cannot be verified, stop the selection and obtain the applicable drawing, manual, inspection evidence or manufacturer confirmation before comparing rated capacity.

Interface	Evidence to collect	Stop condition
1. Tubular → support feature	Tubular type, body OD, connection/coupling, shoulder or taper, drawing revision	Profile, dimension or duty is uncertain
2. Support feature → bore/inserts	Exact elevator identity, bore or installed insert, approved compatibility record	Contact, seating, insert identity or clearance is unresolved
3. Body → closure	Hinge, pins, latch/catch, secondary retention, functional confirmation	Incomplete engagement, binding, damage or an ambiguous indication
4. Elevator → links/hoist	Link/bail identity, eye and ear fit, pins/retainers, orientation, system rating basis	Misalignment, mismatched radii, incomplete retention or unclear system rating

What a useful selection record looks like

A usable record goes beyond “5-inch drill pipe, 150-ton elevator.” It identifies the tubular drawing, body and tool-joint dimensions, support feature, elevator ID, installed bore or inserts, closure, link combination, load basis, and controlled acceptance documents. It names the reviewer and decision date or revision. This lets the next shift confirm whether the configuration changed. When enquiring about steel pipe products from Baling Steel for the tubular supply, request the applicable dimensional drawings and inspection records rather than treating a catalogue description as handling approval.

If one element of the configuration has been changed, the affected interface should be reopened instead of copying the previous approval. A different tool-joint OD can change shoulder seating; an insert swap can change body contact; and a replacement link can change the eye-to-ear fit. A repaired latch can also require verifying the new status. The goal isn’t to create work for its own sake. It’s to avoid a known product name or an impressive capacity value from acting as a substitute for the actual load path.

The “rated capacity isn’t fit” conclusion is a bounded safety inference from these separate interfaces. API’s product taxonomy distinguishes elevators, links, adapters and hooks; the patent example shows body, closure and bail interfaces; and a U.S. offshore safety alert describes how the orientation, alignment and completion of link retention remained important even when high-capacity handling links were being used. None of these sources offer a generic fit formula. Collectively, they show why one capacity mark can’t prove the whole system is suitable.

If you’re comparing a slip-based holding function with an elevator’s hoisting role, the casing slip guide is useful in distinguishing the mechanisms. When all four inputs are complete and a product-level comparison is valid, return to the Welong solution Page as opposed to turning this guide into a duplicate catalog.

Range evidence cross-check: public Page values illustrate why a portfolio range is not a fit decision
Evidence checkpoint	Value published on the solution Page	Guide-level interpretation
Portfolio load span	27 kN–500 T	Confirms mixed duties and units, not one universal rating
Portfolio size span	2-3/8″–36″	Confirms family breadth, not fit for a specific tubular
Drill-pipe example	2-3/8 in–6-5/8 in; 65 tons / 100 tons / 125 tons / 150 tons / 250 tons / 350 tons / 500 tons	Model, size and support profile still control the valid combination
Casing example	4-1/2 in–10-3/4 in; 100 tons / 150 tons	Coupling or shoulder geometry remains a separate check
Tubing example	1.05 in–5 in; 35 tons / 65 tons / 100 tons / 125 tons / 150 tons	Nominal OD alone does not confirm connection compatibility
Drill-collar example	2-7/8 in–11-1/4 in; 35 tons / 65 tons / 125 tons / 150 tons	Collar support geometry needs its own evidence
Side-door example	2-3/8″–30″; 100–500 T	Closure name does not identify the load-bearing feature
Slip-type example	2-3/8″–30″; 100–350 T	Insert identity and body contact remain decisive
Single-joint example	2-3/8″–36″; 45–60 kN	Single-joint duty is not string-suspension authorization

Boundary: these are public portfolio examples from the linked solution Page, used here only to show why size and load must be checked together; the current Page, quotation and controlled technical documents remain the commercial and model-level authority

6. Pre-Use Inspection: From Identification Marks to Latch Engagement

A useful pre-use inspection produces evidence, not a ritual glance. For casing elevators and other tubular-handling elevators, that evidence must match the exact support and closure design. OSHA’s drilling eTool identifies falling tubulars and suspended or moving loads as hazards. It calls for proper use, inspection and maintenance practices and tells workers to stand clear of suspended, hoisted or moving loads. Its “before each tour” suggestions pertain to wire rope, slings, catlines, chains and hooks; they support a high-level work-control principle, not an elevator-specific universal interval.

Pre-Use Acceptance Evidence Matrix
Check category	Evidence	Escalate when
Identity	Manufacturer, model/serial or traceable ID, rated capacity and approved configuration	Marking is missing, altered, illegible or conflicts with records
Load surfaces	Bore, shoulder, slips/inserts and contact surfaces checked to the applicable criteria	Wear, deformation, contamination or damage cannot be accepted against controlled limits
Body	Condition of body, ears, hinge areas and attachment points	Crack indication, deformation, unauthorized weld/repair or impact evidence appears
Moving parts	Free movement, pins, latch, pawl/catch, springs and retention as designed	Binding, excessive play, missing retention or uncertain engagement exists
Configuration	Current bore, inserts, accessories and approved configuration match the traceable record	A part is unidentified, substituted or inconsistent with the recorded setup
Closure proof	Required latch, lock, indicator and secondary retention reach the approved state	Handle position or appearance is the only evidence of engagement
Links and interfaces	Correct link/bail, eye/ear seating, orientation, pins, retainers and connection to hoist	Any interface is mismatched, incompletely retained or not traceable
Records and area	Inspection status, open defects, named owner, communication and controlled lifting area	Status is expired/unclear, an open defect exists or area control is not established

Don’t take examples like “cracks,” “play” or “wear” and convert them into your own rejection criteria. The applicable API RP 8B category, manufacturer criteria, site program and a qualified inspection method determine what’s acceptable. The field check’s job is to detect a mismatch, damage indication or missing record and stop it from becoming an unexamined lift.

7. Rig-Floor Handling Sequence That Keeps the Proof Visible

The Open-Close-Lift Proof is a situational communications framework rather than an all-purpose operational procedure. It shows the crew five actionable decision points that can be aligned with the approved procedures and equipment directions, especially when legacy instructions use phrases such as handle pipe, hold the pipe, lifting or lowering, or safe handling without naming every interface check.

Brief and control the area. Verify the task, tubulars, tools, exclusion zone, nominated method of communication and the owner of each confirmation. Carry unresolved defects and configuration changes through shift handover.
Open and present. Use the opening method specified by the manufacturer, align the elevator with the approved load-bearing feature, and maintain clear pinch and suspended-load zones.
Close and Verify. Confirm full seating, latch/catch engagement and every secondary lock, pin or retainer required by the design. Don’t use the position of the handle as evidence of engagement.
Restrain the Load. Follow the approved lift sequence. Stop if there are abnormal seated positions, movements, noises, indications, misalignments or a loss of communications. Don’t try to correct anything beneath a suspended load.
Set Down, Release, Record. Ensure the load is supported before opening, rather than bearing weight through the elevator. Record defects and notable events as well as configuration changes and the next permitted status of the tool.

The U.S. offshore link-installation alert cites an important example of completion evidence. The specific case involved replacing 350-ton elevator links with 750-ton riser-handling links for a 21-inch marine riser; each replacement link was about 15 ft long, weighed roughly 1,200 lb and initially rested at about 45°. In this case, misalignment hindered the latch and pin installation. The alert recommended keeping the hoisting line attached until the retainer was completely installed and loading the links in the correct orientation. The lesson is narrow but important: a sequence should define the exact point at which temporary support can be removed.

For more context on the drilling system around the lift, see the relevant section of Welong’s downhole drilling tools guide. The sequence described here remains subordinate to the rig’s approved lifting plan and current operating procedure.

8. Maintenance Records and Controlled Disposition

“Keep using it” and “scrap it” aren’t the only lifecycle states. A suspect elevator may be removed from active service pending qualified inspection; depending on the applicable requirements and findings, its next state might involve cleaning or lubrication, part replacement, repair, remanufacture, verification, testing, retirement, or documented return to service.

The preview of API RP 8B shows the lifecycle of the equipment in separate sections related to inspection/maintenance, repairs, remanufacture, load tests, and documentation and records. Its contents identify periodic inspection and maintenance categories and frequencies, plus a normative annex addressing wear limits for square-shoulder elevator bores used with non-upset casing and tubing. This is precisely why two opposite shortcuts are unsafe: saying “there are no standardized limits” is wrong, while copying one mechanism-specific limit into every elevator program is also wrong. Review the applicable published version in its entirety, along with the controlled equipment documents.

Field/operator care

Clean and lubricate only as instructed
Protect identity and status markings
Record configuration and observed defects
Quarantine uncertain equipment

Controlled technical work

Measurement against applicable wear criteria
NDE, repair or replacement authorization
Remanufacture verification and load testing
Formal return-to-service disposition

A useful equipment file links the tool’s traceable identity to inspections and their evidence, maintenance actions, repairs, the test evidence, configuration changes, defects, and final disposition. It must identify the actual elevator, the applicable criteria, the reviewer, and the rationale for the decision.

9. What Is Changing in Pipe Handling, and What Still Has to Be Verified

The use of mechanized, automated, and robotic systems for tubular handling has been increasing due to an emphasis on safety and efficiency within the oil and gas industry, including work on the oil and gas rig floor. JPT describes safety and efficiency as long-running drivers of this evolution. Also, Drilling Contractor describes robotic drill-floor systems that incorporate a pipe handler, electric roughneck, multi-size elevator, and integrated control systems. These systems can decrease the need for manual handling, relocate tasks, and reduce some worker exposure.

The verification design changes because automation can shift exposure without removing interface risk. A human may no longer pull a handle locally. A sensor, feedback signal, interlock or control-state model may verify part of the sequence. Another thing that remains is the need to establish the identity of the tool, tubular compatibility, insert / bore configuration, full closure, link retention, controlled-area status and response to conflicting indications. Automation won’t make an unknown interface safe, but it can reduce exposure.

The status of the standards changes as well. When checked on September 14, 2026, API’s updates page shows an update of API 8C, 6th edition, for August 2025, older 5th-edition errata and a separate update for the licensing information form for July 2026. These entries must be read carefully. A change of edition, errata, and a licensing statement are separate records and won’t provide a contract basis for every jurisdiction or every project. Confirm the applicable edition, errata, licensing basis and purchaser requirements at the time of use.

Frequently Asked Questions

What are the main types of elevators in drilling?

Work Roll Guide: Function, Wear, Inspection and Maintenance

Cherry — Fri, 11 Sep 2026 09:18:49 +0000

ROLLING MILL ENGINEERING GUIDE · 2026

By Cherry · Updated September 2026

A Work Roll is the roller that contacts strip, sheet or plate inside a rolling mill. Thickness reduction occurs in the loaded gap between the two rolls. The design of the rolls and their surface condition influence the roll’s capability to produce a finished shape.

That definition is sufficiently simple, but the reality of this situation is much less so. Work rolls, due to their loading condition, bend, expand asymmetrically when heated, and wear along their length. They also come in contact with backup rolls and develop a surface record of the various disruptions a processing machine experiences. Treating each repetitive mark as a “bad roll” may cause a mill to grind away good material without finding the root cause. Focusing only on the pounds of material processed can also hide a crack, pickup band, or abnormal thermal event.

Quick answer: to determine the symptoms, refer to the campaign record to evaluate the conditions under which the problem occurred, and to confirm the roll physical conditions, perform an isolated inspection of the roll. Evidence from these will determine the next course of action, which in most cases won’t be replacing the work rolls based on a universal life number.

What Is a Work Roll?

The work roll is the rolling-stand component that contacts the strip. Work rolls transmit rolling force, establish the working gap, and offer a controlled surface to the material. Since the barrel comes in contact with the product, changes in diameter, crown, roughness, or cleanliness of the barrel appear as changes in thickness, flatness, or surface quality of the product.

In a two-high stand, the same rolls contact the material and resist bending. The other arrangements (four-high and cluster) distribute these functions in a more deliberate way: smaller work rolls contact the strip, while larger backup rolls support them. The diameter of the work rolls can be small, but this can also mean that controlling bending and support contact can become a more important consideration.

“Rolls are the basic tool of rolling mills.”

Niekurzak and Kubińska-Jabcoń, Materials (2022)

This phrase shouldn’t be confused with “work role,” construction-management software, or a rolling worktable. Here, “work roll” always means a roll in metalworking. For the broader product family and adjacent components, the Welong mill rolls hub provides the commercial site context.

How Work Rolls and Backup Rolls Share the Load

Work rolls and backup rolls aren’t equivalent components. Strip contact occurs at the work roll, while the backup roll contacts and supports the work roll. Even though a fault in either member can influence the same final strip, these rolls have distinct zones of contact, bending behavior, and surface functions.

In order to resist bending, support rolls are needed. Without support, the barrels would deflect and the loaded gap would vary across the strip width. Backup rolls diminish the bending tendency, but support isn’t perfect: the bodies of the rolls deform, bearings and chocks carry loads, and the contact pressure between the work roll and backup rolls varies across the barrel.

One strip mill roll can’t solely account for a center buckle or edge wave. The root cause could reside in mechanical crown, roll bending, backup roll profile, thermal distribution, misalignment, tension, a control response or a system reaction. The point isn’t “Which roll looks guilty?” but “Which measured pattern can reproduce the defect’s position, wavelength, and occurrence?”

Evidence surface	Work-roll responsibility	Backup-roll or system alternative
Product contact	Direct transfer of roughness, pickup or local damage	Indirect influence through support and deflection
Bending	Smaller diameter makes loaded profile sensitive to support	Profile and chock conditions alter support distribution
Surface indication	Strip-side cracks, spalls, pickup and texture change	Inter-roll contact marks, bearing or alignment evidence

A 2024 temperature and crown study considered the work and backup rolls and checked the calculations against field measurements. That paired treatment matters: the loaded stand behaves as a system, not as independent cylinders. The study is also a useful reminder to keep model inputs and stand conditions attached to every result.

Which Rolling Regime Are You Diagnosing?

Any broad Work Roll guide needs an operating boundary before it can deal with wear. Hot-strip finishing, conventional cold rolling and skin-pass rolling all use the same component name, but they have different temperature, lubrication, surface-transfer and dominant-failure conditions. Evidence from one regime shouldn’t be carried into another without justification.

Rolling regime	Work-roll duty that moves forward	Evidence that must stay local
Hot-strip finishing	Thermal cycling, oxide/scale interaction, cooling distribution, crown and wear	Stand sequence, strip temperature, coolant layout and width mix
Cold rolling	Surface finish, lubrication, contact fatigue, cleanliness and tight gauge/shape control	Reduction schedule, lubricant, strip strength, roughness method and cleanliness history
Skin-pass rolling	Deliberate texture transfer, topography retention and downstream forming behavior	Texture process, elongation, lubricant retention, sheet topography and stamping requirement

A 2025 review of surface texturing from skin-pass rolling through sheet forming explains how a work roll transfers texture to the sheet, influencing lubricant distribution and later formability. Wear can round the roll texture and alter surface transfer. In this regime, “surface wear” isn’t just lost roll stock; it can change the controlled surface of the final formed sheet.

Crown, Elastic Deflection and Thermal Profile

Roll crowning is the intentional or developed variation of diameter along the length of a roll barrel. The operating profile is the combination of manufactured geometry, elastic deformation, thermal expansion, wear and any active bending or shifting response. Only looking at a cold ground profile brings several of those terms into view.

Mechanical crown

Ground crown gives an unloaded roll a shaped profile. When separating force is applied, elastic bending and flattening at contact points alter that shape. The same profile may produce different loaded gaps when width, force schedule or product mix changes. This is an engineering-system difference; it isn’t grounds for a request to change a roll specification without mill calculations.

Thermal crown

The strip heats, the barrel cools, headers remove heat. Because there’s contact and cooling that vary across the face, there’s a nonuniform heating pattern. Local expansion can cause hot profile shifting due to the accumulation of coils, widths, and pauses. The 2024 study reported, for its modelled cooling case, a reduction in maximum work-roll temperature from 136 °C to 38 °C and a reduction in maximum thermal crown from 0.67 mm to 0.33 mm. These values describe the study’s conditions and don’t represent operational conditions of a new mill.

Wear profile

Material removal causes wear; thermal expansion does not. The cross-direction wear pattern follows rolled widths, local contact pressure, scale and oxide behavior, cooling, material response and campaign sequence. Thermal crown can change throughout a campaign, while wear remains until grinding. That distinction matters when temperature changes correct a shape problem but a surface mark stays fixed at one barrel position.

What Li and colleagues presented in 2024 was an integration of theoretical calculations, simulation and field measurements. The important lesson isn’t their reported cooling value. The lesson is that it’s necessary to consider like with like: cold profile versus cold profile, stable thermal state versus stable thermal state, and same coordinate system across grinding, stand, and strip records.

Work Roll Construction and Material Families

When considering work-roll materials, balance is sought among wear resistance, thermal-fatigue behavior, contact-fatigue strength, toughness, roughness retention and grindability. The balance is of varying concern for each stand and each process. Hence, a family name, while limiting the scope, isn’t the last word in the engineering conversation.

Family or construction	Why mills use it	Evidence to keep with the name
Forged alloy steel	Through-section integrity and controlled hardened layer for demanding cold-rolling or support duties	Heat treatment, hardness profile, residual stress, ultrasonic result and remaining diameter
ICDP	A wear-resistant outer working layer with a tougher core in hot-strip finishing applications	Shell chemistry and depth, graphite/carbide structure, thermal-cycle history and stand position
High-chromium iron or steel	Wear and oxidation response suited to defined hot-rolling positions	Microstructure, hardness gradient, cooling practice and observed wear mechanism
High-speed steel (HSS)	Carbide-rich working layer and wear resistance in selected finishing stands	Mill trial scope, grind response, surface condition, campaign mix and cost per usable millimetre

The 2021 ICDP study is valuable because it shows how much detail hides inside one family label. Its tested outer layer contained 4.5 wt.% Ni, 1.7 wt.% Cr and 0.7 wt.% Nb. The design varied a 1,250–1,255 °C liquidus range and 1.10–1.15 wt.% Si, then tested hot wear at 250 °C and 350 °C. Those numbers pertain to that manufacturing system and experiment, and should not be used as a purchase specification. See the full study and test scope.

One 2022 hot-strip-mill analysis reported 14,000–20,000 Mg of rolled material per millimetre of radial wear for HSS rolls in its studied F5/F6 stands, compared with 2,000 Mg/mm for the studied high-chromium rolls. In addition, that article suggested that about 30% of roll reconstructions were attributable to operating the rolls beyond their intended limits. These numbers support the notion that the material used and its discipline interact. They shouldn’t be viewed as a guarantee of life.

Where mill-specific grade, heat treatment, hardness profile, and respective dimensions are concerned, Welong’s mill-roll grade selection resource can be used as a starting point. Confirm the information with the mill and roll engineer. Background on the forged component process controls can be found in the forged shafts process guide (adjacent manufacturing context, not a work-roll specification).

Surface Condition: Wear, Pickup, Chatter, Cracks and Spalling

Terminology used in describing failure modes such as “roll failure” is far too vague for basic failure mode analysis. Changes in wear geometry or texture occur gradually; material pickup transfers contamination to the barrel; chatter results in a pattern; cracks and spalling indicate a local failure. Each of these defines a specific evidence path with unique, immediate failure concerns.

Wear

Smooth changes in wear can lead to edge relief, change of crown or change in surface roughness. Abnormal wear may be localized by width, stand, cooling zone or contact band. Compare profile traces in the same barrel coordinate system and record the stock removed during grinding. “The roll looked polished” isn’t a measurement.

Pickup and banding

Material that becomes adhered or transferred to the roll may build up a raised band on the strip. Position matching strip defects and barrel locations provide strong evidence for the roll-side hypothesis. Chemistry, temperature, lubrication, scale and preceding process events should be covered in the analysis since they may explain adhesion of material.

Chatter

Chatter isn’t the only possible explanation for vibration and the development of a periodic line. Matching pitch may connect the mark with roll rotation, but vibration from a driven bearing, stand, strip or control system can overlap. Keep time, speed and vibration data prior to removing hardware; otherwise the evidence will be lost when the campaign is complete.

Cracks and spalling

Variation in thermomechanical processes, overload, cobble damage, residual stress and discontinuity may drive thermal crack growth, while spalling removes surface material. Brittle failure and material loss increase the risk level. Follow the mill’s isolation, handling and engineering-disposition procedure instead of relying on an online photograph.

Surface appearance isn’t a marker for structural health. A 2022 ICDP case study examined an F5 top roll whose chemical composition and unaffected surface hardness met the applicable standard, yet about 30% of the surface exfoliated. Spalling was attributed to poor shell-core bonding, microcracks, and scale inclusions. There was a combination of visual and ultrasonic testing, chemistry, metallography and hardness test interventions. This case shows the harm and the important reminder to not consider acceptable surface hardness of the composite roll as an indicator of its integrity.

The peer-reviewed cold-strip work-roll failure study examined premature failures through surface and material analysis. The larger general lesson is about procedure: name the identified mechanism, provide evidence to confirm the mechanism, and ensure the proposed causal mechanism is consistent with the evidence.

Surface Symptom-to-Evidence Matrix

Use the Surface Symptom-to-Evidence Matrix as a screening tool. It links a product observation to a roll-side clue, possible process alternatives, and the next confirming check. It doesn’t replace the mill’s defect standard or allow inspection with the equipment energized.

Symptom type	Roll-side clue	Do not ignore	Confirm with
Repeating longitudinal mark	Fixed barrel-position pickup, groove or crack	Guide contact, trapped debris, upstream mark	Cross-direction position match and isolated surface inspection
Periodic transverse band	Circumference-linked roll mark	Drive, bearing or stand vibration	Pitch-to-circumference calculation plus speed/frequency record
Edge wave or center buckle	Loaded-profile or wear-profile change	Tension, width schedule, roll bending, cooling and backup-roll support	Shape data, profile trace, thermal history and control record
Roughness drift or gloss variation	Texture wear, polishing or contamination	Strip material, lubrication, cleaning and measurement method	Mapped roughness readings under the same method
Sudden local surface loss	Spall or overload damage	Cobble, thermal shock, subsurface indication	Immediate controlled stop, isolation and engineering/NDT disposition
Local thickness deviation	Diameter loss, groove or local crown change	Gauge control, force measurement and upstream thickness	Thickness map aligned to barrel coordinate and profile trace
Dull or bright patch	Local polishing, roughness loss or residue	Strip chemistry, lubricant and cleaning history	Mapped roughness plus cleaned-surface observation
Edge build-up or edge mark	Width-dependent wear step or pickup	Width schedule, edge drop, coolant coverage and guides	Campaign width sequence and edge-zone profile
New mark after a cobble	Bruise, dent, overload crack or embedded debris	Damage to guides, bearings, backup roll or adjacent stand	Event-time trace and targeted isolated inspection

The strongest early clue is a repeatable spatial or frequency match. The strongest confirmation comes after process alternatives have been checked and the isolate roll has been measured or tested. If position, pitch and inspection don’t agree, then don’t fit the evidence to a roll-failure story.

Inspection Between Campaigns

Between campaigns, inspection should answer three questions: what changed, where did it change, and does the change affect safe return to service? Clean records identify the roll, stand, top/bottom position, drive/operator side and barrel coordinate before observations are recorded. Condition monitoring can improve service-life decisions when it ties dimensional profile, surface defects, cylindrical geometry and mill-control events to the same roll record.

For the visual surface, record the location and size of unusual pickup, heat tint, cracks, pits, spalls, bruises or bands.
For dimensions and profile, compare diameter, crown/profile, runout and removed stock with the same datum and measurement method.
For texture, map roughness rather than reporting a single convenient spot.
For nondestructive testing, use the qualified method and acceptance criteria relevant to the roll design and damage mechanism. Eddy-current, ultrasonic and magnetic methods aren’t interchangeable.
Add cobbles, cooling interruptions, overloads, vibration alarms and abnormal strip events to the same roll identity and event history.

Grinding data, production reports, roll files, statistical data, and eddy-current inspection were employed in the 2022 mill study. No single technique provided the answer. The result of this study is thus a practical model for combining evidence sources. Each result must retain the date, instrument, or source, coordinate, unit and be reviewed.

Safety boundary: observing from a protected position isn’t the same as a hands-on inspection. Further examination, cleaning, measurement, roll handling and testing must comply with the mill’s isolation, guarding, lifting instructions, OEM instructions and trained personnel instructions.

Grinding, Campaign Records and Change Criteria

Grinding removes material to restore the required profile and surface, while replacement or condemnation decisions determine whether usable roll stock remains. Those decisions add remaining diameter, damage depth, subsurface integrity and design limits to the evidence set. Material removal may alter the residual stress near the working layer, so the post-grind inspection is evidence in itself. Grind tonnage is useful to compare runs, but doesn’t answer either decision on its own.

The Campaign Record Card

Keep one record for each roll position and campaign so measurements, events and dispositions aren’t mixed across stands. Electronic or paper records both work when the mill uses the chosen format consistently.

Field group	Minimum record	Decision value
Identity	Roll ID, stand, top/bottom, drive/operator side, material family	Prevents data from different positions being mixed
Geometry	Start/end diameter, profile, runout, stock removed	Separates wear, thermal response and grinding history
Production	Tonnage or length, widths, grades, reductions, stand schedule	Makes campaign comparisons conditional rather than generic
Condition	Roughness map, visual findings, crack/spall indications, NDT result	Connects surface state to the chosen grind or disposition
Events	Cobbles, cooling loss, overload, vibration and strip-defect time	Explains outlier wear and prompts targeted inspection
Measurement method	Instrument, method, calibration state and measurement coordinate	Keeps profile, roughness and diameter trends comparable
Post-grind check	Final diameter, profile, surface result and applicable NDT result	Confirms whether the intended removal outcome was achieved
Disposition	Return, hold or condemn decision, approver, timestamp and next action	Closes the evidence trail for the next campaign

Trend stock removed per campaign and rolled quantity per usable metre. Product mix and stand position must remain comparable. A falling ratio doesn’t automatically indicate poor roll material; it could reflect increased duty, changed grinding practice, measurement drift or damage. Use the mill-approved minimum diameter and damage-removal rules instead of importing a condemn diameter from another installation.

4-Step Work Roll Decision Framework

The 4-Step Work Roll Decision Framework, used here as the Work Roll Evidence Ladder, helps avoid a premature conclusion from an early indication. Each Step introduces a higher level of evidence and limits possible responses. The outcome depends on the quality of input. Stop and correct the record if the roll identity, dimensions or position is uncertain.

Observe: define the strip or process symptom in measurable terms, location, pitch, width, time, speed and product.
Confirm: test whether the clue matches roll circumference, barrel coordinate, profile, roughness, temperature history or vibration frequency.
Isolate: review alternative causes, then inspect and measure the roll under the mill’s controlled isolation and handling procedure.
Decide: choose clean, correct the process, regrind, test further, return to service or replace. Record who approved the outcome and what evidence was used to make that decision.

If a transverse band repeats at a pitch close to the work-roll circumference, treat it as a roll-side hypothesis rather than a replacement decision. Compare the band timing with line speed, see whether pitch changes with roll diameter, review vibration and cobble history, and inspect the matching barrel position. When physical evidence is absent but a drive frequency matches, investigate the alternative source.

Once we need application-specific material, hardness, profile, dimensions or mill compatibility, the informational task is complete. Now you can proceed to Welong’s Work Roll engineering and configuration page. Welong’s About Us page indicates the company started in 2001 and provides supplier development, purchasing oversight, and quality control; these don’t contribute evidence toward a universal roll outcome.

What Changed in Work Roll Research in 2025–2026?

The improvement isn’t a forecast. Wear models integrate measurements and rolling-control data. A 2025 model combines elastic deformation, strip specifications and cumulative wear for work and backup rolls. Under its validation conditions, average deviation stayed within 0.01 mm; work- and backup-roll deviations were 0.012 and 0.004, with accuracy gains of 5.3% for uniform and 3.25% for mixed strip specifications. Authors also highlighted simplified thermal treatment, and incomplete adhesive and/or corrosive wear. Those limits matter as much as the accuracy.

A 2026 Frontiers review of AI in steel rolling mentions progress toward data-centered continuous optimization and control. The review also states the remaining challenges are data quality, interpretable results, and deployable solutions. For a mill, the first step is simple, but it can be valuable. Roll IDs, units, timestamps, stand coordinates, and event codes should be made consistent across all data. Predictive models can’t fill the gaps caused by inconsistent data.

The 2025 model’s sub-0.01 mm average deviation shouldn’t be viewed as an acceptance criterion. It’s a research result under specified conditions. Mills should validate predictive models against their own measurement systems, product portfolio and damage mechanisms before incorporating them into decision frameworks.

With those model limits established, the practical questions still return to component roles, evidence quality and mill-specific rules.

Frequently Asked Questions

What is the difference between a work roll and a backup roll?

Blowout Preventer (BOP): The Complete Well-Control Guide

Karry — Thu, 03 Sep 2026 05:30:18 +0000

Updated September 2026

A blowout preventer (BOP) is the last mechanical barrier between a controlled well and an uncontrolled one. Welong’s own API 16A product line, for instance, spans a working-pressure range of 2,000–15,000 psi with annular bores from 9″ to 21-1/4″ and ram bores from 7-1/16″ to 21-1/4″^†, numbers that map directly onto the API 16A pressure classes every BOP on a rig is built to. This guide covers what a blowout preventer is, how it actually works, why federal regulation is actually stricter than the industry’s own testing standard, and the single historical failure that rewrote how the oil and gas industry tests these systems.

Quick Specs

Working pressure range	2,000–15,000 psi (13.8–103.4 MPa)
Annular bore range	9″–21-1/4″
Ram bore range	7-1/16″–21-1/4″
Governing standard	API Spec 16A (drill-through equipment)
Federal pressure-test interval	Every 14 days (30 CFR 250.737)
Sour-service rating	NACE MR0175

What Is a Blowout Preventer?

A blowout preventer (BOP) is a stack of hydraulically actuated valves mounted on the wellhead that seals the wellbore when formation pressure exceeds the drilling fluid’s ability to hold it back. It sits between the rig floor and the reservoir and is built to do one job well: close fast, under pressure, without depending on anything above it still working.

Search “bop blowout preventer” and most people are trying to confirm exactly this, that BOP is simply the acronym, not a different piece of equipment. The device isn’t a single valve. It’s a blowout preventer stack: several individual preventers’ worth of engineering compressed into one assembly, typically an annular blowout preventer on top and one or more ram-type preventers below it. Each one covers a different failure mode. An annular preventer can seal around almost any shape in the hole (a drill pipe, a tool joint, or nothing at all); rams seal around a specific pipe size or, in an emergency, cut through the pipe entirely. Which combination is installed, and how it’s rated, is governed by API Spec 16A, the American Petroleum Institute’s drill-through-equipment standard (see BSEE’s standards overview for how it fits alongside API 6A and 16C) — a distinct standard from the API 6A wellhead/tree hardware sitting beneath it. Understanding the importance of a blowout preventer starts with recognizing that it’s the one component in the whole system that has to work when everything else has already gone wrong.

How a Blowout Preventer Works, From Kick to Shut-In

A blowout starts as a kick: formation fluid, oil, natural gas, or both, enters the wellbore because its pressure momentarily exceeds the hydrostatic pressure of the drilling mud column holding it back. Left unmanaged, that fluid displaces mud, reduces the column’s weight further, and the well pressure imbalance compounds, which is why response time, not just equipment quality, decides the outcome during ordinary drilling operations on any oil well.

How Does a Blowout Preventer Work?

The crew identifies the kick from a rise in mud pit volume or a change in flow-out versus flow-in, selects the correct ram or annular function from the control panel, and hydraulic pressure from a charged accumulator bank drives the sealing element closed around the pipe, or through it if a shear ram is selected. The crew then circulates heavier “kill” mud through the choke and kill lines to restore hydrostatic balance before reopening the well.

The control panel itself is normally controlled from the rig floor, giving the crew direct hands-on access to every function in the sequence above. The entire sequence works even if the rig loses primary power, accumulators store enough hydraulic energy to close the stack once without external electricity. That’s blowout preventer how it works in outline; the specific timing and pressure margins vary by stack and well, which is exactly what the sections below cover. The regulatory framework behind that function, what counts as a validated BOP control response, is set out under API Spec 16A, the drill-through-equipment validation-testing standard BSEE references for offshore operators.

Choosing Between an Annular BOP and a Ram BOP

One annular BOP element uses a single doughnut-shaped elastomer that squeezes shut around whatever is in the hole, drill pipe of any size, tool joints, or open hole. By contrast, a ram preventer uses a matched pair of steel blocks that close horizontally to a fixed diameter; it seals tighter and holds higher pressure than an annular element, but only around the pipe size it was built for. Ram types (pipe, blind, and shear) aren’t interchangeable, which is the single most common source of confusion for anyone new to reading a stack diagram. In practice the choice isn’t either/or: nearly every real API 16A stack pairs one annular (broad, lower-pressure sealing) with one or more rams (size-specific, higher-pressure sealing) rather than relying on a single type alone.

Annular vs ram BOP: sealing method, size range and typical role in a 2,000–15,000 psi API 16A stack.
Feature	Annular BOP	Ram BOP
Sealing method	Elastomer element compresses radially	Two steel blocks close horizontally
Size range sealed	Any size up to bore diameter, including open hole	One specific pipe OD per ram set (pipe/variable-bore ram) or none (blind ram)
Can cut pipe?	No	Only the shear ram, and only within its rated pipe OD/wall thickness
Typical stack position	Top of stack, first line of defense	Below the annular, in a fixed sequence
Limitation	A matched ram at that bore holds higher working pressure	Useless against a pipe OD it wasn’t built for — not universal

Can a Shear Ram Cut Any Drill Pipe?

No. Every shear ram is rated to a specific pipe outside diameter and wall thickness/grade combination; it’s a common procurement mistake to assume a shear ram is a universal cutting tool. If the string in the hole falls outside that rating (a heavier-wall drill collar, a tool joint upset, or dual-string completion tubing), the shear ram may not fully sever and seal it. Matching shear-ram rating to the string design is a selection step, not an afterthought.

Inside the BOP Stack, Components and Control System

The bop stack components, read from the top of the bop stack down, are: an annular preventer, then one or more ram preventers in a fixed order, typically a pipe ram, then a second pipe or variable-bore ram, then a blind or shear ram at the bottom, plumbed into a choke line and a kill line, run through rated choke and kill hose, that let the crew circulate under pressure once the well is shut in; the two together are often called the kill and choke lines, and they terminate at a choke manifold where flow is actually metered and controlled. None of it moves without the control unit: a hydraulic power unit, control valves, and an accumulator bank holding pressurized hydraulic fluid, sized to close every function in the stack at least once even if rig power is lost. Electrical and hydraulic lines run from the control unit to each ram and to the annular, and the casing string run in the well below the stack has to be accounted for when the crew selects which ram to close, the ram’s bore has to match the casing or drill-pipe OD actually in the hole at that depth.

BOP component type reference: every major type in a 2,000–15,000 psi API 16A stack, what it does, and where it sits.
Type	Function	Typical stack position
Annular preventer	Seals around any shape via elastomer compression	Top of stack
Pipe ram	Seals around one specific pipe OD	Upper ram position
Variable-bore ram	Seals across a narrow range of pipe ODs	Upper or middle ram position
Blind ram	Seals the wellbore with no pipe present	Lower ram position
Shear ram	Cuts the drill string and seals, within its rated OD/grade	Base of stack
Cameron-type ram	Ram mechanism per the original 1926 patent lineage	Any ram position, by manufacturer design
Hydril-type / Shaffer-type	Competing ram and annular mechanisms, same function class	Any position, by manufacturer design
Control unit / accumulator	Stores hydraulic power to close every function at least once	Adjacent to stack, rig floor or skid
Choke manifold	Meters and controls flow after shut-in	Downstream of choke/kill lines

Three API standards govern this system, and they aren’t interchangeable labels for the same thing. API Spec 6A covers the wellhead and tree hardware the stack sits on. API Spec 16A covers the drill-through equipment, the BOP stack itself, including its design validation and testing. API Spec 16C covers the choke-and-kill system that lets the crew control pressure once the well is sealed. Building a stack to spec means all three apply to different physical hardware in the same well-control chain, and conflating them is a common source of confusion when reading a quote or a spec sheet. Getting the bop configuration right before bop installation, not after crews already have to make up a bop stack on the rig floor under time pressure, is what this standards split is actually protecting against.

Where the Type Names Come From, Cameron, Hydril, Shaffer

The ram-type BOP exists because of a specific, dated invention. In 1922, James S. Abercrombie and Harry S. Cameron, who had founded Cameron Iron Works two years earlier, built a device to solve exactly the problem that made the 1901 Lucas gusher at Spindletop, Texas, run uncontrolled for over nine days and spill more than 500,000 barrels: nothing existed that could close around a drill string under pressure.

Their design, tested to withstand 3,000 psi at the time, was issued U.S. Patent 1,569,247 on January 12, 1926, and was later designated an ASME Mechanical Engineering Landmark in 2003.

“Hydril-type” and “Shaffer-type” trace to two other early manufacturers who developed competing ram and annular designs in the following decades; the names persisted as generic descriptors for the mechanism even after the companies themselves were absorbed into larger oilfield-equipment groups. Knowing the lineage matters less for buying a BOP than for reading older equipment manuals and inspection records, where a “type” designation is still how a rig crew identifies which control-system logic and ram geometry they’re working with, and, on an inherited or secondhand stack, for correctly identifying the components of a blowout preventer before assuming any two “rams” are interchangeable.

Surface vs Subsea BOP Stacks, The Deployment Decision Matrix

A surface stack sits on the wellhead at the rig floor, where the crew can see it, function-test it by hand, and reach it in minutes. By contrast, a typical subsea deepwater blowout preventer sits on the seafloor, sometimes thousands of feet below the rig, connected only through a marine riser and an electro-hydraulic control umbilical, which means every design decision has to account for the fact that nobody can walk up and manually intervene.

Surface vs subsea BOP deployment: what changes when the stack moves from the rig floor to the seafloor.
Factor	Surface stack	Subsea stack
Typical application	Land rigs, platform/jack-up wells	Floating rigs over deepwater wells
Access for manual intervention	Direct, minutes	None — ROV-only, hours at best
Control redundancy	Single control panel plus manual override	Dual control pods (electro-hydraulic multiplex) so one pod failure doesn’t strand the stack
Riser/marine connection	None	Marine riser links stack to rig; adds a failure path the surface case doesn’t have
Limitation	Not rated for the pressure/redundancy demands of deepwater columns	Higher capital cost and longer lead time; not justified for wells that don’t need it

The redundant control pods on a subsea stack exist for a simple reason: a control-system fault that would be a same-day repair on a surface rig becomes a multi-day, ROV-dependent recovery on the seafloor, so the design has to tolerate a single pod failure without losing the ability to close the well. Global offshore activity is a relevant backdrop here: one market analysis projects the blowout preventer market to grow from roughly $35.73 billion in 2025 to $37.51 billion in 2026, citing ultra-high-pressure (15,000+ psi) subsea stacks as one of the fastest-growing segments, consistent with deeper water and higher-pressure reservoirs driving demand for exactly this configuration.

BOP Testing and Maintenance, The Testing-Gap Triangle

Every BOP on a working well gets tested on a schedule, because pressure control equipment is only as good as its last verified test. What’s rarely explained is that the schedule itself has a documented gap between what the industry’s own standard requires and what federal regulation actually mandates, and that gap is a useful lens for understanding why a “tested” BOP can still fail. Blowout preventers are critical enough to well control that operating the blowout preventers correctly is treated as a distinct, auditable discipline, separate from simply owning the right hardware.

API Standard 53, the industry’s own recommended practice, specifies a 21-day pressure-test interval, per BSEE’s own research on the test-interval question. But the binding federal regulation is stricter: 30 CFR 250.737 requires a full pressure test at least every 14 days (30 days specifically for the blind shear ram), function testing of the annular and pipe/variable-bore rams every 7 days between pressure tests, and function testing of shear rams every 14 days, each pressure test held for 5 minutes on a subsea system or 3 minutes on a surface system with a recorded chart. In other words, the regulation that actually binds operators is tighter than the standard the industry wrote for itself, not the other way around, a detail that rarely makes it into a buyer’s guide.

The 3-Point Testing-Gap Triangle

A BOP compliance record can look complete while still missing the failure mode that actually matters. Three separate things have to be checked, and a program that only covers one or two of them isn’t actually “fully tested”:

Equipment function/pressure testing, the 7/14/30-day cadence above. This is the layer everyone checks, because it’s the layer that’s written into a regulation with a clear violation trigger.
Procedural/emergency-systems testing, verifying the systems that only activate in a genuine emergency (deadman/autoshear logic, backup power cutover), not just the day-to-day functions crews exercise routinely.
Escalation-authority review, whether the crew and management chain actually has a tested, rehearsed path to authorize and execute a shut-in decision under pressure, not just equipment that’s capable of it.

How Do I Choose the Correct BOP Pressure Rating?

Size the rated working pressure to the well’s maximum anticipated surface pressure, not just the BOP’s own nameplate rating, a distinction API Standard 53’s fifth edition (2020) reportedly made when it shifted the basis of BOP requirements from equipment-rated to well-specific anticipated surface pressure. A stack rated for 10,000 psi on a well whose kick tolerance could realistically produce a higher surface pressure is undersized on paper, even if it passes every routine function test.

The Testing-Gap Triangle isn’t a hypothetical framework. It’s a direct reading of the best-documented BOP failure in history, covered next, where layer 1 was in place and layers 2 and 3 weren’t.

When BOPs Fail, The Deepwater Horizon Lesson

On April 20, 2010, the Deepwater Horizon’s blowout preventer failed to seal the Macondo well, leading to an uncontrolled release of crude oil and a sustained flow of oil and gas into the Gulf of Mexico. The U.S. Chemical Safety Board’s final report found a specific, narrow technical cause: an unrecognized pipe-buckling phenomenon during the emergency well-control effort, a failure of the bop that turned a well-control incident into the worst offshore spill in U.S. history.

That single mechanical finding gets most of the attention, but the CSB’s broader conclusion is the one that maps directly onto the Testing-Gap Triangle: Deepwater Horizon personnel did regularly test the day-to-day BOP components needed for drilling, layer 1 was functioning, but neither Transocean nor BP had regularly inspected or tested the BOP’s emergency systems, and the CSB’s recommendation was for API to revise Standard 53 for organizational and testing reasons, not purely a hardware fix.

The industry’s response bears that out. Following the Macondo blind-shear-ram failure, regulators mandated a second blind shear ram on subsea stacks for redundancy, where a single blind shear ram had stood before; stack weights grew from roughly 325 tons to 450-plus metric tons to accommodate the added accumulator capacity a second shear ram demands; and API Standard 53 maintenance shifted from guidance to an enforced requirement that a BOP control system be broken down and rebuilt on a 5-year cycle. Reported revenue efficiency improved from around 95% in 2014 to 98–99% in recent reporting, a real, measurable gain.

What hasn’t changed is more instructive. One decade after Macondo, more fundamentally different BOP designs, all-electric actuation instead of hydraulic, for instance, have been proposed but, per SPE’s Journal of Petroleum Technology, none has been tested on a working drilling rig. The barrier isn’t unresolved engineering; it’s economic and behavioral. As ESD CEO John Dale has put it, manufacturers’ service revenue is built on hydraulic parts and maintenance, not one-time hardware sales, which blunts the incentive to obsolete that revenue stream, a notable admission from an executive whose own company sells an all-electric alternative; and operators are reluctant to be first to deploy an unproven control architecture.

“Consequences of failure are very high.”

Darrell Pelley, Transocean, on why operators hesitate to be first to deploy an unproven BOP control architecture (quoted in SPE’s Journal of Petroleum Technology)

That’s a genuinely counter-intuitive finding: the constraint on the next generation of well-control equipment is less about what engineers can build than about who’s willing to be the first to run it.

⚠ When a BOP Is Not Enough

A BOP is the last mechanical barrier, not the only one. It can’t compensate for a kick that goes undetected because a crew misreads mud-return anomalies as “ballooning” — a real, documented misdiagnosis pattern where crews pattern-match a kick to a prior well’s behavior instead of confirming it with fingerprinting or flow analysis. Nor can it substitute for the primary barrier: correctly weighted drilling fluid. Even a BOP that closes correctly on a well where the kick was misdiagnosed for hours beforehand is still closing too late to prevent the underlying loss of control that made the closure necessary in the first place, the release of oil or gas at that point is a consequence of the delay, not of the hardware.

Who Is Qualified to Test and Operate a BOP

The federal regulatory floor is lower here than most buyers assume. 30 CFR 250.1505 doesn’t name IWCF, IADC, or any specific certifying body as legally mandatory, it requires only that personnel training come from a source that meets the operator’s own approved training plan. That floor applies the same way regardless of whether the well is a gas or an oil drilling site; the regulation doesn’t set a different bar by hydrocarbon type.

In practice, the industry has converged on a de-facto standard anyway: most operators require IWCF certification or an equivalent as a contractual hiring bar even though no federal rule compels it directly, which means “certified” on a resume is an operator requirement, not strictly a legal one. For the full IWCF Level 2 through Level 4 hour and validity breakdown, see our Wellhead & Well Control guide; the requirement is worth confirming against the specific operator’s own training plan rather than assuming it’s interchangeable across employers.

BOP Standards at a Glance

Three API specifications get cited interchangeably in casual conversation but govern different equipment: API 6A (wellhead and tree equipment), API 16A (the BOP stack itself, drill-through equipment and its validation testing), and API 16C (the choke-and-kill system). Look inside BOP procurement paperwork and expect all three standards to appear on different line items; a ram blowout preventer or annular blowout preventer uses API 16A, a full blowout preventer control system references API 16D, and the surrounding wellhead hardware sits under API 6A; different BOP components are simply not certified under one blanket document, on oil and gas wells anywhere in the world.

Integration & Utility Requirements

Hydraulic power unit	Sized to close every stack function at least once on accumulator reserve alone, independent of rig power
Control-line routing	Choke and kill lines rated to the same working pressure as the stack, not a lower “convenience” rating
Governing spec at RFQ stage	Confirm API 16A pressure class, bore size, and NACE MR0175 sour rating against the well’s own kick-tolerance data before quoting

For teams ready to move from understanding these standards to specifying hardware against them, Welong’s API 16A BOP product line lists the annular and ram configurations, pressure classes, and Cameron/Hydril/Shaffer-type compatibility referenced throughout this guide, along with the procurement documentation each order requires.

Frequently Asked Questions

Q: What Is a BOP Stack?

A BOP stack is the full assembly of preventers, typically an annular preventer plus multiple ram-type preventers, installed together on the wellhead, along with the choke and kill lines and the control system that operates them.

Wellhead & Well Control: How the Equipment, Procedures, and Certification System Fit Together

Karry — Wed, 02 Sep 2026 14:40:17 +0000

Updated August 2026

Wellhead & Well Control refers to two related but distinct things: the physical pressure-containing hardware stack at the top of a well, and the discipline that keeps that hardware from ever losing control of the well. A wellhead is the physical, pressure-containing hardware stack at the top of an oil well. Wellhead control — the umbrella term for the pressure-control equipment and the discipline that keeps it working — covers procedures, equipment redundancy, training, and regulation that keep that hardware from ever losing containment of a hydrocarbon influx of oil, gas, or water. Both terms get used almost interchangeably in casual conversation, but they answer different questions: an engineer sourcing wellhead systems and production equipment asks “what hardware is rated for this pressure?”; a well control specialist asks “what happens in the ninety seconds after a kick is detected?”, a discipline OSHA’s own drilling oil and gas eTool treats as a distinct safety topic from the wellhead hardware itself. This guide covers both, and — deliberately — goes further than a product catalog: it covers the well control training system crews actually need, who is legally and financially responsible when control fails, and what the historical record shows about how well control actually fails in practice across onshore and offshore well operations, from exploration through production. If you came here looking for a wellhead and well control PDF to save or print, everything below is organized the same way a good summary sheet would be — by hardware, certification, and compliance, so you can pull whichever section you need.

Quick Specs

Wellhead pressure rating range	2,000-15,000 psi across API material classes AA-FF
Governing hardware standards	API Spec 6A (wellhead/tree), API Spec 16A (BOP), API Spec 16C (choke & kill)
IWCF certification levels	Level 2 (well-site), Level 3 (Driller), Level 4 (Supervisor)
Control-of-Well insurance	$5,000-$11,000 minimum premium; often JOA-required

What Wellhead and Well Control Actually Mean — and How They Differ

A wellhead is structural, pressure-containing equipment — the casing head, tubing head, and Christmas tree that physically seal and support a well. Well control is procedural and organizational: hydrostatic mud weight, mechanical barriers, trained personnel, and regulation that keep an unplanned influx from becoming an uncontrolled blowout — a distinct enough discipline that OSHA’s oil and gas drilling eTool treats it as its own safety topic, separate from wellhead hardware. You need both.

A wellhead unsupported by any well control discipline is just a pressure vessel with nobody watching the gauges; a well control program with no properly rated wellhead has nothing to actually seal against.

There’s a third, much less related meaning worth flagging early, since it causes true confusion in this space: “well control” is also the name of a specific for-profit training company (well control.com) and appears inside the name of “Control-of-Well insurance,” a financial product. None of the three are interchangeable, and confusing them leads buyers to search for the wrong thing. We call this the Well Control Name Collision, and it’s worth understanding before you go further, because it shows up again when crews are shopping for certification (H2-6) and when someone asks who’s financially on the hook if control fails (H2-7).

How Well Control Actually Works, Stage by Stage

Well control is the umbrella that covers every operation of a well that extends from the first motion of the bit to the permanent plugging of the well; it is not a one-does-it-all type of mechanism, blow-out prevention on a drilling rig is a three layer structure, and it is the three layers working in conjunction that are the key, rather than any specific one. The industry frames it in three phases:

Main-barrier-Hydrostatic control exerted by the density (or “weight”) of the drilling fluid (mud column) in wellbore above formation pressures, designed to control pressure throughout the wellbore and prevent formation influx. Main control is the inherent first barrier and the only barrier in effect during normal drilling, and all the surface control team does is pressure monitoring at surface — measuring annular pressure and pit volumes to verify adequate pressure integrity.
Secondary control: It is also mechanical, not preventive in the literal sense — it is the blowout preventer (BOP) stack, part of the well control system engaged only when primary control has already failed and a kick has entered the wellbore, and the specific hardware federal regulation requires operators to pressure-test on a periodic basis. It is the response to a failure, not a substitute for good mud-weight management or a sound cement job at the casing shoe.
Tertiary control – Relief wells dug by a secondary group of drilling rigs and the final, last resort attempts at control – not often actually implemented but it is the ‘dealbreaker’ situation everyone prays to avoid

They are eventually guarding the same thing, well integrity — verifying that the casing, cement and wellhead hardware collectively are still holding pressure as intended; a program can meet every certification in H2-6 below and still be at genuine risk without a separately ensured well integrity assurance.

Per OSHA’s oil and gas drilling eTool, initial detection of a kick is based on observing pit gain (the mud returned to the surface flows more quickly than it can be pumped in) and flow rate anomalies (the flow rate at surface jumps for no apparent reason) both indicators that formation fluid is flowing into the well bore quicker than the mud column can hold it back. After establishing a kick condition, the crew often selects one of two possible methods of circulation in order to neutralize the kick —driller’s method of circulating out the kick first then circulating in the heavier kill mud in a second pass versus wait-and-weight where the heavier mud is weighted up before circulating out the kick and the heavier mud all at once. The driller’s method is faster to start and easier to perform under duress but wait-and-weight usually applies less overall pressure to the wellbore and casing shoe over the entire circulating bottom kill operation which is more important on deep or marginal wells.

We will call one more limit to this three-tiered blowout prevention model: it is a response model, not a model describing how control degrades exactly. For Chemical Safety Board investigators in their Macondo investigation, in other words, they saw well control as a system of interdependent technical and organizational impediments — equipment, testing, crew choices, etc. — degrading in concert, not three separate, failing, tripwires (see H2-8 on the more complete model).

The Physical Hardware Stack — Casing Head, Tubing Head, and Christmas Tree

Wellhead hardware builds up in a set order, with each joint being a rated fitting, not an improvised one. At the bottom, the casing head sits and seals the outermost surface casing string and gives a base for the rest of the stack to bolt onto. Above it, the tubing head holds and seals the production tubing string, separating the annulus from the tubing bore.

The Christmas tree caps the well — it is the visible assembly of valves and surface safety valves at a surface wellhead: the master valve is at the bottom of the stack, just above the tubing head, and acts as the main shut-off. Wing valves branch out partway up the tree to control flow to the production flowline. The swab valve sits at the top and allows access for wireline work. Many trees also include a surface-controlled safety valve below the tree for emergency shutdown.

As completion operations move the well from the casing and tubing head to the production tree, each family of drilling and production equipment ships to a set of rules called API 6A, which is part of federal offshore rules. In most cases, wellhead parts are rated from 2,000 to 15,000 psi across API material classes AA to FF — a working range, not the full envelope the specification itself permits (API 6A’s own scope extends further, including higher classes). The class is chosen based on the temperature and whether the well has H2S gas, not just pressure. For the full spec-stack tables behind those numbers, see the casing and tubing head specifications and Christmas tree specifications pages.

For a wellhead offshore, the same rules about casing-head, tubing-head, and tree apply below a riser and BOP stack as they do at a surface well. The types of parts and the main standards do not change. But getting to the parts for tests and repairs is different, which is why offshore well control plans need more regular checks than those on land. Knowing the different types of wellhead setups — surface, subsea, and platform-mounted — is more about planning how to reach and test the parts than about how they handle pressure. The pressure part is still guided by the same API 6A rules no matter where the stack sits.

In section H-2 to find reference table and chart with equipment such as casing head, tubing heads, the tree, the BOP and kill/choke hardware listed by their related governing API specifications side-by-side to assist further with understanding to your and your own BSEE specified requirements.

Annular vs Ram BOP — What Each Actually Does

A blowout preventer stack is not just one device — it is usually a set of devices, because each type does a different job and none of them alone can handle every scenario. API Spec 16A — the standard for drill-through equipment — covers the main well-control BOP validation testing, distinct from the wellhead and tree equipment covered by API 6A, per BSEE’s own Standards Development Section. BSEE includes over 125 industry standards by reference into its rules this way, reviewing each roughly every five years. Equipment validation is not the same layer as field performance, though: BSEE separately incorporates API Standard 53, which sets the installation, testing, and maintenance requirements for a BOP system and its choke-manifold components once the equipment is actually on the rig — the standard that governs the periodic pressure-testing schedule described below, not API 16A itself. Like the wellhead it sits above, a BOP stack’s own working-pressure rating falls within that same 2,000-15,000 psi API class range, since the two must match for the assembly to hold pressure as a unit.

Annular BOP

Seals around any shape or size of pipe using a rubber packing element
Usually the first device closed on a kick — fastest to actuate, tolerant of tool joints passing through
Not designed to hold full rated pressure indefinitely — a bridge to getting a ram closed
Single unit typically sits at the top of the stack

Ram BOPs (pipe / shear / variable)

Steel rams close around a specific pipe size (pipe ram) or cut through pipe entirely (shear ram)
Rated to hold full working pressure for extended periods once closed
Variable-bore rams close on a range of pipe diameters, trading some sealing margin for flexibility
Multiple rams stack below the annular, each with a distinct job

Testing of the BOP is where theory and daily work meet: BSEE’s rules for offshore wells require pressure testing of BOP parts to be done regularly while drilling, not just when the BOP is first put in. This testing rule exists because a BOP that passed tests months ago is not the same as one that works today — a point made unavoidably clear during the Macondo spill investigation. See the full blowout preventer specifications page for rated pressures and configuration options across this product family.

What the Choke & Kill Manifold Does During a Well Control Event

Per OSHA’s oil and gas drilling eTool, after the BOPs have closed in around an oil well, this choke manifold–along with the kill line as a choke and kill manifold–is used by personnel to bring the situation back under control rather than just passively shut in; a drill string within the shut-in system would receive pressurized, weighted mud through its kill line and then return fluid would circulate through the choke line where controlled bleed-off of back-pressure was introduced.

Mistiming the choke opening – too open causes a pressure bleed-off and a potential second kick, while too closed can result in spikes downhole and on the surface – is the primary reason that using the choke valve is a procedural task that must be learned, not just a procedure to manually adjust a valve. Because the BOP’s own rams are actuated by hydraulic fluid under pressure, there is a functional hydraulic power unit in support of the entire well-close-and-circulation sequence, operating behind both the choke and kill manifold and their lines, too. Coiled tubing workovers and servicing jobs on individual wells use their own less extensive pressure control equipment system.

API Spec 16C – Specification for Choke and Kill Systems is for surface and subsurface equipment in use on a choke-and-kill setup alone, separate from either the bop (API 16A) or the wellhead/tree assembly (API 6A). It is a separate family of equipment with its own specs in addition to the others, not a derivative class of the BOP, nor merely the label used for a different definition of “the pressure control stuff” — and like the BOP and wellhead it connects to, its own hardware is rated within that same 2,000-15,000 psi API pressure-class band, not a separate scale. MPD is, in effect, the equivalent of that same kind of choke management on more sophisticated levels-closed system of returning the returns, etc.-to maintain the bottomhole pressure, at any rate at a tighter window or envelope than is permissible with a standard choke – and is usually encountered only with narrow margins or with depleted reservoir conditions when a standard approach would have little to no margin for error at all.

Well Control Certification — IWCF/IADC WellSharp Levels 2-4 (Sourced Table) vs What BSEE Actually Requires

Of the certification providers that you’ll hear referred to in this space, the IWCF is likely the most mentioned, and their own programme page lays out a true level-by-level system rather than one generalized piece of paper. The IADC WellSharp programme would generally run on much the same scale of time, somewhere in the vicinity of 24 hours of classroom time plus a separate 3 hour examination period. IWCF’s combined drilling(surface)-and subsea(water)-based examinations will take up somewhat even more of your time as well – more in the order of 2 hours 45 minutes on their Level 4 supervision.

IWCF Drilling Well Control Programme — certification levels
Level	Recommended for	Minimum duration	Assessment	Certificate validity
Level 2	Well-site positions whose action/inaction directly influences well control assurance	20 hours	Two theory assessments, 70% minimum pass mark each	5 years
Level 3	Equipment operators who perform actions to prevent or respond to well control incidents (assessed as Driller)	32 hours	Two theory assessments + one practical simulator assessment, 70% minimum pass mark	2 years
Level 4	Supervisors who oversee that correct actions are carried out (assessed as Supervisor)	32 hours	Two theory assessments + one practical simulator assessment, 70% minimum pass mark	2 years

What’s it that’s easy to assume — and false — is that a particular certification like IWCF or IADC WellSharp is precisely what 30 CFR 250.1505 spells out as what’s required under federal regulation: it isn’t. It’s just that 30 CFR 250.1505, the set of rules for US operators working offshore, says what’s required in a deliberately vague way: You can train yourself or send your guys anywhere that meets the rules of your training plan. IWCF/IADC WellSharp have just emerged as what you as a company can reasonably say will meet the standard in practice. This is an important distinction: certification and compliance are two different questions, and assuming they’re one and the same is a common (and expensive) trap for a company creating a training program. All of the IWCF levels share a 70% pass minimum, so the real variable in your planning is how long each course is and what role they prepare for, not how hard the assessment is.

Who Is Responsible for Well Control — Four Non-Overlapping Regimes: BSEE, OSHA’s Limited Role, JOA Insurance, and Voluntary Certification

Responsibility for well control is actually four entirely different sets of rules and organizations — federal BSEE regulation, OSHA’s much narrower role, privately insured joint operating agreements, and voluntary certification — which do not coalesce into a single well-control law. This fourway division is what is happening in practice as the Well Control Name Collision: try searching “who is responsible for well control” expecting there to be one answer, and you will find four.

All four are ultimately aimed at protecting the safety of personnel and operational safety and efficiency, but each enforces compliance with industry standards through very different regulations:

BSEE (federal offshore regulation) — the Bureau of Safety and Environmental Enforcement regulates well control on the US Outer Continental Shelf under 30 CFR Part 250, including the BOP testing schedule (H2-4) and training-plan requirements (H2-6). Federal jurisdiction only for offshore-drilling activities. Two adjacent jurisdictions are easy to assume away: onshore and Indian-lease wells fall under a separate Bureau of Land Management well-control regime (43 CFR 3172.6) with its own BOP-class and choke/kill-line equipment tables, not BSEE’s Title 30 rules; and for coastal spill response, BSEE and the U.S. Coast Guard operate under a standing memorandum of agreement, with BSEE leading source control and the USCG leading discharge removal and shoreline response.
OSHA — a genuinely narrower scope of regulation than many realize — is two things: a major set of workplace rules and a federal regulator, and a narrower set of rules for the oilfield industry. OSHA’s flagship Process Safety Management (29 CFR 1910.119) explicitly recognizes that oil and gas well drilling and well-servicing operations on a gas well or oil well are not covered in scope; OSHA’s own enforcement directive (which is nonetheless the current official interpretation of the rule unchanged on osha.gov) notes that “is intended to cover all drilling operations and any well servicing operation including acidizing”. That means that for drill and workover scope, OSHA is not a parallel set of rules with BSEE; instead OSHA is quite a bit narrower in scope, limited instead to the General Duty Clause, most of the general industry rules, and not much more.
Control of Well insurance — not a government-regulated product but a private contract — a much more concrete version of the third definition of “well control” (H2-1). It is real insurance coverage, which you can purchase; minimum premiums tend to be in the range of $5,000-$11,000 with deductibles in the range of $25,000-$150,000, and policy limits are available in a range from the low millions to hundreds of millions depending on the deal rather than fixed at a set industry-standard number. Statutorily no one is required to carry it (though many companies voluntarily do so), but working-interest partners will often include it as a requirement for drilling with other partners (doing the job of a law).
IWCF/IADC WellSharp – an optional international industry certification, not government-required law (H2-6) – is often what is most frequently used by the industry, or suggested by insurers or by operators’ own planned training programs.

Treat BSEE’s training-plan requirement and IWCF/IADC certification as related but separate compliance questions
Confirm whether your JOA contractually requires Control-of-Well insurance before assuming it is optional
Ask which specific regime (BSEE, insurer, or a named certification) a claim about “well control requirements” is actually describing
Check API material class (AA-FF) against your actual service conditions, not just working pressure

Do not

Assume OSHA runs a full parallel well-control code alongside BSEE for drilling and servicing operations — it is exempted by name
Assume an API material class like “AA” or “FF” alone tells you whether equipment resists a specific corrosive environment — the class governs material/mechanical properties, not a blanket corrosion guarantee
Treat “Control-of-Well insurance,” “well control equipment,” and “Well Control School” (a specific training company brand) as the same thing when researching this topic
Assume a named certification is what the regulation itself legally requires — check the training-plan language directly

When Well Control Fails — Macondo’s Technical AND Organizational Lessons

The most detailed, publicly documented investigation into a well-control failure is the U.S. Chemical Safety Board’s independent investigation of the April 20, 2010 blowout of the Deepwater Horizon well at Macondo, whose blowout-preventer failure mechanism was later defined as “effective compression.”

Drilled at nearly 5,000 feet of water approximately 50 miles off the coast of Louisiana, the blowout killed 11 personnel on board, injured another 17, took out the offshore platform 2 days later, and continued its uncontrolled release of fluid and natural gas for 87 days, until well intervention finally brought it under control .

A sharp pressure differential between the inside and outside of the drill pipe within the BOP resulted in compression and off-centering, hindering the blind shear ram’s ability to form an adequate seal during the incident. In addition, the report highlighted instances in which miswiring of the BOP’s redundant hydraulic control system “blue pod” or “yellow pod” each were combined with a simultaneous battery failure. Investigators also concluded that the BOP lacked sufficient capacity to shear and seal the 6-5/8 inch drill string for much of the operations conducted at Macondo.

But equipment failure comprises just one of the two aspects that the CSB highlighted, and it is generally the half that gains much of the repeated attention. However, the organizational dimension of equipment failure could perhaps be of far greater importance to any who operate a well-control program. The CSB found that although equipment that was in regular use and inspection on the rig, such as daily tests of BOP seals and wear on rubberizers and BOP rams, was in working condition, neither Transocean nor BP ever conducted formal or scheduled periodic testing of the BOP emergency functions in response to or even outside potential scenarios where they might be called upon. Simply put, the primary means of emergency shutdown had never been tested to know whether or not it would indeed function when the emergency was most desperately needed.

“The two-volume report we are releasing today makes clear why the current offshore safety framework needs to be further strengthened.” — Dr. Rafael Moure-Eraso, Chairperson, U.S. Chemical Safety Board

Perhaps most pertinently, the recommendations provided to the American Petroleum Institute, which were announced alongside the report’s preliminary findings on June 5, 2014, address these two aspects by asking API to add more thorough testing requirements of BOP emergency systems as an update to API Standard 53 (an “organizational and testing regime” fix, rather than one based entirely on equipment redesign).

So if your goal is to maintain a functioning well-control program, the lesson to be derived is not to “buy a heavier-duty piece of equipment.” Instead, realize and adhere to the idea that there exist both independent equipment reliability and independent inspection discipline, and a system that attends to one while neglecting and not rigorously checking and validating the other will always be inherently higher risk than it appears based on its equipment specifications alone.

The Well Control Readiness Checklist

By pulling the hardware (H2-3/4/5), certification (H2-6), and compliance (H2-7) sections together, here is what *really* gets onto a defensible pre-op review-the Well Control Readiness Checklist we would use before signing off on a job that the well control is truly ready, not just theoretically present. None of these checks are set-and-forget: certificates lapse after 2-5 years and BOP testing runs on its own periodic clock, so a crew that was ready at spud is not automatically ready months later.

Key takeaway

A well control setup is not “ready” because the equipment is rated correctly — it is ready when hardware certification, BOP testing cadence, crew IWCF/IADC level, and Control-of-Well insurance status have all been verified independently, because each is a genuinely separate failure point.

Well Control Readiness Checklist — verify each item independently, not as one bundled sign-off
#	Item to verify	Governing reference	How to verify
1	Casing head / tubing head / tree pressure rating vs actual service conditions	API Spec 6A	Manufacturer’s test certificate + material class (AA-FF)
2	BOP validation testing current	API Spec 16A	Third-party validation test record, not just acceptance test
3	BOP pressure test cadence during drilling met, not just initial install	30 CFR 250.737	Periodic test log reviewed against the required interval
4	Redundant BOP control systems (blue pod / yellow pod equivalents) independently tested	API Std 53	Documented latent-failure test, not day-to-day operational test alone
5	Choke and kill manifold rated and function-tested	API Spec 16C	Function test record on the specific manifold in service
6	Crew IWCF/IADC WellSharp level matches assigned role (Driller vs Supervisor)	IWCF Level 2/3/4	Current certificate, not expired (5-year for Level 2, 2-year for Level 3/4)
7	Training plan satisfies BSEE’s approval requirement, independent of which certifier issued it	30 CFR 250.1505	Written training plan reviewed against operator’s approved scope
8	Control-of-Well insurance status confirmed against JOA obligations	JOA contract terms	Certificate of insurance cross-checked against JOA-required limit
9	Kick-detection monitoring (pit gain / flow rate) instrumentation functioning and monitored	Rig operating procedure	Instrument calibration log + crew shift-handover confirmation

Now for the hardware families underlying it all and the standards that apply-useful if you are auditing items 1 through 5 above against a spec sheet, and also if you want to check item 3’s periodic BOP testing against your company’s log — it is the same equipment, organized by governing standard.

Well control equipment families and their governing API/BSEE standard
Equipment	Family	Governing standard
Casing head	Wellhead / tree	API Spec 6A
Tubing head	Wellhead / tree	API Spec 6A
Master valve	Wellhead / tree	API Spec 6A
Wing valve	Wellhead / tree	API Spec 6A
Annular BOP	Drill-through / BOP	API Spec 16A
Ram BOP (pipe / shear / variable)	Drill-through / BOP	API Spec 16A
BOP control pods / redundant systems	BOP control	API Spec 16D
BOP field performance / periodic testing	BOP field performance	API Std 53
Choke & kill manifold	Choke & kill	API Spec 16C

Ready to see what this translates into a real hardware stack?

Head over to our wellhead and well control equipment page, which covers the full product family, spec stack, and procurement info this guide is explicitly designed to avoid duplicating. Save or bookmark this page and leave the discipline reference (certification, regulations, insurance) out of your spec sheet shopping process.

FAQ

Q: What is the difference between a wellhead and a well?

A wellhead is the pressure-containing equipment stack at surface; a well is the entire drilled bore, from surface all the way down to the producing reservoir, that the wellhead sits on top of and seals.

How Hole Openers Work: Types, Selection, Operation, and Troubleshooting

Cherry — Tue, 04 Aug 2026 07:46:29 +0000

Updated August 2026

A hole opener is a drilling tool used to increase the diameter of a pilot bore or an existing drilled interval. Although the simple definition is useful, it doesn’t select a cutting structure, determine a pass plan, or set an operating limit. Those decisions depend on the formation, starting bore, target geometry, bottom-hole assembly, rig capacity, circulation program, and the actual tool documentation.

Direct answer: A hole opener is a drilling tool used to increase the diameter of an existing hole. It combines guidance, a cutting structure, and fluid paths for removing cuttings. Selection and operating limits must be verified for the specific tool, BHA, rig, formation, and drilling program.

What this guide helps you decide

Whether the job calls for a fixed hole opener, another reaming tool, or an expandable underreamer.
Which five inputs must be known before cutter or body design is compared.
Why pass count and operating parameters can’t be copied from a universal rule of thumb.
How to connect low penetration, torque spikes, vibration, poor cleaning, and wear to an ordered check.

What Is a Hole Opener, and What Is It Used For?

Hole openers increase the diameter of a bore that already has a pilot or smaller drilled section. IADC’s DDR Plus terminology describes it as a drill bit used for enlarging the hole. In oil and gas drilling operations, the enlarged interval can provide clearance for later drilling or casing installation. In horizontal directional drilling (HDD), the enlarged bore can prepare a path for product installation. Applications change, but the enlargement function remains the anchor.

What is a hole opener used for?

However, a hole opener does not remove the requirement for you to specify an entry bore. An under-gauge, unstable, poorly cleaned, or more tortuous pilot changes guidance, loading, and cuttings transport. It’s also not automatically a cure for poor hole geometry or hole quality: an AADE case analysis found that backreaming and hole enlargement didn’t reliably reduce measured tortuosity in the reviewed wells.

Function boundary: what a hole opener does and does not establish
It does	It does not prove by itself
Enlarge a known starting diameter	That the pilot is stable, clean, or on gauge
Apply a defined cutting structure at a larger radius	That one cutter type fits every layer in the interval
Provide fluid paths around the cutting area	That the rig and fluid program can transport the additional solids

How Does a Hole Opener Enlarge a Pilot Bore?

Hole opening is a coupled process, not just a larger cutter sweeping through rock. Within the assembly, the pilot or guide establishes the borehole path; the cutting structure engages material outside the starting diameter; the BHA transmits rotation and load; and circulating fluid must remove the extra cuttings without allowing them to be repeatedly ground or packed around the assembly.

How do hole openers work?

Enter and center. During entry, the assembly follows the pilot or existing bore. Guidance condition and BHA stabilization influence how evenly the cutters engage.
Share the load. Pilot, conditioning, or reaming elements take their assigned portion of the cut. An imbalance can show up as uneven wear, torque variation, or vibration.
Break or shear the formation. Roller cutters crush and chip; fixed cutters shear. Real response depends on strength, abrasivity, impact, interbeds, and confinement.
Clear the cutting face. Fluid cools and cleans the cutters and transports solids through the enlarged annulus. Even a clean pilot-hole program may become inadequate after diameter increases.

In 2025, a peer-reviewed reamer dynamics study modeled the interaction among drill string, reamer, wellbore, stabilizer, and operating variables. Its numerical results belong to that configuration, but its broader lesson transfers: vibration is a system response. One surface signal rarely identifies one cause without the rest of the operating record.

Working principle in one sentence

A hole opener must remain guided, distribute load across its cutting structure, and remove the extra solids at the same time; a weakness in any one of those functions can appear as a drilling-performance problem.

Main Hole Opener Types and Cutting Structures

Tool names vary by sector and manufacturer, so compare cutting action and service implications before comparing labels. Formation strength alone is not enough. Abrasivity, broken rock, hard stringers, impact, directional changes, cleaning capacity, available load, tool-body alloy, expected tool life, and repair strategy can reverse a catalog-level choice.

Cutting-structure tendencies require tool-specific confirmation
Family	Cutting action	Useful fit question	Limitation / inspection focus
Milled-tooth roller cone	Rolling cutters crush, gouge, and chip with steel teeth	Does the formation allow tooth penetration without destructive impact or rapid erosion?	Inspect tooth loss, erosion, bearing condition, and cone movement.
TCI roller cone	Crushing and chipping through tungsten-carbide inserts	Which insert shape and grade match strength, abrasivity, and impact?	Inspect cracked or missing inserts, gauge wear, sealed bearing condition where applicable, and retention.
PDC hole openers / fixed cutter	Continuous shearing with fixed cutters	Is the formation sufficiently drillable and stable for the cutter exposure and operating envelope?	Watch for cutter chipping, thermal damage, balling, imbalance, and gauge-pad wear.
Replaceable cutter assembly	Depends on installed cone or cutter module	Can worn elements be replaced and documented without compromising alignment or retention?	Verify fasteners, retention, seating surfaces, records, and post-repair gauge.

Use a formation-based cutter type advisor to organize questions, not to bypass engineering review. Formation names such as shale, limestone, or granite can still hide changes in strength, abrasivity, fractures, pressure, and interbeds.

Hole Opener vs Reamer vs Underreamer: Where Is the Boundary?

In common use, a hole opener describes a fixed-diameter tool whose main job is to enlarge an existing bore. A reamer may enlarge, condition, smooth, or maintain gauge depending on the drilling sector. Underreaming normally uses cutters that deploy below a restriction and retract for retrieval. Those statements are useful defaults, not universal naming laws. Compare the task, placement, geometry, and retrieval path before relying on the product label.

What is the difference between a hole opener and a reamer?

Tool-Family Boundary Table
Comparison field	Fixed hole opener	Reamer	Expandable underreamer
Primary purpose	Deliberate diameter increase	Conditioning, gauge maintenance, or enlargement	Enlargement below a restriction
Geometry	Fixed cutting diameter	Often fixed; sector-dependent	Deployable and retractable cutters
Retrieval question	Requires a compatible open path	Depends on body diameter and placement	Retracts through the restriction
Common ambiguity	Sometimes called a rock reamer	Can describe several distinct jobs	May be grouped broadly as hole-enlargement equipment

For a deeper fixed-versus-expandable check, use the hole opener versus underreamer decision guide. If the uncertainty includes gauge conditioning and stabilization, review the roller reamer, hole opener, and stabilizer comparison.

The 5-Input Hole Opener Selection Check

Start with the job, not the catalog. Five inputs create a common brief for drilling engineering, operations, procurement, and the tool supplier. If one row is unresolved, state the gap and its owner instead of hiding it inside a model recommendation.

The 5-Input Hole Opener Selection Check plus four release checks
Input category	Evidence to provide	What it changes	Do not assume
1. Formation profile	Lithology, strength range, abrasivity, fractures, interbeds, offsets	Cutting action, exposure, impact tolerance, wear plan	One rock name predicts the whole interval
2. Starting bore	Measured diameter in in. or mm, interval length in ft or m, trajectory, cleaning record, restrictions	Guidance, centering, load sharing, retrieval risk	The pilot is on gauge and smooth
3. Target and pass plan	Required final clearance, interval length, stage diameters, acceptance method	Body size, cutter work, solids volume, trip count	One enlargement ratio fits every job
4. Rig and BHA limits	Connection, torque in N·m or lbf·ft, load in kN or lbf, rotation in rpm, stabilization and spacing	Tool compatibility and approved operating envelope	The tool rating alone is the system limit
5. Circulation plan	Flow in L/min or gpm, pressure in bar or psi, fluid properties, returns and solids handling	Cutter cleaning, cooling, transport, pack-off exposure	Pilot-hole hydraulics remain adequate
Release check: placement	BHA drawing, tool order, spacing in mm or in., restriction and retrieval path	Load sharing, stability, access through restrictions	A correct tool can be placed anywhere in the BHA
Release check: connection	Connection identity, make-up procedure, inspection and traceability records	Assembly integrity and reactive-torque margin	Nominal thread labels prove compatibility
Release check: inspection	Pre-run gauge, cutter, bearing, body, jet and retention disposition	Run readiness and post-run comparison	Visual appearance replaces acceptance criteria
Release check: documents	Configuration drawing, controlled manual, limits, certificates and approval owner	Which claim is verified and who can release the run	A standard number covers the complete tool

Unit-control example, not operating guidance: 26 in. equals 660.4 mm; 50 ft equals 15.24 m; 1,000 gpm is about 3,785 L/min; 3,000 psi is about 207 bar; and 20,000 lbf is about 89 kN. This QA check confirms 8.5 in. equals 215.9 mm, 10 in. equals 254 mm, 12.25 in. equals 311.2 mm, 14 in. equals 355.6 mm, 16 in. equals 406.4 mm, 17.5 in. equals 444.5 mm, 18 in. is 457.2 mm, 20 in. is 508 mm, 22 in. is 558.8 mm, 24 in. is 609.6 mm, 26 in. is 660.4 mm, 28 in. is 711.2 mm, 30 in. corresponds to 762 mm, 32 in. corresponds to 812.8 mm, 34 in. corresponds to 863.6 mm, 36 in. corresponds to 914.4 mm, 40 in. corresponds to 1,016 mm, and 42 in. corresponds to 1,066.8 mm. A controlled schedule should name one master unit, show any conversion, and prevent a copied number from losing its context.

This table is a gate, not an automated selector. Trenchless tooling guidance likewise connects geology, rig compatibility, maintenance, and fluid practice rather than promising one universal life result. After the five inputs are fixed, you can compare hole opener models and specifications without shifting the educational guide into a duplicate product page.

Have the five inputs, but an unresolved interface?

Use the checklist in your technical discussion. Its goal is to expose missing evidence before a configuration is quoted. Bring the starting bore, target diameter, formation profile, rig/BHA limits, circulation plan, and the source document that controls each operating limit.

Discuss the Selection Inputs

How to Plan Diameter and Enlargement Passes

Pass planning begins with the final functional clearance and works backward through the starting bore, formation response, rig/BHA limits, cleaning capacity, and tool availability. A larger step concentrates more cutting work and solids generation in one run; extra stages add trips, handling, time, and additional opportunities for mismatch. Neither extreme is automatically safer or faster.

Illustrative arithmetic only: if a pilot is 12.25 in. and the required final diameter is 26 in., the total diameter increase is 13.75 in. That subtraction describes the job but does not prove whether the interval should be opened in one, two, or more passes. It says nothing about the removed cross-sectional area, the distribution of work across cutters, formation variability, rig margin, or cuttings transport. Those variables control the engineering decision.

Do not copy a ratio: a ratio observed in one field case or catalog example belongs to that formation, tool, BHA, rig, and objective. AADE case evidence also shows why “ream it and the hole will become smoother” is not a dependable pass-planning assumption.

Write the proposed stages beside their purpose: establish clearance, reduce load per stage, manage solids, pass a restriction, or meet a casing/product requirement. Then identify the limiting component for each stage. If the plan depends on an unverified torque margin, an assumed pilot condition, or returns that have not been modeled at the enlarged diameter, the plan is not ready for field release.

Set the Operating Envelope Before the Run

An operating envelope is a verified set of limits and observations for the selected tool in the planned assembly. It isn’t a list copied from a generic article. RPM, applied load, torque, flow, pressure, vibration, connection make-up, and stop criteria must agree across the tool documentation, BHA design, rig capability, operator program, and formation assumptions.

Operating-envelope record
Item	Authoritative source	Monitor together	Escalation signal
Rotation and applied load	Tool manual + drilling program	ROP, torque, vibration, returns	Unstable response or no progress
Torque and connections	BHA design + connection procedure	Rotation, stall events, pressure	Sudden spike, stall, suspected back-off
Flow and pressure	Hydraulics program + rig limits	Returns, solids, drag, losses	Rising pressure, lost returns, pack-off signs
Vibration	MWD/tool program	Torque, ROP, tool data quality	Program alarm or rapidly increasing severity

A field guide for drill bits notes that bottom or fill contact can appear as changes in load or torque and stresses circulation and vibration monitoring. Those are useful relationships, but they aren’t universal hole-opener setpoints. The same boundary applies to research percentages: even a peer-reviewed improvement measured in one BHA can’t be pasted into another run plan.

The reactive-torque case deserves special treatment. An IADC/SPE case abstract explains that a sudden hole-opener or underreamer stall can apply left-handed torque below the stalled tool. That makes suspected loss of rotation a stop-and-assess event, not an invitation to push through with more load.

Pre-Run and Post-Run Inspection

A repeatable inspection record connects what was installed, what the tool experienced, what changed, and whether it’s fit for another run. “Looks acceptable” isn’t a durable record. The IADC DDR Plus code set illustrates the value of structured drilling-condition records, but actual disposition still belongs to the manufacturer’s acceptance criteria and the operator’s process.

Inspection record by component
Area	Before the run	After the run	Evidence
Cutters / inserts / teeth	Count, condition, orientation, retention	Map wear, chips, loss, thermal or impact signs	Photos tied to cutter position
Cones / bearings / moving parts	Movement and seal checks per manual	Play, seizure, leakage, heat evidence	Measured result and disposition
Gauge / body / stabilizing surfaces	Baseline gauge, dimensional precision, and damage survey	Uniform versus localized loss, wash, cracks	Measurement method and locations
Connections / retention	Correct components, clean condition, required records	Shoulder, thread, fastener, and back-off evidence	Traceable assembly and inspection record
Jets / ports / fluid paths	Configuration, security, unobstructed path	Plugging, erosion, wash, missing element	Configuration sheet and photos

Compare the inspection map with the downhole run history. Localized gauge wear plus abnormal lateral response tells a different story from uniform abrasive wear with stable trends. If gauge, retention, connection integrity, or component condition can’t be confirmed against the acceptance criteria, the correct disposition is escalation, not an undocumented rerun.

Troubleshooting by Symptom, Not Guesswork

The table below is a conversation and recordkeeping aid assembled from the multi-source review. It isn’t field instruction and doesn’t replace the drilling program. A peer-reviewed reamer vibration study likewise treats response as a coupled drill-string, tool, and wellbore problem. Each symptom has several plausible causes, so the first task is to compare signals and check the safest evidence before changing an input.

The Symptom-to-Check Hole Opener Triage Table
Symptom	Possible causes	Check in order	Unsafe assumption	Stop / inspect / escalate
Low ROP	Cutter mismatch; dull structure; poor cleaning; imbalance; vibration	Baseline trend → torque/pressure/vibration → returns → formation/tool assumptions → inspection	More load or speed must restore progress	Near-zero progress with abnormal torque, pressure, or vibration
Torque spike / stall	Reactive torque; stick-slip; pack-off; formation change; damaged cutters; connection issue	Confirm rotation → classify signature → check pressure/returns → vibration/trajectory → BHA limits	Every spike is only harder rock	Suspected stall, lost rotation, back-off, or combined torque/pressure anomaly
Abnormal vibration	Operating point; stabilization; imbalance; tortuosity; wear; hydraulic instability	Program limits → rotation/load/torque → stabilization/spacing → on/off-bottom comparison → inspection	Higher RPM or load is a universal cure	Rapid increase, combined instability, tool-data loss, or program alarm
Poor cleaning	Flow/rheology mismatch; lost returns; excessive solids generation; stagnant zones; balling; instability	Returns/pressure → enlarged-annulus calculation → drilling mud/fluid and pump capacity → solids handling → conditioning procedure	Pilot-hole hydraulics remain adequate	Rising pressure, lost returns, drag, inability to circulate clean, or pack-off signs
Gauge loss / wear	Abrasivity; vibration; cutter mismatch; poor cooling; imbalance; tortuosity; retention damage	Pre/post gauge → wear map → vibration/hydraulics → pilot/opener comparison → full component inspection	Wear can be offset with more load	Uncertain gauge, damaged retention, missing evidence, or wear outside manual criteria

The highest-confidence relationship is the stall/reactive-torque mechanism. The lowest-confidence area is a universal hole-cleaning threshold: the reviewed public sources don’t provide one. That gap is why the table tells you what to verify and when to escalate, not what exact flow or pressure to apply.

Current Design Priorities: Maintainability, Stability, and Verifiable Limits

Useful current-direction research asks what a buyer can verify. A published patent may disclose staged cutter placement or replaceable cutter shafts, as in US5337843A, but a patent isn’t proof that the design outperforms another tool in the field. A vendor statement isn’t an operating envelope unless the applicable configuration and test basis are supplied.

Priority	Buyer question	Evidence required	Trade-off to review
Maintainability	Which cutters, cones, jets, or wear parts are replaceable?	Procedure, retention method, gauge check, repair record	Field repairability versus alignment and QA control
Stability	How are guidance, load sharing, and imbalance managed?	BHA model, placement drawing, run evidence, inspection map	Stabilization versus contact, restriction, and hydraulic effects
Verifiable limits	Which document controls rotation, load, torque, flow, pressure, and stop criteria?	Configuration-specific manual and approved program	Conservative margin versus drilling efficiency
Standards scope	What exactly does an API statement cover?	Component, edition, process, inspection, marking, and certificate scope	Clear evidence versus broad marketing shorthand

API’s 2025 Addendum 1 affects the second edition of API Specification 7-1, Rotary Drill Stem Elements. It doesn’t establish that a complete hole opener is compliant. Ask which component, connection, manufacturing step, inspection, marking, and record the supplier means. That question is more useful than repeating “API 7-1” without a scope.

Frequently Asked Questions

How do you choose a suitable hole opener?

Start with five job inputs, not a model table.

Fishing and Milling Operations in Drilling: A Job Planning Guide

Aurora — Mon, 03 Aug 2026 09:56:51 +0000

Field-planning guide

Research reviewed August 2026 | Written for drilling supervisors, fishing engineers, wellsite teams, and technical buyers

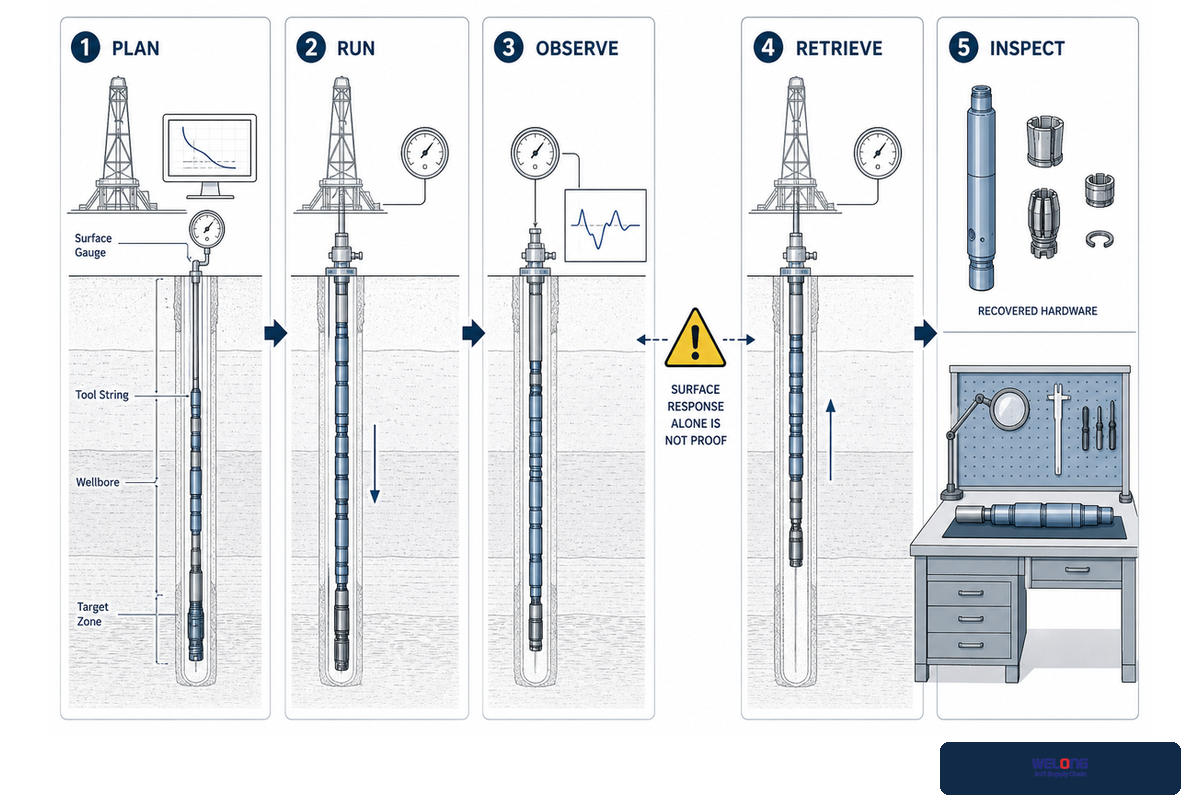

A fishing operation in drilling is a planned response to downhole equipment, tubulars, wireline components, or debris that blocks the next intended well operation. Start the job with an evidence package, not a catalogue: establish what is downhole, what has changed since the incident, which facts are measured, and who can approve the next planning state. Only then can engineering review whether a retrieval, milling, bypass, or further diagnostic route is supportable.

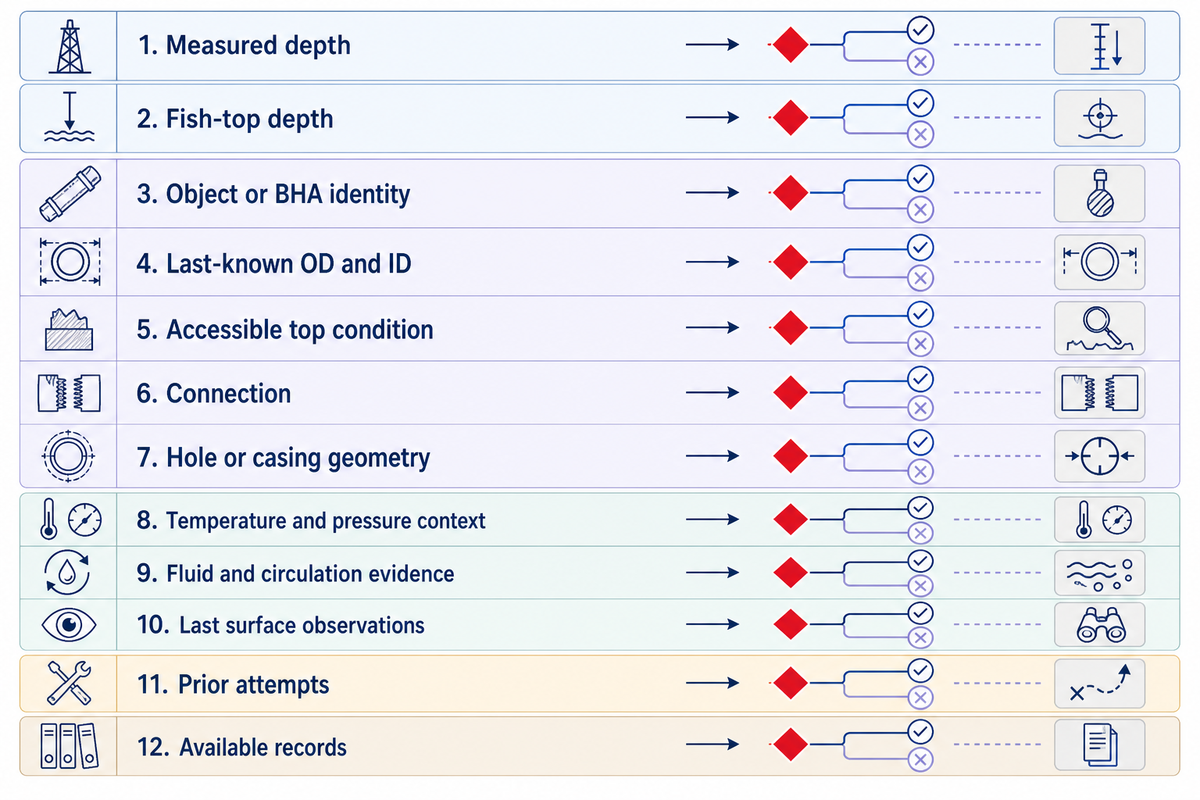

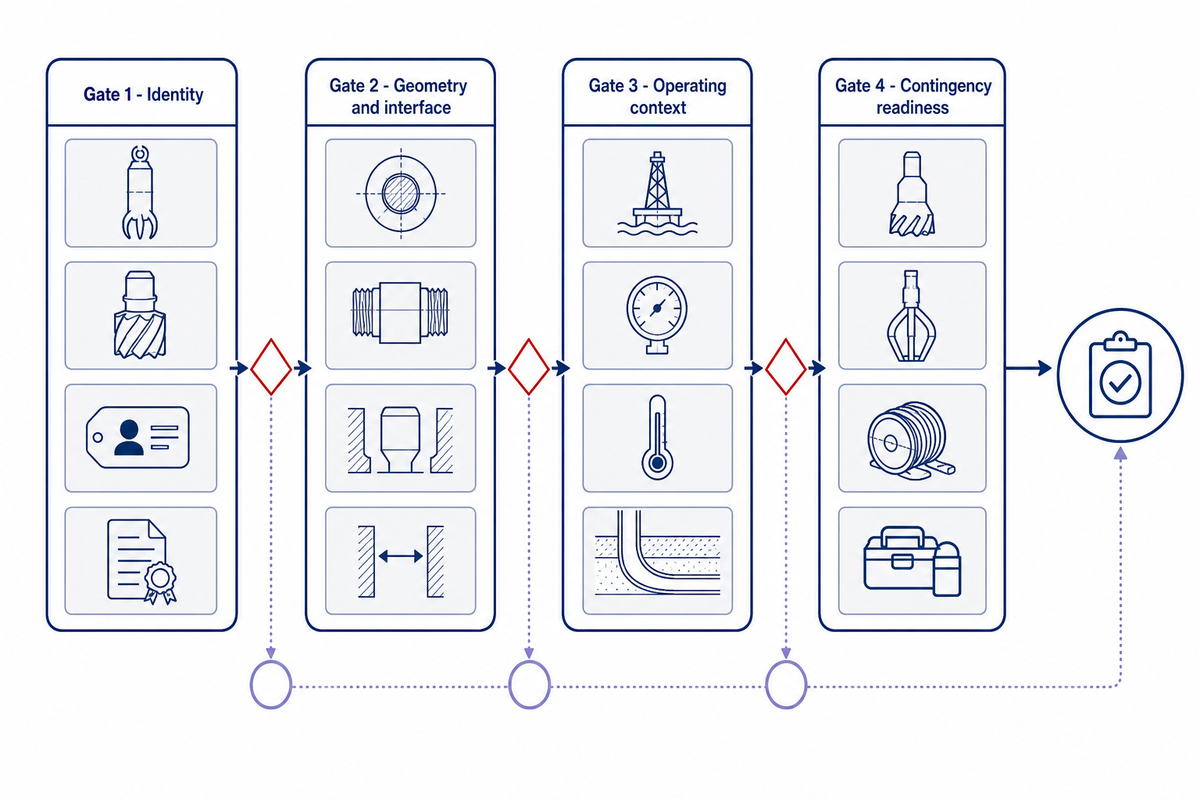

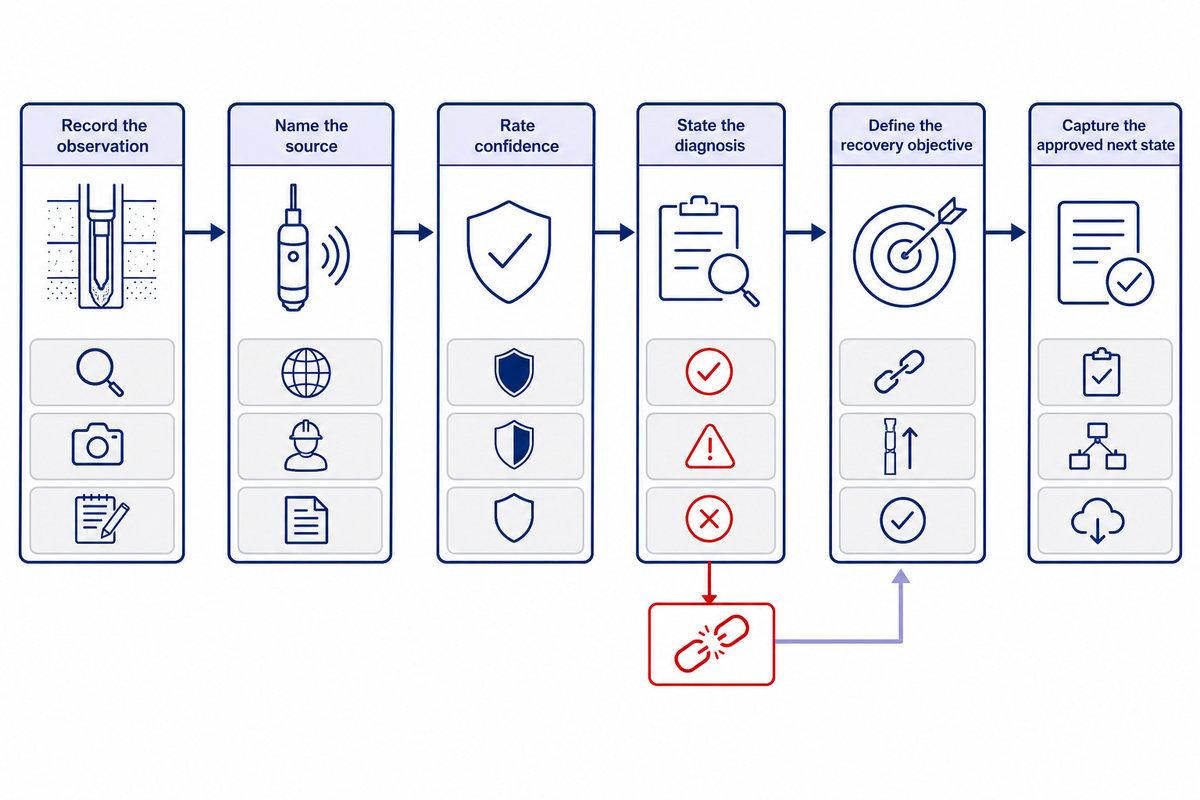

This guide provides a 12-field fish profile, a six-link evidence chain, a role handoff, and four pre-run evidence gates. It deliberately does not reproduce the product families, engagement matrix, dimensions, or supplier-selection content owned by China Welong’s commercial Fishing & Milling Tools solution page.

Safety and authority boundary: the named structures below are editorial evidence aids. They are not an API requirement, job-safety analysis, well-control program, regulatory approval, operating procedure, or substitute for the well operator’s approved systems.

Key takeaway

Release a recovery-job recommendation only when the fish identity, interface geometry, operating context, and contingency evidence are traceable to an owner and approval state.

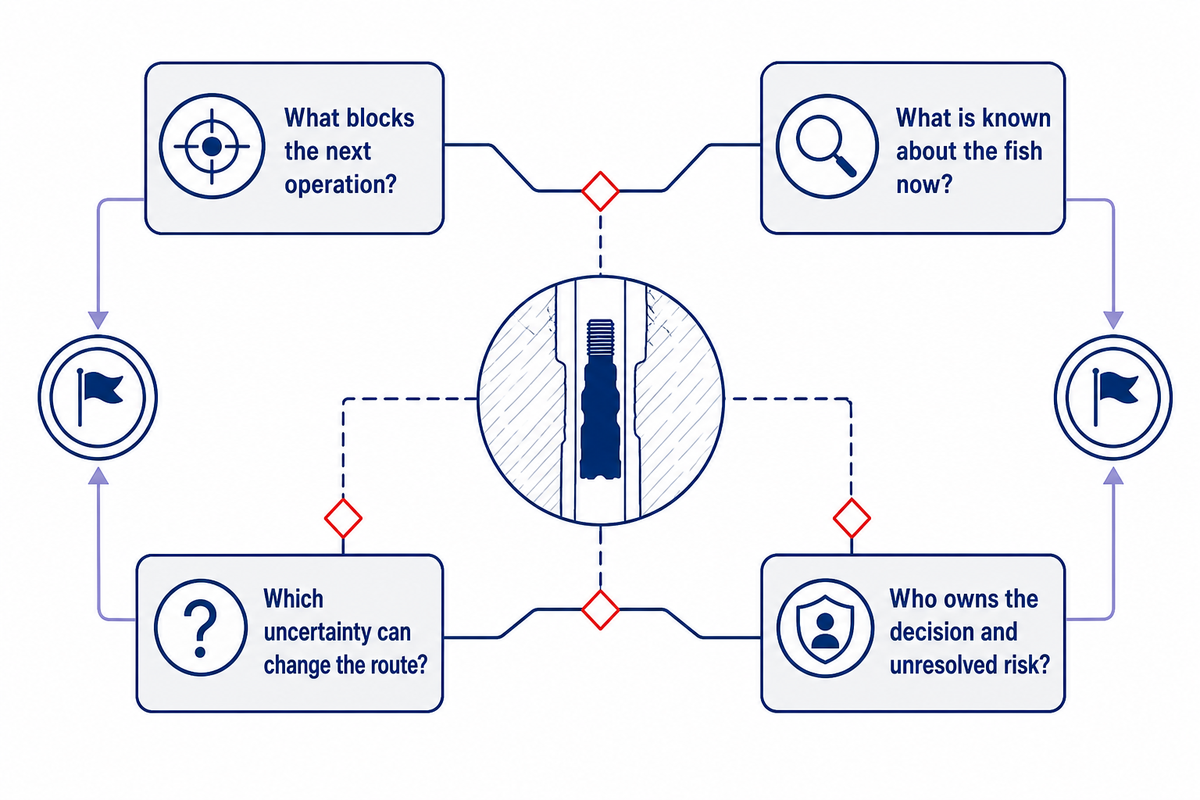

1. What a Fishing Operation in Drilling Actually Has to Resolve

A fishing operation is a planned response to equipment, tubulars, wireline components, or debris that prevents the next intended well operation. Its immediate objective may be recovery, removal, reshaping, or restoration of access; the objective is not automatically “bring everything to surface.” ^[1]

PETEX training material makes the core planning problem clear: each job has its own hole and fish conditions, so a method that worked in one well may not transfer to another. That is why a useful job brief answers four questions before it names a route: What blocks the next operation? What is known about the fish now? Which uncertainty can change the route? Who owns the decision and the unresolved risk? ^[2]

If the reader only needs what is fishing in drilling, common terminology, or a beginner overview, use this introductory explanation of fishing and milling. This article owns the separate job-planning intent: evidence capture, handoff, approval, reassessment, and procurement review.

Search language varies. Oilwell fishing, oil well fishing, well fishing, and special fishing can all point toward the same planning problem. Teams drilling wells may meet it during oil and gas exploration, gas drilling, drilling a new well, or later workover operations. Whether the asset is an oil or gas well, the brief must explain the need for fishing, what blocks the drilling process, and what must change for drilling to continue.

Within the oil and gas industry, including older oil industry and gas industry records, these labels do not alter the evidence standard. A new well does not make a missing fish identity safer to assume, and a workover does not make an unverified interface acceptable.

“Very little is routine about well site operations.”

U.S. Occupational Safety and Health Administration, Oil and Gas Well Drilling and Servicing eTool ^[3]

2. Build the 12-Field Fish-Profile Handoff Sheet

A fish profile is the record that travels from the rig to the people diagnosing, approving, sourcing, and verifying the job. Every entry needs a source, unit where relevant, confidence label, owner, timestamp, and verification state. Leave a blank cell marked unknown, because a visible unknown can trigger a hold; a guessed value can silently distort the interface review.

These fictional values show formatting only. They are not limits, recommendations, or evidence for a real well.

To identify the type of obstruction, record whether the event involves lost or stuck drill pipe, a stuck pipe interval, a drill bit, drill collars, wireline tools, or other drilling equipment. Distinguish a twist-off or parted drill string from a broken drill, lost equipment, lost tools, something dropped into the hole, equipment dropped into the well, or an object left in the wellbore. For an oilfield record, say whether each component is broken or lost; “lost in the hole” is not enough. Name the borehole context, last-known assembly, and evidence for the present condition.

Which inputs make a fish profile reviewable?

12-Field Fish-Profile Handoff Sheet
Field	Example format (fictional)	Provenance and verification check
1. Measured depth	3,450 m MD; 3,120 m TVD	Survey reference, datum, timestamp, and owner
2. Fish-top depth	3,210 m MD; ±6 m confidence band	Method used to locate it and uncertainty interval
3. Object or BHA identity	Reported drill-string component; identity unverified	Tally, serial record, assembly drawing, or recovered counterpart
4. Last-known OD and ID	127 mm OD; 76 mm ID	Drawing revision and whether deformation is expected
5. Accessible top condition	Reported 15 mm lip deformation across a 40 mm contact zone; ±2 mm visual estimate	Separate direct observation from inference
6. Connection	NC50 reported; gauge status unknown	Connection record, drawing, and model-specific gauge evidence
7. Hole or casing geometry	216 mm open hole above 244.5 mm casing; 190 mm logged restriction	Current restriction map, not nominal size alone
8. Temperature and pressure context	120 °C reported; 35 MPa modeled; record age 45 min	Timestamp, depth basis, operating state, and uncertainty
9. Fluid and circulation evidence	1,200 kg/m³ reported; circulation response incomplete after 20 min	Source log, sample time, returns, and loss observations
10. Last surface observations	12 MPa pressure change during an 8 min trend window; torque not reconciled	Raw trace, sensor source, event time, and interpretation owner
11. Prior attempts	2 runs over 6 hours; one changed the observed top condition	Assembly, sequence, response, recovered material, and disposition
12. Available records	3 drawings, 1 log set covering 90 min, 0 verified downhole images	File revision, custody, readability, and missing-record flags

China Welong’s public intake already asks for fish type, casing or hole size, temperature, and connection. Those four groups are a practical start, but the expanded sheet is an editorial synthesis, not a China Welong field claim or an industry standard.

Fish-profile boundary: this is not the complete control system. Keep a separate, operator-controlled annex for live well-control and barrier status, formation and fluid conditions, simultaneous operations, control-system, alarm and emergency-shutdown readiness, step-specific hazard controls, and management-of-change status. OSHA’s oil and gas guidance treats these as whole-operation concerns rather than tool-selection details. ^[3]

This separation also answers a recurring field-language problem. Respondents in a public practitioner discussion about a stuck string quickly stalled because they did not have the BHA, depth, pressure context, well condition, or downhole restriction data. Although anecdotal, the exchange exposes a useful pain point: drilling fishing tools cannot compensate for a missing incident record.

3. Trace the 6-Link Recovery Evidence Chain

Raw data does not become a decision merely because it appears in a report. This 6-Link Recovery Evidence Chain keeps the observation, its provenance, the interpretation, and the approval separate. That separation matters when two measurements support different diagnoses or when a previous fishing job has already changed the object.

Clear evidence also keeps search vocabulary from becoming a recommendation. Common fishing tools, fishing equipment, special tools, and specialized equipment are broad labels. A downhole tool or drilling tool may be used to retrieve an object or collect evidence, but conditions that require special tools still do not identify the proper fishing tool. Even a search typo such as overshoot should be checked against the intended model term rather than copied into an inquiry. A fishing expert can review tools and techniques only after the job record establishes the interface and objective.

How does raw evidence become an approved next state?

Record the observation — preserve the actual trace, image, recovered material, mark, or report without rewriting it as a diagnosis.
Name the source — identify the instrument, document, person, time, unit, and revision that produced the record.
Rate confidence — classify the input as measured, reported, inferred, or unknown and explain the uncertainty.
State the diagnosis — show which observations support it and which observations could contradict it.
Define the recovery objective — specify the next well objective that must become possible, not just the preferred tool action.
Capture the approved next state — record continue, hold, obtain more evidence, change route, or close out with the named authority.

One BSEE-hosted technical assessment illustrates why the links must stay separate. In a documented case, a recovery attempt failed, tools were pushed into the tailpipe, and work later stopped because the obstruction no longer prevented the intended objective. “Fish recovered” would have been the wrong success test; the changed well objective drove the close-out decision. ^[4]

9-Source Recovery Evidence Matrix
Evidence type	What it can establish	Common failure risk	Verification owner
Tally and assembly records	Last-known identity and sequence	Revision or transfer error	Drilling records owner
OEM or supplier drawings	Nominal interfaces and model details	Wrong revision or variant	Supplier engineering
Survey and wellbore records	Depth, geometry, and restrictions	Datum or current-state mismatch	Well engineering
Surface traces and logs	Time-based torque, pressure, or drag response	Multiple plausible interpretations	Data owner and fishing engineer
Impression or diagnostic evidence	Accessible shape or contact condition	Poor transfer or overinterpretation	Fishing engineer
Recovered material	Observed material, fracture, or wear	Lost chain of custody	Wellsite and quality teams
Returns and debris record	Material and circulation observations	Mixed or unrepresentative sample	Wellsite team
Photos and inspection reports	Before-and-after condition	No scale, time, or orientation	Inspection or quality owner
Prior-run report	Assembly, response, changed assumptions, and disposition	Summary omits raw evidence	Job supervisor

These nine categories are not ranked by authority. Current, well-scoped measurements may outweigh a generic manual, while a supplier drawing may be decisive for one interface and irrelevant to the present fish shape. Use the matrix as a filing and review aid, not a tool-selection rule.

4. Record Why a Recovery Route Changes

A team should change the planning state when new evidence alters an assumption, a feasibility boundary, the consequence of failure, the approved objective, or the safety basis. “We have already tried twice” is history, not a decision rule. Ask what the two attempts taught and whether the next action responds to that evidence.

The cost of fishing and probability of success belong in that record, but universal rules of thumb do not. Different fishing methods can change access, evidence quality, and consequence; a proposal to bypass the fish changes the objective rather than proving recovery impossible. Certain types of fishing may preserve more evidence than others, so keep facts about the fish and fishing attempt separate from the route preference.

What should trigger a route-change review?

Evidence-to-change ledger (fictional examples; not operating instructions)
Current state	New evidence or trigger	Decision effect	Permitted next planning state
Identity reported	Drawing revision does not match the tally	Interface assumptions become unverified	Hold and reconcile records
Fish top at 3,210 m	Second locating source disagrees by 18 m	Depth confidence falls	Request independent verification
127 mm OD assumed	Impression evidence suggests deformation	Nominal geometry no longer proves access	Rebuild the geometry case
76 mm ID reported	Connection record identifies a different variant	Internal interface is uncertain	Hold supplier review
35 MPa context modeled	Current well state differs from the model basis	Operating-context evidence expires	Return to operator review
Circulation expected	Returns do not match the expected response	Debris and access assumptions weaken	Stop and reassess evidence
Recovery is the objective	Fish no longer blocks the next well objective	Benefit of further recovery changes	Evaluate close-out or alternate plan
Procedure unchanged	Job scope or condition changes	Existing hazard analysis may no longer apply	Stop, communicate, and assess change control
Supplier data accepted	Certificate or model scope cannot be verified	Compliance claim is insufficient	Request current scoped evidence
Next run proposed	Approver or stop-work authority is not named	Governance handoff is incomplete	Hold until authority is mapped

A 2023 Gachsaran study did not apply a universal fishing-time percentage. It built a field-specific economic model from 62 fishing operations, 56 sidetracking operations, depth, rig cost rate, and interviews, and noted that the field had no pre-existing rule for optimum fishing duration. This supports a job-specific calculation; it does not establish a portable cutoff. ^[5]

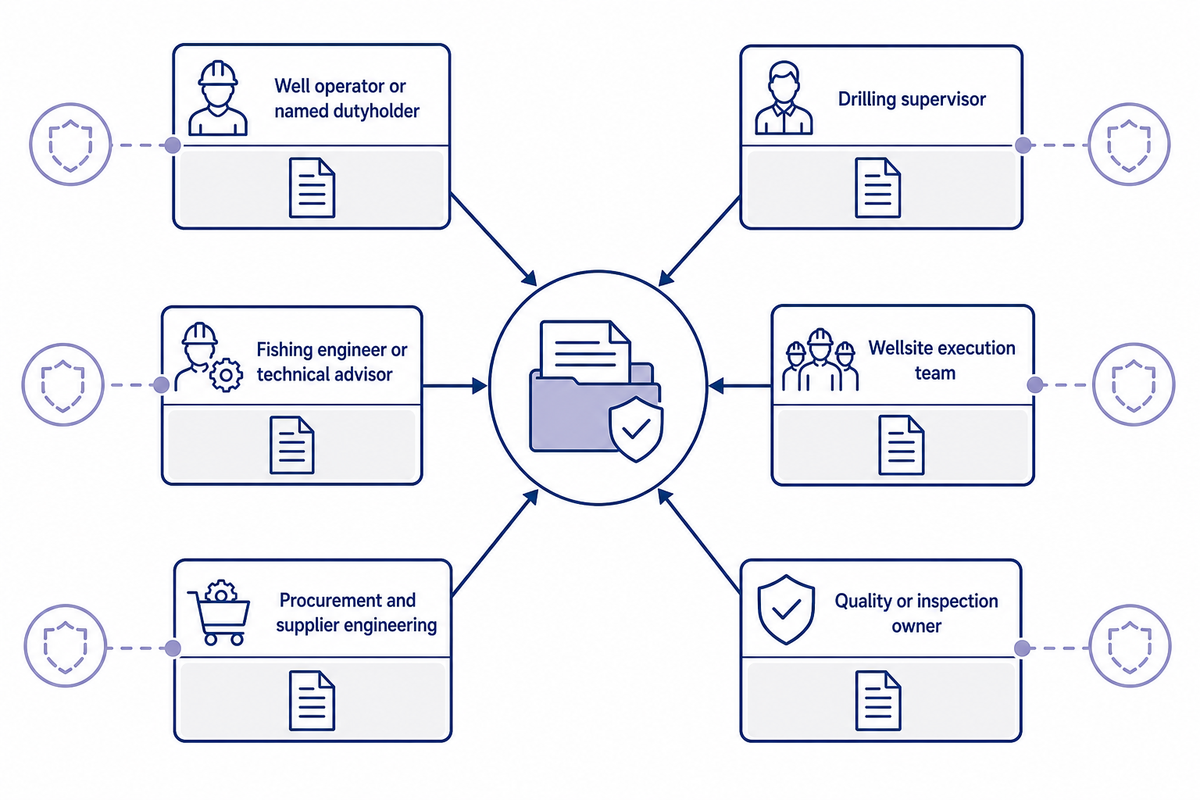

5. Separate the Six Handoff Roles From Legal Authority

Use a role table to prevent dropped evidence, not to reassign statutory duties. A fishing supervisor may plan with the customer, direct service execution, and report equipment use. That does not automatically make the service company the well operator, approval owner, incident-reporting party, or legal dutyholder.

For example, UK HSE Operations Notice 30 states that, in its UK offshore reporting context, a well operation remains under the control of a well operator and that the well operator reports a dangerous occurrence at the well when different from the installation operator. Other jurisdictions and contracts can use different role names and duties. Each project must map its own authority rather than copy the six labels below. ^[6]

Six-role evidence handoff
Generic role	Primary evidence contribution	Verification output	Authority boundary to state
Well operator or named dutyholder	Objective, well state, barriers, governing program	Approved scope and control basis	Retained control, approvals, reporting, and change governance as applicable
Drilling supervisor	Event timeline, rig observations, current constraints	Reconciled operational record	Site authority and stop-work route under the operator’s system
Fishing engineer or technical advisor	Diagnosis, uncertainty, evidence needs, proposed route	Technical recommendation with assumptions	Advice is not final operator approval
Wellsite execution team	Assembly checks, observations, returns, recovered condition	Timestamped run record	Execution follows approved procedure and stop-work rules
Procurement and supplier engineering	Model data, drawings, availability, inspection documents	Commercial and technical review package	Supply confirmation does not prove well suitability
Quality or inspection owner	Identity, traceability, inspection, certificate scope	Acceptance or discrepancy record	Document acceptance does not replace operational approval

For every row, add the named person or organization, jurisdiction and contract basis, due point, approval output, stop-work authority, and legal-reporting owner. An unassigned cell is a project risk; filling it with the nearest job title is not verification.

6. Run the 4-Gate Pre-Run Evidence Review

The 4-Gate Pre-Run Evidence Review produces an evidence recommendation of go, hold, or escalate covering identity, geometry and interface, operating context, and contingency readiness. It is subordinate to the operator’s hazard analysis, well-control, regulatory, and approval systems.

Gate 1 — Identity — reconcile the fish, assembly history, top condition, prior attempts, and any variant or revision conflict.
Gate 2 — Geometry and interface — verify current restrictions, accessible surfaces, connection data, conveyance path, and model-specific drawing or gauge evidence.
Gate 3 — Operating context — confirm the current well state, drilling fluid and circulation evidence, temperature and pressure basis, barrier status, simultaneous operations, and step-specific hazard review.
Gate 4 — Contingency readiness — define observable response, hold points, stop-work triggers, evidence capture, alternate planning states, change-control route, and approval owner.

An impression block or another diagnostic record can support the geometry review only within its stated quality and interpretation limits. It does not erase conflicting dimensions, prove the present load path, or release the next run on its own.

Bind every value to a unit, source, revision, and verification state.
Use model-specific drawings and limits only for the identified model.
Keep safety, well-control, and regulatory approval outside the editorial gate score.
Record the evidence required to move from hold to review.

Don’t

Convert a nominal dimension into a clearance conclusion.
Treat an API or ISO label as proof of complete job suitability.
Turn a supplier’s availability statement into operator approval.
Release a recommendation while authority or change control is unresolved.

API scope is a useful check on overclaiming. In its official catalog, API describes Specification 7-1 as covering technical delivery conditions for named rotary drill-stem elements, while Specification 7-2 covers threading and gauging of rotary shouldered connections. API’s current update page lists a 7-1 Second Edition addendum in March 2025, a second erratum in November 2025, and a Kelly-valve transition notice in April 2026. None of those entries turns “API 7-1” into a universal fishing-job approval. ^[7]^[8]

Supplier credentials need the same scope discipline. China Welong states that it is certified to ISO 9001:2015 and API Spec 7-1. ISO describes ISO 9001:2015 as a quality-management-system standard, so it can support a supplier-system review but cannot prove that a specific assembly suits a specific fish. For a reported NC50 interface, an ISO/TC 67 standards map lists ISO 10424-2:2007 under threading and gauging of rotary shouldered thread connections. Confirm the current ISO edition or status, the certificate scope, and model-level applicability rather than treating any label as job approval. ^[13]^[14]

Where a proposal contains a number such as 120 °C, 35 MPa, 127 mm, or 3,210 m, the gate checks provenance and scope; it does not validate the number simply because the unit is present. That distinction keeps the worksheet useful without turning it into remote operating advice.

7. During the Run, Update Evidence, Stop, and Reassess

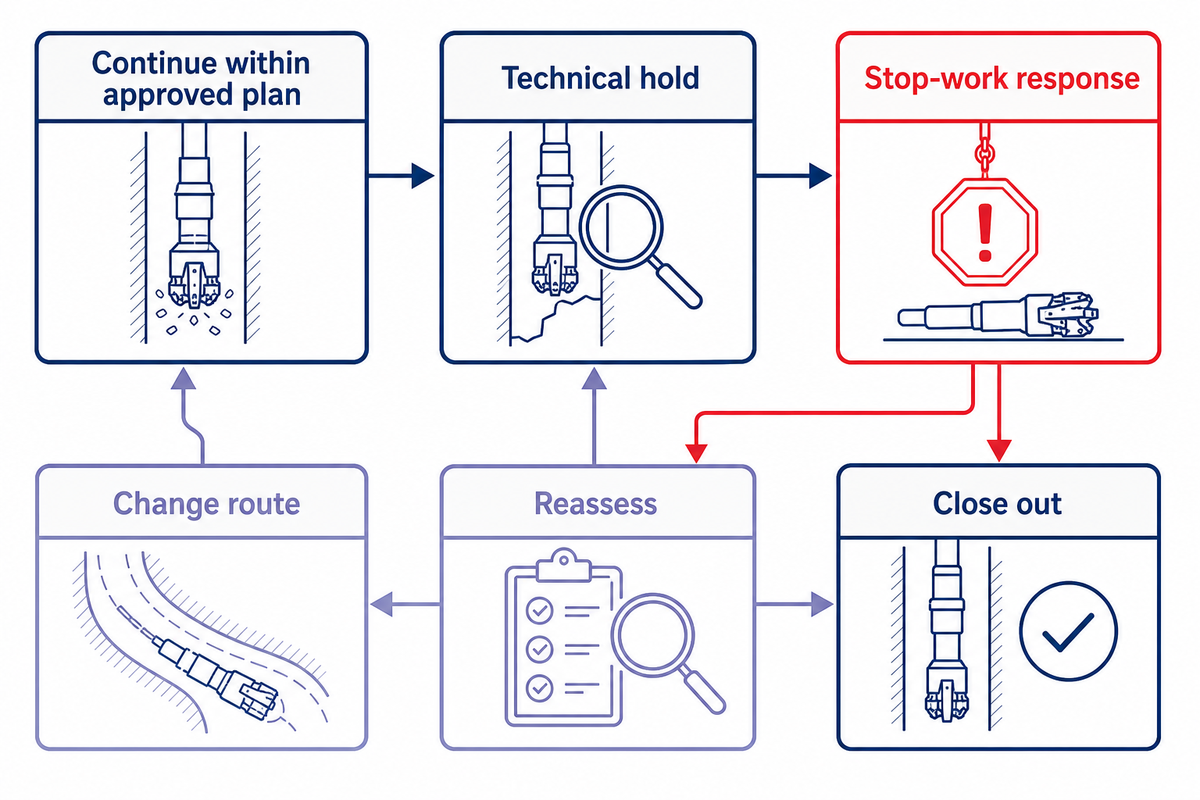

During execution, the job record should distinguish an expected observation, a deviation, a safety trigger, a technical hold point, and a changed objective. Record what was observed, when, by which source, what it does to the working hypothesis, and who sets the next state. Do not wait until the end-of-tour summary to reconstruct the sequence.

Run-state decision log
State	Minimum record	Decision boundary
Continue within approved plan	Expected observation, timestamp, source, and no conflicting trigger	Only within the approved procedure and authority
Technical hold	Missing or contradictory evidence and the question it blocks	No inferred value may clear the hold
Stop-work response	Changed condition or safety concern and immediate communication record	Operator procedures and stop-work authority govern
Reassess	Updated hazard analysis, contractor coordination, assumptions, and management-of-change status	Recovery economics cannot override the safety trigger
Change route	New evidence, affected assumption, consequence, proposed state, and approval	The revised route needs its own evidence and control basis
Close out	Objective status, residual obstruction or risk, records, and acceptance owner	“Not recovered” can still require a formal disposition

How much time should we spend trying to recover the fish?

There is no defensible universal time or cost percentage. A decision depends on evidence gained per attempt, expected recovery value, remaining technical feasibility, risk, rig and service cost, and the value and feasibility of alternatives such as a sidetrack. In the Gachsaran study, 62 fishing and 56 sidetracking operations supported a local model; that dataset does not become a rule for another field. ^[5]

Fishing cost can dominate a specific incident without defining an industry benchmark. A 2025 Changuleh case-study paper reproduces figures from a cited 2017 Azar conference paper: fishing accounted for 45%, 47%, and 41% of idle or non-productive drilling time in three named wells. This is secondary reporting of field-specific figures, not a universal benchmark. The percentages show why an evidence-based reassessment matters; they do not justify a 45% cutoff elsewhere. ^[9]

OSHA adds a separate decision layer: when conditions or scope change, contractors should stop, address and communicate new hazards, reassess risk, and use management of change where needed. That obligation can arise even when the fish remains technically recoverable and the economic case still looks favorable. ^[3]

8. Preserve Post-Run Evidence for the Next Trip

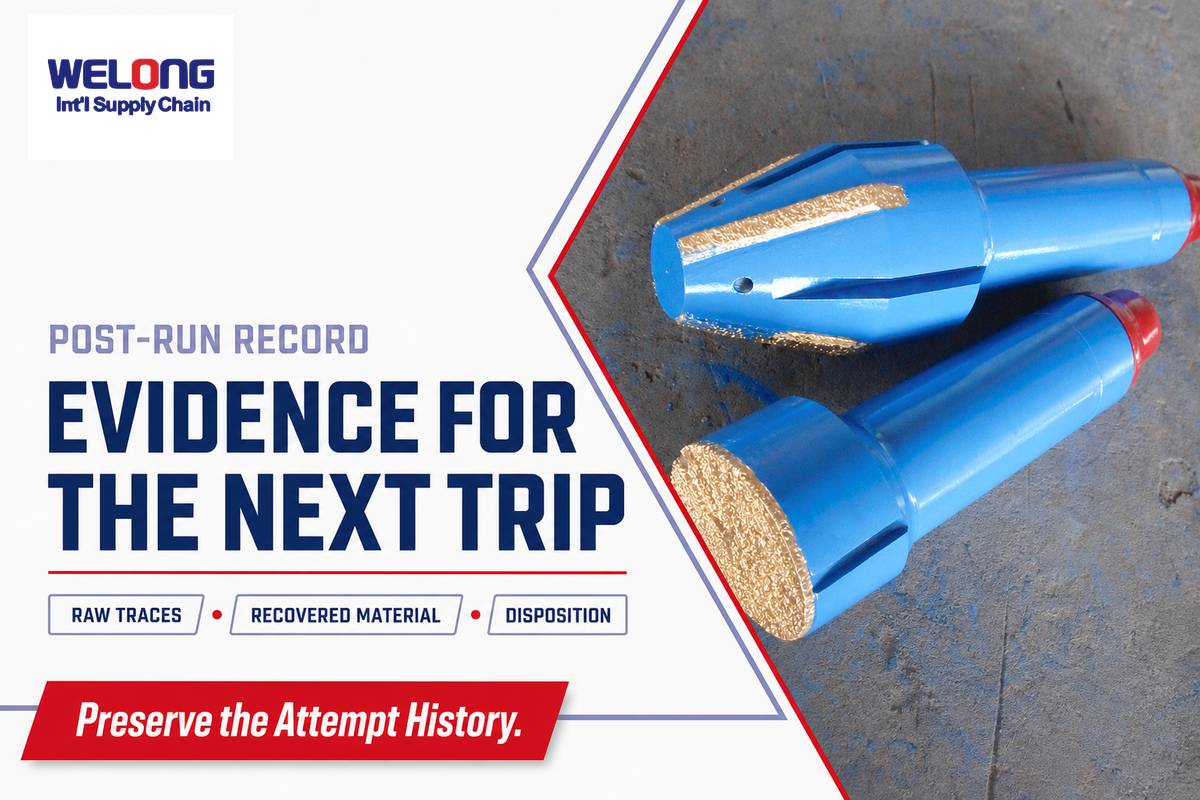

A post-run record should make the next review faster and more accurate. Preserve the assembly run, surface traces, recovered material, witness marks, tool condition, circulated debris, photographs with scale and orientation, unexpected behavior, and every assumption that changed. Label observations separately from inferred mechanisms.

Before-and-after evidence checklist
Record	Before run	After run	Next-decision use
Objective	Approved and scoped	Met, partly met, or not met	Defines whether further work is needed
Assembly identity	Drawing and tally verified	Returned assembly reconciled	Confirms what actually went downhole
Surface response	Expected signature recorded	Raw trace and deviations saved	Tests the working diagnosis
Recovered material	Expected material noted	Tagged, photographed, and retained	Supports identity and mechanism review
Witness marks	Reference condition photographed	Scale and orientation added	Shows contact without guessing cause
Returns or debris	Sampling plan agreed	Source and custody recorded	Supports material and hole-cleaning review
Unknowns	Visible in the job brief	Resolved, unchanged, or newly created	Sets the next evidence request
Disposition	Decision owner named	Continue, hold, change, or close approved	Prevents the next shift from restarting the diagnosis

A published SLB case shows the value of preserving a long attempt history. After two unsuccessful campaigns, the team reviewed the event sequence and dimensions, produced a detailed proposal, and obtained operator approval. The case reports recovery of 11,575 ft (about 3,528 m) in 21 wire fishing runs; after 26 total runs, the well was confirmed clear of wire. Its takeaway is not that either run count is normal; prior attempts, approval, and run-by-run evidence remained part of the engineering record. ^[10]

Current digital signals point in the same direction. An SLB page dated April 10, 2025 describes integrated planning, automated validation, real-time analytics, and a shared data source from planning into operations. A patent published May 21, 2025 describes sensor-based milling displacement and condition detection. These are workflow and innovation signals, not proof that a particular platform or patented method will work on a given fish. ^[11]^[12]

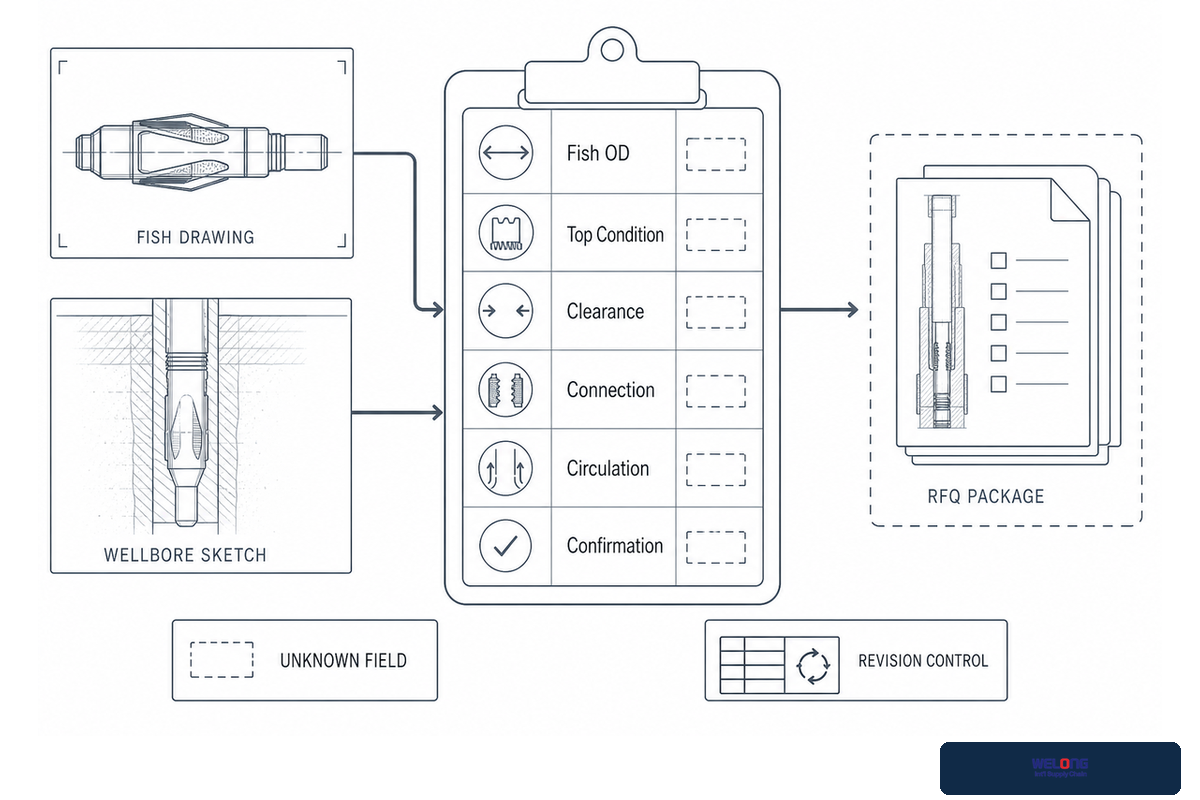

9. Build the Engineering and Procurement Review Package

A buyer should not send only “need fishing tool” and expect a defensible match. Send the verified fish profile, operation-control boundary, evidence chain, prior-run record, unresolved unknowns, requested review scope, delivery constraints, inspection documents, and acceptance criteria. Suppliers can then state what they can review, what remains conditional, and which model-specific documents are required.

You can copy this table into the technical portion of an inquiry. “No default” means the value must come from the job record; it is not an invitation to insert a catalogue number.

What belongs in the supplier review package?

RFQ checklist — copy these into your quote request:

Parameter	Recommended range	Why it matters	How to verify
Fish identity and top condition	No default; measured, reported, inferred, or unknown	Defines the review basis	Tally, impression, photo, or diagnostic record
Depth and datum	No default; enter the current value in m or ft	Prevents datum and access errors	Current survey and event timeline
OD, ID, and accessible geometry	No default; enter values in mm or in	Supports interface review	Current drawing plus deformation evidence
Hole, casing, and restrictions	No default; map each restriction in mm or in	Supports conveyance and clearance review	Well schematic and restriction log
Connection and assembly	Exact designation and drawing revision	Prevents variant mismatch	Gauge record, tally, and model document
Temperature and pressure context	Job-specific °C and MPa with time and state	Defines the stated environment	Operator-approved current data
Prior attempts and evidence	All runs; do not send only the latest summary	Shows changed fish and access conditions	Run sheets, raw traces, photos, and recovered material record
Inspection and acceptance package	Project-specific certificates, reports, and hold points	Defines delivery evidence	Current scope, edition, issuer, model, and acceptance owner

If you need examples of the model-level data that should accompany the package, review the public pages for die collar connection and dimensional data, junk and taper mill size data, and fishing jar operating data. The broader downhole drilling tools overview can help route an inquiry that extends beyond fishing and milling. These examples show what must be checked; they do not establish fit for an unreviewed job.

China Welong can use the completed evidence package to review available fishing and milling tool families against the stated inquiry. Ask for current drawings, inspection evidence, certificate scope, and exceptions before treating the review as complete.

Send the verified job package for review

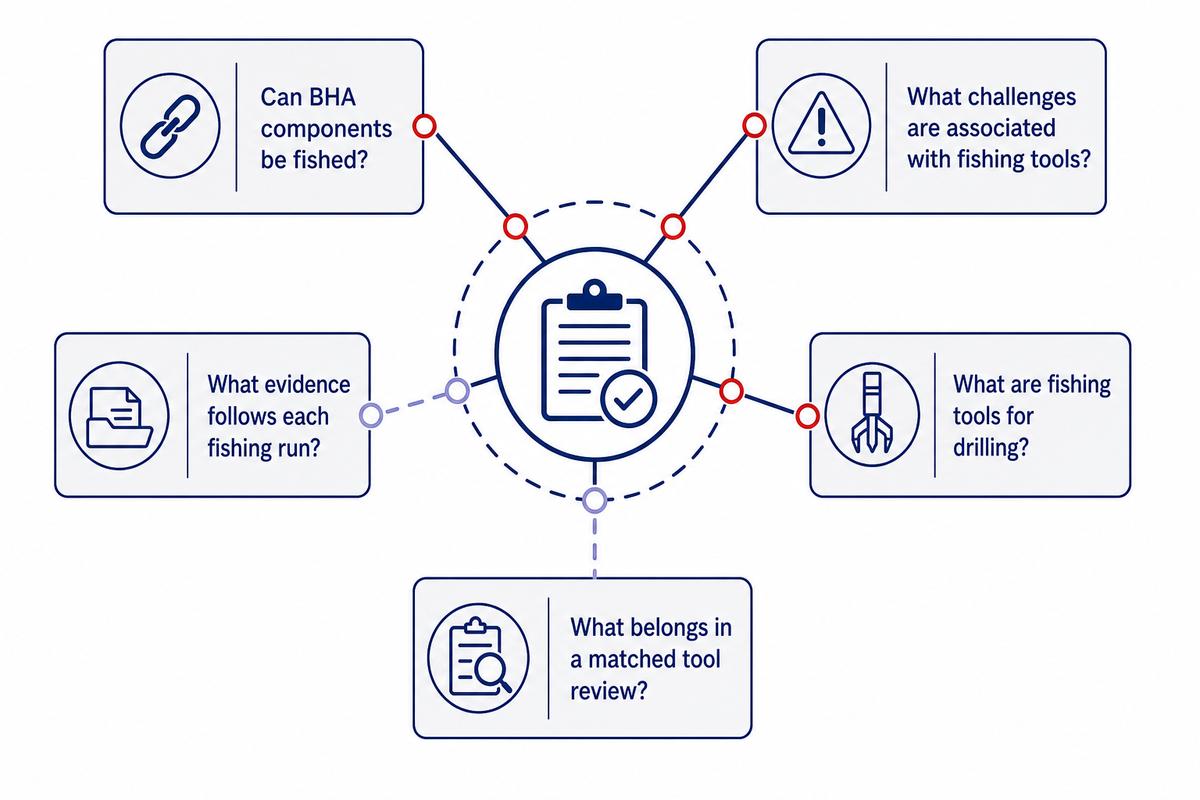

10. Frequently Asked Questions

Can BHA components be fished?

Overshot vs. Junk Basket: A Field Selection Guide

Aurora — Tue, 28 Jul 2026 02:37:40 +0000

Quick Selection Criteria

Before picking an overshot or a junk basket, define the target form: an oilfield overshot grips the outside of a defined tool through a grapple-and-bowl mechanism. By contrast, a junk basket uses circulation to transport loose debris into a catcher. So the first question is whether the fish has a usable engagement surface, not which tool is strongest.

Overshot & Junk Basket refers to two different oilfield fishing-tool families: an overshot engages a defined fish, while a junk basket collects loose debris. A junk basket is a downhole fishing tool, not a household waste receptacle. Both can appear in a fishing-tool catalog, but they serve distinct object-recovery tasks.

Begin with the object, its position, and its possible recovery path. If the recovery path has already been decided and your query is now about available product options, commercial information, or connection types, see the oilfield overshot and junk basket configurations page. Here, the focus stays on diagnosis and handoff to avoid overlap with the solution page.

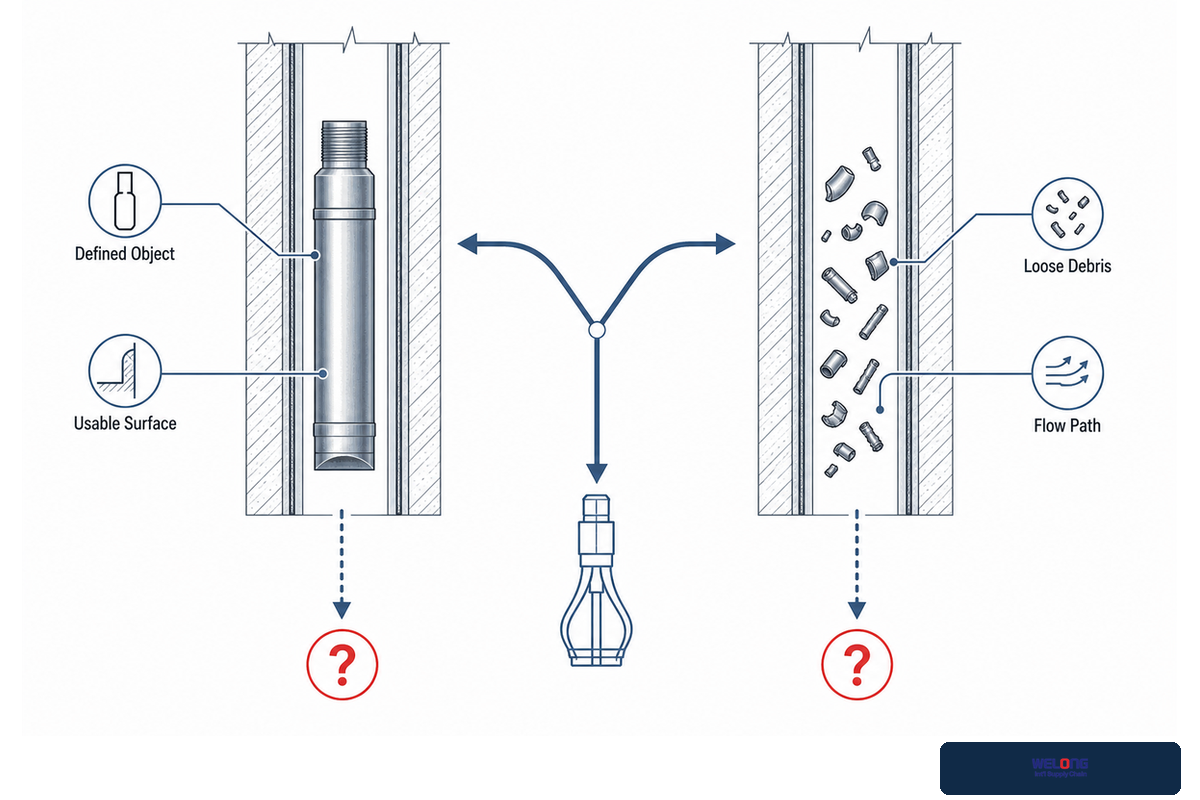

Overshot or Junk Basket? Start With the Fish You Need to Recover

An overshot is often the preferred family for a structured tool or continuous pipe-type fish when an outer surface is available and reachable from above. By contrast, a junk basket suits fragmented material that can be moved by circulation into a catcher. Neither name guarantees run success.

International Ocean Discovery Program reports document an overshot used on a specific rotary tool and a reverse-circulation junk basket used to retrieve debris in another operation. These field examples aren’t universal instructions, but they support classifying the target before opening a tool catalog.

Answer-first comparison: recovery object before tool configuration
Type / decision point	Overshot route	Junk-basket route
Target form	Defined, substantially continuous fish	Loose, fragmented, or small debris
Engagement	External grapple contacts a usable fish surface	Debris enters and is retained by a catcher system
Circulation role	Configuration-dependent support function	Central to moving debris toward the basket
Confirmation	Compare planned surface response with retrieved fish and tool inspection	Inspect recovered contents and reconcile them with the debris model
Primary unknown	Fish-top access and usable outside surface	Debris mobility, flow path, and retention
Failure clue	Tool cannot pass, engage, or produce the planned response	Material does not enter, is not retained, or does not match the debris model
Not suitable when	No accessible external catch surface exists	The target is a continuous stuck object that cannot enter the basket
Adjacent path	Internal catch, impact, or another engineered engagement route	Magnetic recovery, milling, or another debris-management route
Commercial handoff	Model review after fish geometry is known	Model review after debris and circulation conditions are known

Overshot route: advantage and boundary

Direct engagement is lost when the fish top can’t be accessed, the exterior surface is compromised, or debris blocks the path.

Junk-basket route: advantage and boundary

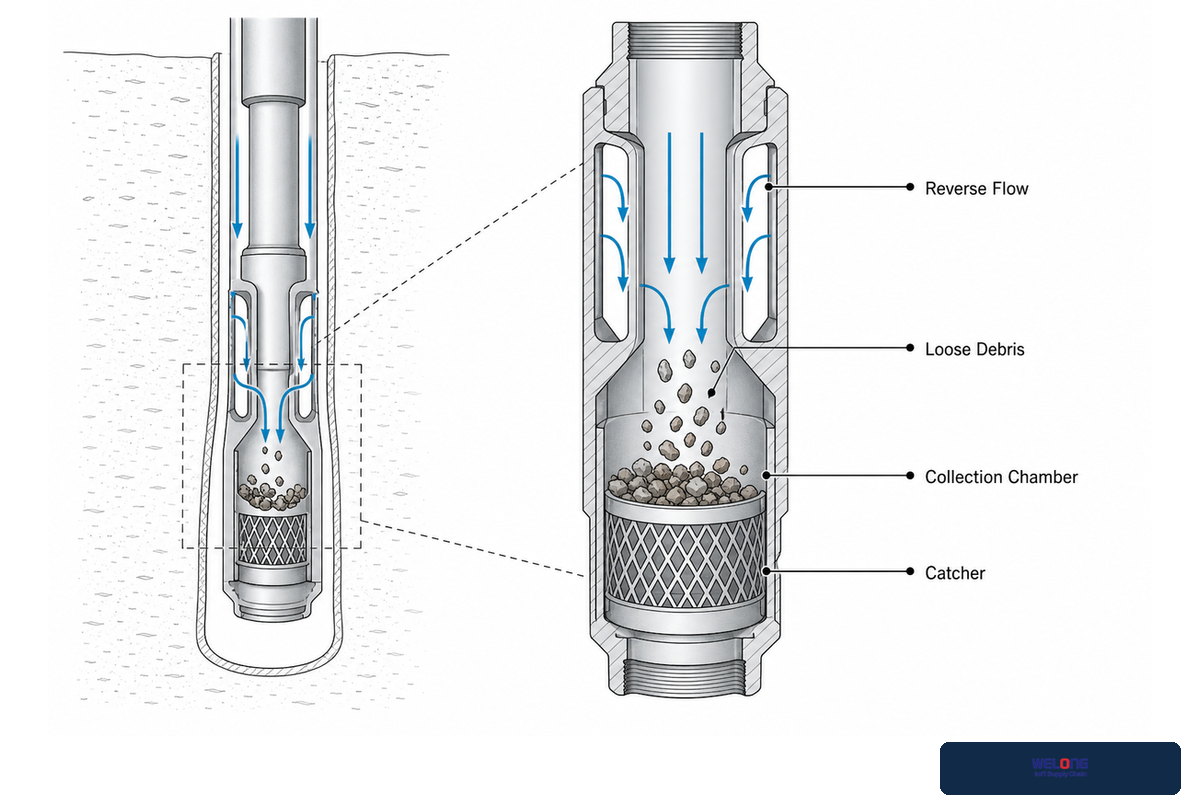

Circulation can guide small, loose items toward a catcher. This route doesn’t suit a stuck tool that can’t enter the catcher path.

It’s easy to ask the wrong first question: “Overshot versus junk basket sizes.” Before addressing size or consulting a catalog, establish a clear object model. For an overview of tool types, use the guide to oilfield fishing tools.

How an Overshot Grapple Engages a Tubular Fish

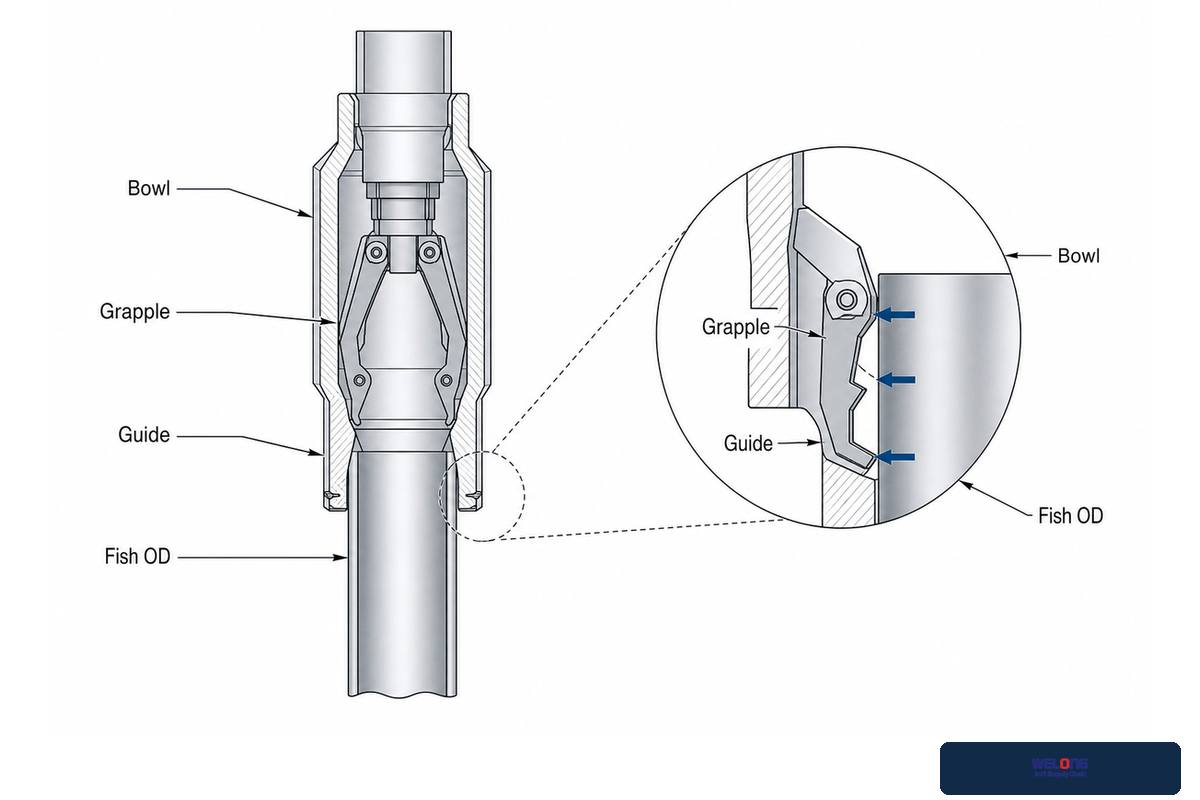

External catching starts when an overshot slips over the fish top and its internal grapple clamps the outer surface. Bowl and body geometry support the grapple design; packoff elements, guide geometry, and circulation access remain configuration details for model-specific review.

One patented wide-catch overshot uses a spiral-grapple arrangement adapted for varied external dimensions. Patent drawings can illustrate that mechanism, but they don’t prove product interchangeability or universal fit. Actual fish dimensions, surface condition, accessible length, and surrounding restrictions still control the application.

Approach: The guide and body must pass the fish top without an obstruction blocking the path.
Envelop: The catch section moves over enough usable outside surface for the intended grapple to engage.
Engage: Relative movement loads the grapple against the fish and supporting bowl geometry.
Confirm and retrieve: The crew compares the observed response with the expected signal, then verifies the catch through recovery and inspection.

Failure can occur before the grapple gets a fair opportunity.

In an IODP Expedition 313 operation, sand entered the bottom-hole assembly and blocked core-barrel release, preventing latching and requiring a pipe trip for recovery. It’s a useful counterexample: knowing the object didn’t eliminate the effect of fill and access conditions.

What are the different types of overshot?

Within drilling and workover fishing, basket-grapple and spiral-grapple arrangements are common external-catch concepts. Overshot is also used in wireline, slickline, and coiled-tubing contexts, where the interface and operating assumptions can differ materially. Treat the service context and specific mechanism as part of the name.

For deeper external-engagement context, read external catch fishing tools.

How a Reverse Circulation Junk Basket Collects Loose Debris

Fluid movement becomes a debris-transport path in a reverse-circulation junk basket.

As the tool is circulated according to its job-specific procedure, flow is directed so loose material can move toward the collection chamber. Mechanical catchers then help retain collected pieces while the assembly is retrieved.

What is a reverse-circulation junk basket?

A reverse-circulation junk basket is a downhole fishing tool for collecting loose debris through circulation-assisted transport and mechanical retention. The target must be movable into the tool’s collection path; a stuck continuous fish doesn’t become a junk-basket target simply because it’s unwanted material.

An IODP operations report records an RCJB deployment and the physical material recovered in that borehole. That field report supports the tool-family concept but doesn’t supply a general flow, pressure, or debris-size limit. Commercial model tables also show that body outside diameter, mill-shoe outside diameter, catch range, hole range, ball size, and connection vary by model.

That variability is exactly why this guide publishes no family-wide operating number.

Junk-basket drilling discussions sometimes collapse three separate questions: can the material be loosened, can fluid transport it, and can the catcher retain it?

This type of fishing tool is only plausible when all three paths are credible. Likewise, a junk sub isn’t automatically the same device or recovery mechanism as a reverse-circulating junk basket.

Search language also overlaps. Phrases such as “junk basket drilling,” “junk basket fishing tool,” “reverse circulating junk basket,” and “junk sub” can point to different mechanisms, so the service context must remain explicit.

System boundary

Debris control elsewhere in the string can be relevant, but it doesn’t replace the basket’s recovery logic. For example, a drill pipe screen belongs to a different equipment role and shouldn’t be described as a substitute for an RCJB.

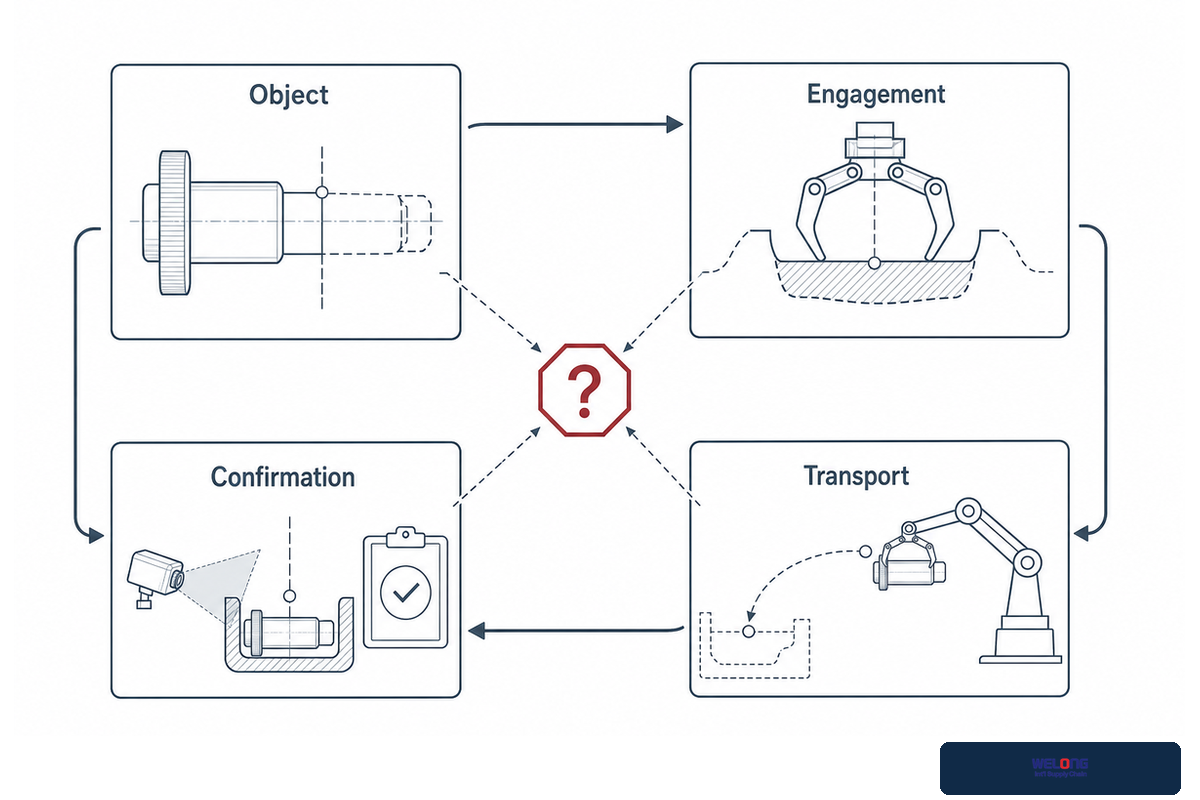

The 4-Factor Catchability Boundary Canvas

Welong’s 4-Factor Catchability Boundary Canvas synthesizes the reviewed field reports, mechanism records, and scope limitations. It is not an API or ISO standard. Its purpose is to expose an unknown that would invalidate an otherwise neat tool choice.

1. Object form

Continuous fish, fragmented components, gravel, cuttings, or mixed debris?

2. Engagement surface

Is a usable outside or inside surface accessible, or is the top split, buried, bridged, or obstructed?

3. Transport path

Can loose material move to a catcher, and are fill or restrictions likely to block the path?

4. Confirmation path

What planned surface response, recovered object, or post-run inspection would distinguish success from drag or blockage?

Guidance here is intentionally conservative: if a needed path isn’t known, choose “collect more evidence,” not a forced overshot or junk-basket selection. Better camera evidence, an impression, a debris sample, past-run history, or improved geometry can shift the object model before the tool changes.

Expedition 360 illustrates these boundaries. Successive junk-basket and fishing-magnet trips produced different results on multiple roller cones and other objects. One later RCJB trip retrieved a missing cone; a later magnet recovered a different, heavily abraded cone stuck in the drill bit. Separate IODP operations reports hosted by Texas A&M document an object-specific overshot recovery and a junk-basket debris recovery. The evidence doesn’t make either tool family a universal winner. Material, location, and accessibility can shift the job into an adjacent recovery path.

Do not increase certainty just because the tool name is familiar. Increase certainty by closing the object, engagement, transport, and confirmation gaps.

— 4-Factor Catchability Boundary Canvas

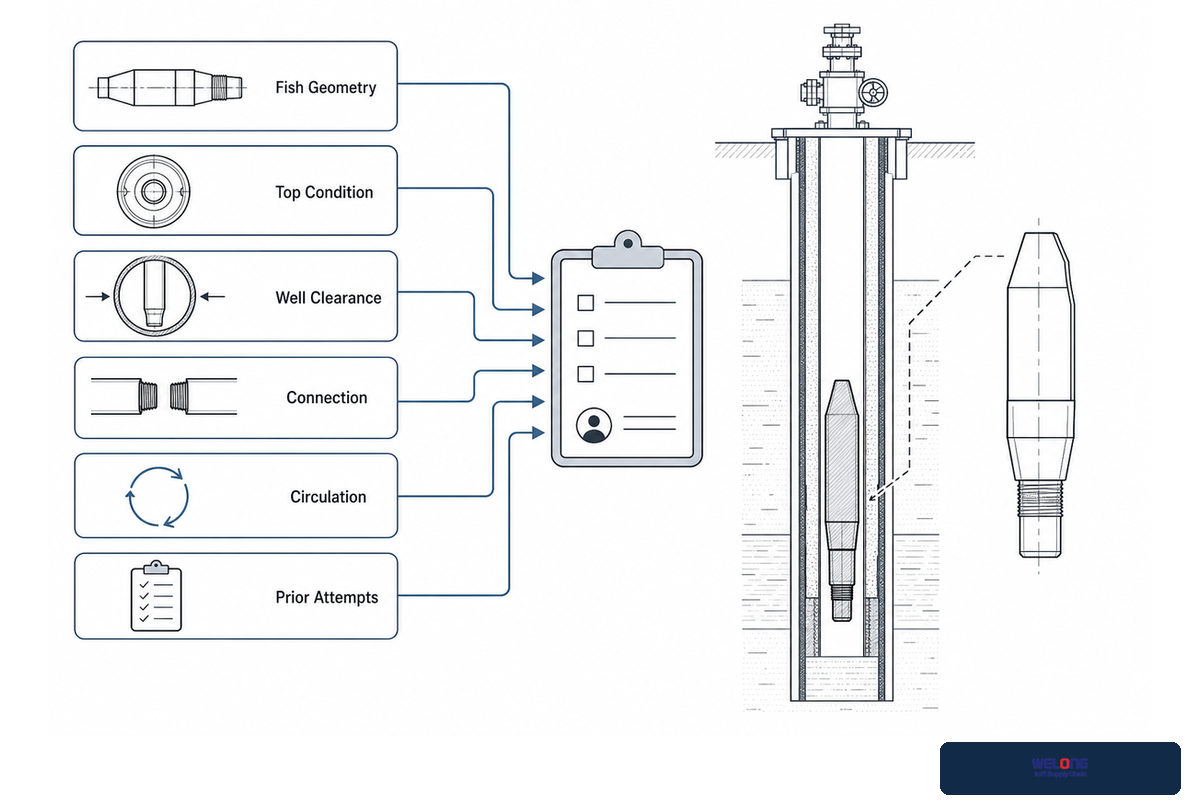

Pre-Job Data That Prevents a Misrun

Selection failures often begin as information failures. Nobody can responsibly step from “stuck pipe” or “junk in hole” to a configuration without the fish geometry, hole context, and a valid recovery hypothesis. Use the worksheet that follows to gather inputs, not as a substitute for an approved work program.

Overshot/Junk Basket Pre-Job Data Worksheet

Describe target: continuous, fragment, mixed, magnetic, or unknown and how this determination was made.
Record fish geometry: available outside and inside dimensions, fish-top condition, accessible length, and any split, flare, taper, or other obstruction.
Record well geometry: hole or casing ID, any restriction in ID, deviation context, depth reference, and any fill or bridge.
Define the interfaces: planned string, required connection(s), relevant crossovers, and the specification or drawing revision controlling the interfaces.
Describe circulation: whether a fluid path exists, what can hinder debris transport, and any returns or losses noted.
Define confirmation: expected surface response, evidence from the recovered object, basket-content inspection, and post-run tool inspection.
List previous attempts: tool used on each attempt, observed response, material recovered, and changes supporting the new hypothesis.

Even official API update records and the ISO 10424-1 lifecycle record show why “manufactured to a standard” is inadequate when the edition, scope, addendum, or withdrawal notice isn’t identified. Pages reviewed for this guide concern rotary drill-stem elements and do not certify overshots or junk baskets; they serve as a document-control reminder, not product approval.

Engineering Note

The data package should separate source evidence from tolerance fields. Include measured fish outside/inside dimensions and their uncertainty; whether the fish-top shape is known or estimated; the minimum accessible length; any casing or hole restrictions; the specification or drawing revision governing the string connection; and the revision of the exact applicable specification. If the listed API or ISO document does not address the fishing tool, explicitly note that limitation in place of borrowing the document’s authority.

Selection language that changes the recommendation

Identify the exact fishing tool deployed on each trip; “fishing tool used” is insufficient. State the drill string, top sub, and the presence or absence of a riser or crossover in the recovery path. Record whether the target is at the bottom of the hole or higher in the wellbore. Lower confidence when the fish top is ill-defined, the measured value suggests a smaller OD, or an irregular, damaged surface can prevent an overshot grapple from obtaining a usable grip.

For a basket route, distinguish small pieces of junk from one continuous object. Small junk can break into smaller pieces, remain behind the catcher, or be washed away before inspection. Record the mud-pump and circulating-fluid context, but don’t infer pump pressure from a competitor page or generic drilling manual. Check the selected tool against its own approved program.

Adjacent functions also need separation. For example, a junk mill can alter or reduce an obstruction; it isn’t the same fishing-tool type as a basket. Bit cones and other debris can be magnetic, mixed with nonmagnetic material, or lodged where circulation can’t transport them. Those facts decide whether debris collection, magnetic recovery, milling, or another engineered path deserves review.

A High-Level Fishing Sequence and Surface Confirmation

In the field, the primary risk is treating a generic sequence as a job program. This article can’t prescribe torque, pull, set-down weight, pump rate, pressure, rotation, or trip speed for an unidentified assembly. Those values depend on the well, fish, string, selected tool, and approved operating program. What transfers across fishing operations is the planning sequence:

Prepare: verify the object model, drawings, tally, interfaces, limits, contingency, and expected confirmation evidence.
Run in: approach the target under the job program while monitoring for a response that contradicts the expected access path.
Engage or circulate: execute the selected family’s model-specific procedure: external engagement for an overshot route or fluid-assisted collection for an RCJB route.
Confirm: compare the observed surface response with the planned signal rather than interpreting any change as a catch.
Retrieve and inspect: reconcile the recovered fish or basket contents, tool condition, and remaining downhole uncertainty.

How do you know on the surface if the overshot has latched onto the fish?

No single universal surface signal proves a catch. Changes in string weight, movement, rotation, pressure, or returns can have more than one cause, including drag, fill, blockage, or partial engagement. The job plan should define the expected response for the selected assembly and the confirmation check. Final confirmation comes from the complete evidence chain, including recovered hardware and inspection, not from one gauge change in isolation.

For example, a bumper sub can appear in an adjacent fishing-string discussion, but it has its own function and limits. Its presence doesn’t prove that the catch tool below has engaged.

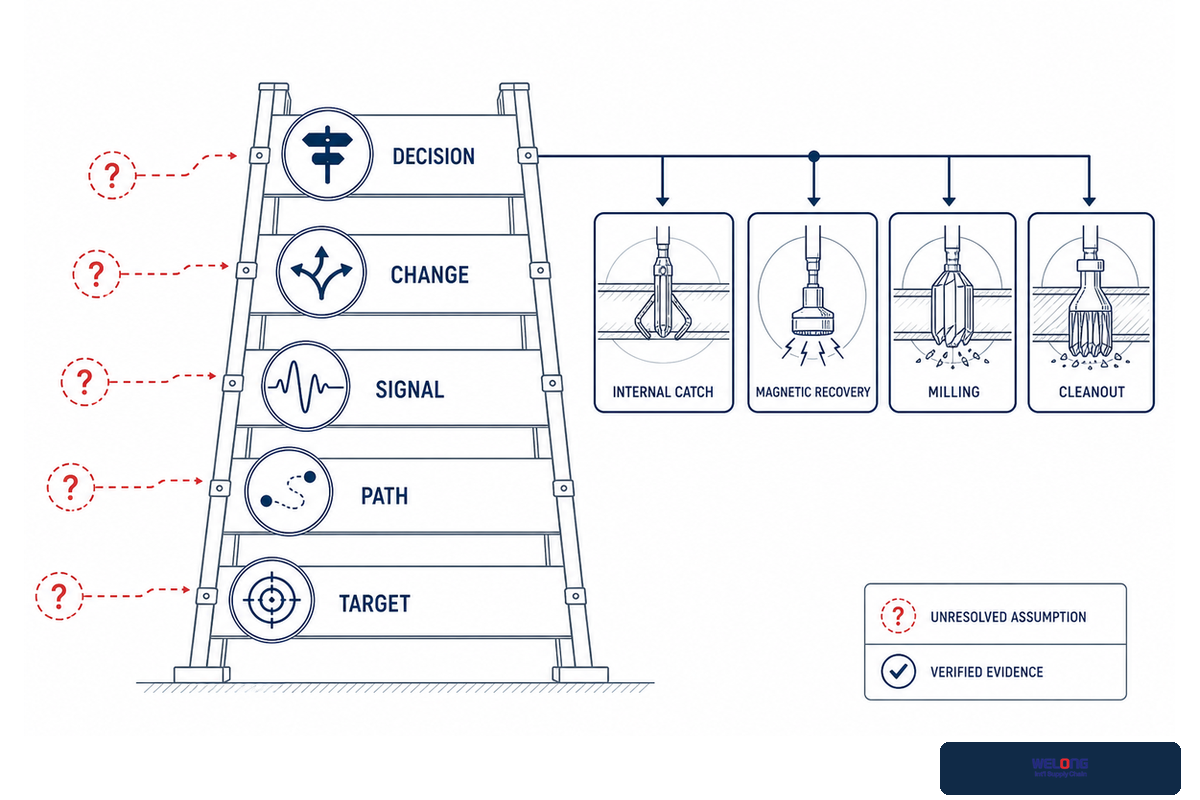

The 5-Step Recovery-Path Triage Ladder

In practice, an unchanged repeat risks preserving a failed recovery hypothesis. The 5-Step Recovery-Path Triage Ladder is a diagnostic framework, not a universal operating sequence or fixed instruction to abandon a job.

Step 1 – Reconfirm the object model. Did the run recover material, change the likely fish top, or show that the target is fragmented rather than continuous?

Step 2 – Recheck the path. For an overshot, reconsider access and engagement surface. For a basket, reconsider loosening, circulation transport, and retention.

Step 3 – Compare signal with expectation. Separate the planned catch indication from drag, packed fill, restricted movement, or another plausible cause.

Step 4 – Change the hypothesis before only changing effort. Ask what new evidence justifies another run and whether the load case, string condition, or target geometry has changed.

Step 5 – Escalate to the correct specialist path. Consider an internal catch, magnetic recovery, impact, milling, cleanout, or another engineered route when the evidence moves outside the original two-tool boundary.

OSHA records a fatal well-servicing incident in which the same force was reused after more than twenty joints had been removed, without recalculating the changed rig load. That event isn’t an overshot procedure, but it’s strong evidence for one narrow principle: changed string and load conditions require reassessment, not automatic repetition.

For an accessible inside surface, a die collar for an internal catch can belong in the discussion. Suitable ferromagnetic debris can call for magnetic recovery. An impact route can involve a super hydraulic fishing jar. These are adjacent paths, not interchangeable versions of an overshot or junk basket.

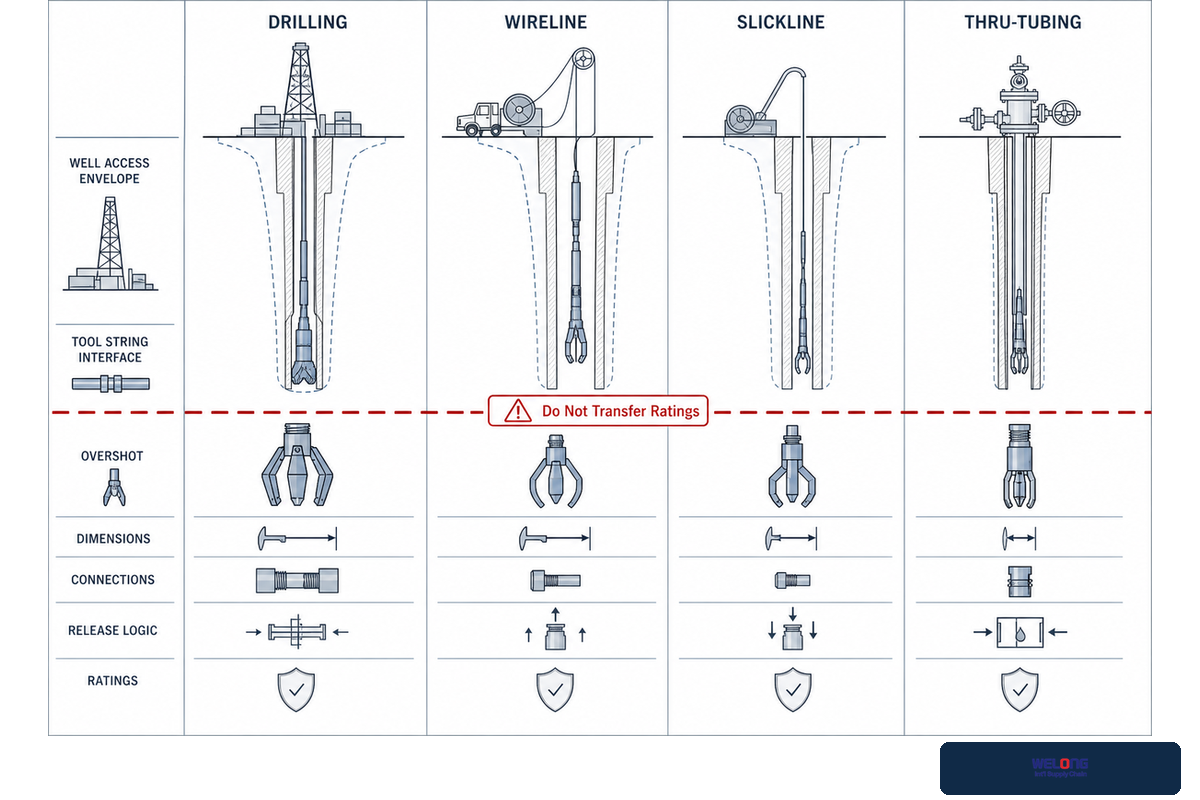

Drilling, Wireline, Slickline, and Thru-Tubing Scope Boundaries

For a supplier or operator, the risk is assuming that one shared name defines one application. “Overshot” describes a catch concept in more than one intervention context, but it doesn’t guarantee shared dimensions, interfaces, release logic, ratings, or operating practice. Drilling, wireline, and coiled-tubing overshots can all engage an object while belonging to different systems.

The thin-wall/coiled-tubing overshot patent is useful precisely because its scope is specific. It shouldn’t be read as a specification for a drilling overshot. Apply the same caution to “junk basket,” “circulating junk basket,” “junk sub,” and related terms: resolve the service context before transferring a mechanism or value.

Shared concept: recover an unwanted downhole object through a defined interface or transport path.
Do not transfer by name alone: dimensions, connection, load, pressure, circulation program, release procedure, or acceptance criteria.

From Diagnosis to Overshot or Junk Basket Specifications

Once the target and recovery path are defensible, the commercial handoff becomes straightforward: package the worksheet, state the chosen tool-family hypothesis, identify the required interfaces, and request a model-specific review. This is the point to compare overshot and junk basket sizes and configurations without forcing those tables into an informational guide.

For buyers coordinating documentation, inspection, and supplier communication, the separate guide to sourcing oilfield equipment from China provides the procurement context. The technical recommendation should still be tied to the actual job inputs and approved by the responsible fishing specialist.

Reviewed by the Welong technical team.

Frequently Asked Questions

What is the main difference between an overshot and a junk basket?

An overshot fishing tool externally engages a defined fish through a usable outside surface. A junk basket collects loose debris through a circulation-assisted path and catcher. Select the recovery family from the target form and available path before comparing sizes, connections, or models.

Can a junk basket recover a stuck drill pipe?

No. Stuck drill pipe is a continuous tubular fish, so crews normally evaluate an external or internal catch route rather than a junk basket. A basket becomes relevant only for loose, transportable debris that can enter and remain within its collection path. Confirm fish geometry, accessible surface, surrounding restrictions, string condition, and the planned confirmation signal. If those inputs are uncertain, gather diagnostic evidence before choosing a tool family and have the responsible fishing specialist review the recovery hypothesis.

How do you know on the surface if an overshot has latched onto the fish?

Compare the observed response with the model-specific job plan. Movement, string weight, torque, pressure, or returns can reflect drag, fill, blockage, partial engagement, or a catch. Confirm the result through trip-out evidence, recovered hardware, and post-run inspection; no single surface change is definitive.

What is a reverse-circulation junk basket?

A reverse-circulation junk basket is a downhole fishing tool that directs fluid so loose debris moves toward a collection chamber, where a catcher helps retain it during retrieval. An IODP operations report records a job-specific junk-basket run and recovered debris; it does not establish a universal operating setting. It is suitable only when the debris is loose, transportable through the available flow path, and retainable by the selected assembly. Model-specific operating values still come from the approved job program.

What information is needed to select an overshot or junk basket?

Provide the target description, fish dimensions, fish-top condition, accessible length, hole or casing geometry, restrictions, connection data, circulation path, debris form, and results of previous attempts. Mark unknowns explicitly, include the governing drawing or specification revision, and state what evidence will confirm recovery.

When should you stop repeating the same fishing run?

No universal attempt count or time limit applies. Review the evidence after each trip out. If the last run adds no support to the object model and nothing has changed in the load case, string condition, target geometry, or recovery hypothesis, an unchanged repeat is hard to justify. Gather better diagnostic data or have the responsible specialist reassess internal-catch, magnetic, milling, cleanout, or other engineered routes. Document why the revised path addresses the last run’s evidence.

References & Sources

This guide separates field-event records, mechanism evidence, standards-scope pages, and model-specific commercial data. IODP operations aren’t presented as universal operating values, and patent filings aren’t treated as proof of field performance. Tool finalization and operating data belong to the responsible fishing specialist and the approved fishing plan.

How Drilling Mud Motors Work in Directional Drilling

Cherry — Wed, 22 Jul 2026 06:19:19 +0000

Drilling Mud Motor Field Guide (2026): Components & Limits

Downhole drilling tools guide

A Drilling Mud Motor is a positive displacement downhole drilling motor that turns drilling mud flow into bit rotation. This 2026 field guide explains the rotor, stator, bearing assembly, flow rate, differential pressure, torque, failure risk, and the point where rotary steerable systems may be the better tool.

Quick Specs Before You Read

This blog is not the product selector. Welong’s drilling mud motor model selector already owns model, inspection, and quote intent. At the time this workflow fetched the linked solution page, it listed 8 model entries and boundaries including 1 7/8 in to 9 5/8 in hole-size use, up to 2280 N-m working torque, 0-6 T bit pressure, 120-150 deg C rated temperature, and 0-3 deg adjustable bent housing options. Verify the live selector before using those values in an RFQ.

Use this guide to understand what those fields mean before sending an RFQ. Use the product page when the well plan is ready for supplier review.

Search paths differ by reader. A buyer comparing a downhole mud motor, directional drilling mud motor, HDD mud motor, or mud motor drilling setup needs mechanism, risk, and RFQ context before product selection. Readers searching for a drilling mud motor diagram, drilling mud motor price, or Drilling motor Power Section should use this guide for the working principle and the selector for quote intent. Honest tradeoff: this article will not claim the motor is always cheaper, because the common assumption fails when slide time, drag, hole cleaning, or RSS alternatives change the section cost.

What a Drilling Mud Motor Does Downhole

In the bottom-hole assembly, a mud motor sits between the drill string and the drill bit. Drilling fluid from the mud pumps flows through the tool. Hydraulic energy becomes mechanical rotation inside the power section, so the drill bit can turn downhole even when the full drill string is not rotating from surface.

SLB’s positive displacement motor glossary gives the clean authority definition: drilling fluid powers a downhole motor and the motor sends mechanical power to the drill bit. Simple definition, hard field decision. Every driller still has to match flow rate, differential pressure, bend angle, formation response, and bearing load.

One common assumption is that a directional drilling mud motor is only a steering device. Too narrow. In motor drilling, it also changes bit energy, rate of penetration, and surface interpretation. If the motor stalls, the bit stops first; surface rotary behavior may still mislead the crew. For that reason, this guide treats a downhole mud motor as a power, steering, and risk-control tool.

For product intent, route back to Welong drilling mud motor specifications. For education, keep reading here.

How the Rotor-Stator Power Section Turns Mud Flow into Bit Rotation

Inside the power section, a steel rotor runs inside an elastomer-lined stator. Different rotor and stator lobe counts create sealed cavities. As drilling fluid moves through those cavities, the rotor follows eccentric motion and sends rotation through the transmission to the bit. That is the positive displacement principle.

How does a drilling motor work?

Positive displacement drilling motor work starts when drilling mud is forced through the rotor-stator cavity set. Flow creates motor speed; pressure drop creates force that becomes torque. Output is not a universal rpm rule. Rotor/stator geometry, lobe count, mud density, solid load, temperature, and the supplier power curve all matter.

Data quality is the reason this matters. Patent work on drilling motor power output ties differential pressure, torque variation, and motor rotation rate together. A 2024 IntechOpen chapter on positive displacement motor condition prediction also frames surface and downhole data as the basis for motor health, not just a post-run report. In practice, a 300 psi or 400 psi signal is only useful when the crew knows what normal looks like for that motor setup.

For an industrial buyer, the risk is not academic. A 300 psi pressure shift, 80 rpm speed target, or 24 hours run plan can mislead the crew if the hydraulic application is not tied to the supplier curve. Welong should confirm the motor curve, stator fit, and inspection basis because a wrong setup can fail before the field team sees a clear surface warning.

Honest version: a mud motor will not turn poor hydraulic planning into a clean run. If pump output, nozzle pressure loss, annulus pressure loss, and motor pressure drop are mixed together, the crew may treat a normal load change as a stall or miss a real stall until stator damage has started.

Main Components: Power Section, Transmission, Bearing Assembly, Bent Housing

Before reading a spec sheet, the buyer should know which parts drive risk. Welong engineers usually ask for the well section, hole size, bit program, mud type, connection, flow window, and desired bend angle before a motor is quoted because each component has a different failure path.

Component	Main job	Field check
Power section	Converts hydraulic flow into torque and rpm	Match flow rate, pressure drop, stator fit, and temperature.
Rotor	Runs eccentric motion inside the stator	Check lobe count, wear, coating, and connection fit.
Stator	Creates sealing cavities for positive displacement	Check oil-based mud, 120-150 deg C exposure, and swelling risk.
Transmission	Transfers rotor motion to the drive shaft	Check bend angle and side-load limits.
Bearing assembly	Carries axial and radial bit load	Check weight on the bit, mud lubricity, and expected run hours.
Bent housing	Sets steering tendency in sliding mode	Confirm 0-3 deg need against dogleg and BHA plan.
Connections	Join the motor into the drill string	Use the connection checker before purchase.

API Spec 7-1 enters the conversation here. It is not a mud motor power-curve rating; it is an adjacent drillstem-interface standards area. Because edition, errata, and addendum records can change, check the current API publication record, connection data, and the supplier drawing together instead of treating a thread label as the full evidence package.

Flow Rate, Differential Pressure, RPM, and Torque: How Performance Is Set

Flow rate, differential pressure, rpm, torque, and horsepower are linked, but not interchangeable. Flow mainly sets speed. Differential pressure reflects load. Torque rises with load until stall risk appears. Horsepower depends on both torque and speed. A supplier curve is the governing source because two motors with the same outside diameter can behave differently when the number of lobes, elastomer fit, and flow window change.

Drilling Manual guidance discusses pressure allocation and motor operating pressure, while academic modeling has reported less than 6% average error under a 300 psi differential-pressure condition. Those numbers should not be pasted into an RFQ as universal values. They show why pressure, torque, and rpm must be read as a connected system.

Reading	Why it matters	Check before use
300 psi	Modeling benchmark cited for pressure-error control	Do not treat it as the motor limit.
400 psi	Example load signal in condition work	Confirm against supplier curve.
500 psi	Selection-context pressure note	Separate motor drop from nozzle loss.
1.5 MPa	Pressure plan marker for hydraulic review	Check pump margin.
2.0 MPa	Load-change warning band	Set a stop-running rule.
80 rpm	Low-speed motor response check	Confirm bit rpm, not only rotary rpm.
120 rpm	Common mid-range planning marker	Match bit and formation.
180 rpm	High-speed wear-risk marker	Review bearing load.
50%	Possible pressure-allocation share	Keep annulus and nozzle loss separate.
60%	Upper allocation check in planning	Leave margin for cuttings load.
24 hours	Run-life planning interval	Ask for inspection record before re-run.
30 min	Short slide-decision review interval	Recheck toolface and drag trend.
60 sec	Rapid stall-response marker	Train crew response before run.
3.4 MPa	High hydraulic-stress review point	Check stator heat and bearing load.
6%	Model-error benchmark from literature	Treat as source-specific, not universal.

For a Welong RFQ, use the flow range, expected differential pressure, bit size, hole size, motor bend angle, and temperature together. If you already know the drill pipe and bottom-hole assembly envelope, compare it with the drill pipe baseline and the drill collar guide.

Where Mud Motors Win: Directional, Horizontal, HDD, and Hard-Formation Runs

Directional drilling mud motor value appears when downhole bit power and steerability solve a real section problem. The tool may fit build sections, tangent corrections, horizontal directional drilling, and hard-formation intervals where surface rotation alone is not enough. Local bit rpm can also improve penetration when high drill string rpm is not wanted.

4-Window Mud Motor Fit Map for Tool Choice

Window	Use case	Motor fit signal	Warning sign
1	Build section	Defined dogleg, short slide interval, clear target	Long slide time creates drag.
2	Horizontal hold	Bit needs local rpm while drill string rotation is limited	Hole cleaning becomes weak.
3	HDD crossing	Steerable mud motor helps maintain path in hard ground	Fluid window is tight.
4	Hard formation	Bit energy rises without excess surface rpm	Stall cycles rise.
5	Correction run	Short directional control task	RSS may beat repeated trips.
6	Budget-limited well	RSS value does not repay cost	Cheap choice adds wellbore cost.
7	MWD-limited BHA	Motor geometry leaves enough signal and spacing	Toolface control is unstable.
8	Inspection-driven purchase	Supplier can document stator, bearing, and connection checks	Only a price sheet is offered.
9	Spare tool planning	Known hole size and flow window repeat across wells	Mixed thread and bend specs create warehouse risk.

Familiarity is the trap. A field note that “you lose a lot of the weight to drag on the low side of the hole” explains why slide time can erase the price gain. Welong can supply the tool, but the well plan still has to prove that motor drilling is the right call.

Mud Motor vs Rotary Steerable System: The Boundary, Not a Winner

Mud motor versus rotary steerable system is not a brand contest. Think of it as a boundary. For many directional drilling operations, the motor may be the lower-cost tool. RSS may be the better choice when continuous rotation, cleaner wellbore geometry, and steering precision change the economics. Some hybrid or assisted steering systems sit between conventional sliding motors and full RSS, so the RFQ should ask what steering method is being compared.

Expert note: Drilling Contractor’s 2026 RSS coverage frames the issue around higher RSS cost, faster wells, and rising complexity. That frame matters: the tool that looks expensive at surface may be justified if it prevents slow sliding, cleanup risk, or a poor wellbore.

What are the differences between mud motor and RSS in directional drilling?

Steerable mud motor work uses a bent housing and slide/rotate control. RSS steers while rotating, which can help hole cleaning and reduce tortuosity. Trade press has reported cases where high-performance mud motors can save operators more than 50% per day over using an RSS, while other wells justify the RSS premium through speed and precision.

Decision factor	Mud motor question	RSS question
Tool cost	Will savings survive slide time?	Will cost buy enough time or wellbore quality?
Steering	Can bent housing and toolface control hit target?	Does continuous steering reduce risk?
Hole cleaning	Will sliding trap cuttings?	Does rotation solve a section risk?
BHA complexity	Are MWD spacing and connection limits clear?	Can the crew support extra tool planning?

JPT/SPE guidance also notes that slide-drilling optimization differs between RSS and mud-motor setups because the mud motor adds cost functions and constraints. Counter-intuitive point: a motor is not always the simpler plan once the whole well section is counted.

Common Failure Modes: Stator Chunking, Debonding, Plugging, and Temperature Swell

Use the Rotor-Stator-to-Run-Risk Ladder to move from mud chemistry, to fit, to load, to heat, then to inspection. Failure rarely begins as a neat label. Early signals often appear as rising differential pressure, unstable torque, reduced rate of penetration, or a stall pattern that gets explained away until the stator or bearing section is damaged. Behind those symptoms are driver groups: rotor/stator design, elastomer material, drilling fluid chemistry, motor speed, differential pressure, and downhole temperature.

9-Row Mud Motor Failure Mode Table

Type	Failure mode	Likely field signal	What to request
Elastomer	Stator swelling	Higher pressure at same flow	Mud type and 120-150 deg C rating check
Elastomer	Chunking	Torque noise and flow restriction	Stator inspection record
Bond	Debonding	Power loss and rubber debris	Manufacturing and heat history
Hydraulic	Plugging from solid load	Pressure spike at stable pump rate	Lost circulation material plan
Load	Stall damage	Repeated pressure peaks	Differential pressure limit and response procedure
Bearing	Axial overload	Vibration, wear, short run life	WOB, bit plan, bearing assembly data
Geometry	Excess bend side-load	Steering gain with mechanical risk	0-3 deg bend review
Connection	Thread mismatch	Make-up delay or rejection	Connection drawing and gauge check
Operations	Wrong surface reading	Bit response differs from screen story	MWD, bit rpm, and rotary rpm review

Oil-based mud, high temperature, annulus loading, and weight on the bit all change this table. Welong’s inspection handoff should be read with the mud program, not as a stand-alone sales claim. If jars are part of the assembly, compare the motor plan with the drilling jars guide.

How to Read a Mud Motor Specification Before Asking for a Quote

Start a mud motor RFQ with the well section, not with the cheapest model line. Your specification should state hole size, bit size, connection, motor outside diameter, bend angle, flow rate, expected differential pressure, mud type, temperature, formation, and inspection need. One missing field can turn a fast quote into a wrong configuration.

Welong’s linked solution page was used as first-party workflow context, not as an independent industry benchmark. It gives the reader a sense of model range and operating fields, while the live product page remains the right place for the full table and current values. This blog uses those fields only to explain what a buyer should check.

For a field application, the evidence chain is practical: a missing connection drawing, a 500 psi pressure assumption, or a 120 rpm bit-speed target can push the wrong motor into the RFQ. Welong can review the spec, but the buyer still needs to state the drilling operation, mud type, and inspection record expected before price is discussed.

For heavy bottom-hole assemblies, compare motor fit with the heavy weight drill pipe guide. For cleanup or wellbore conditioning after casing work, review the casing scraper notes. The goal is to make the motor one part of a tool string, not a lonely SKU.

RFQ handoff: Send hole size, bit type, flow window, differential pressure target, connection, bend angle, mud type, temperature, MWD spacing, and required inspection record. Then ask the supplier to confirm the motor curve and connection drawing before price.

Field Checks Before Running a Mud Motor in the BHA

Before the motor is run, the team should check the BHA like a system. Motor connections include drill pipe, collars, MWD, bit, jars, stabilizers, and surface pumps. A 1 in mismatch, an unplanned 500 psi pressure loss, or a missing thread drawing can create avoidable delay.

Confirm bit size, hole size, and motor outside diameter.
Confirm connection and torque make-up data with drawings.
Check flow of the drilling fluid against motor curve and nozzle plan.
Check expected differential pressure, stall procedure, and pressure trip points.
Check bend angle, MWD spacing, and directional control plan.
Check mud type, solid load, oil-based exposure, and lost circulation material.
Check weight on the bit, bearing load, and expected run hours.
Check post-run inspection requirements before the tool ships.

Field checks also protect content intent. If the reader has reached this point, they likely need a supplier conversation. Use the mud motor model selector or open the RFQ popup with the checklist above.

What Is Changing in 2026: Reliability Models, Sensors, and RSS Coexistence

For 2026, the angle in this article is not a big growth claim. DataForSEO trend data for this keyword group showed no rising count and a September 2025 spike, so the safer story is reliability and decision support. Useful change is coming from condition prediction, downhole sensor data, and better surface interpretation.

In the field, that means the next buyer question is not only “What model?” It is “What hydraulic data, rpm window, 300 psi or 400 psi pressure behavior, and post-run inspection record will prove the motor stayed inside its working envelope?” Welong’s role is to connect those data points to the tool record rather than treat reliability as a slogan.

IntechOpen’s 2024 work on positive displacement motor condition and performance prediction points to surface and downhole data, while the patent trail connects motor power output to differential pressure, torque variation, and rotation rate. That is where the next buyer questions should go: What data will the supplier use, what curve will the rig team see, and what is the stop-running rule when pressure behavior changes?

RSS will keep improving. Mud motors will still hold a place where cost, field familiarity, and bit power matter. The right call is not always the most advanced tool; it is the tool whose risk profile fits the section. For the boundary conversation, Welong’s PDM and RSS fit guide can sit beside this article in the internal link path.

FAQ

What is a drilling mud motor?

Drill Pipe: Grades, Sizes, Standards, and How Classification Works

Cherry — Tue, 21 Jul 2026 09:38:14 +0000

Quick Specs

Outer Diameter Range	2⅜” to 6⅝” / 60.3mm to 168.3mm (regular drill pipe, API 5DP)
Standard Lengths	Range 2: 29-32 ft / 8.8-9.8m \| Range 3: 40-45 ft / 12.2-13.7m
Steel Grades	E75, X95, G105, S135 (min. yield strength, ksi)
Governing Standard	API Spec 5DP (body) / API RP 7G-2 (used-pipe classification)
Material	High-strength low-alloy (HSLA) steel, typically 4130/4137-family

The hollow, threaded steel tubing that makes up the bulk of the drill string, connecting the rig floor to the drill bit thousands of feet down, drill pipe is designed to transfer drilling torque to the drill bit and to carry drilling fluid from the rig to the drill bit and through its bore, respectively and section by section, allow an operator to drill a well that’s miles deeper than the pipe itself is long.

Drill pipe is API 5DP-specified, hollow, threaded steel tubing forming the backbone of a working drill string, it connects the drill floor to the bottom-hole assembly thousands of feet below. This tubing carries both rotation and torque to the bit from the drill rig, while it serves as the conduit for drilling fluid, allowing it to circulate from the rig down through the bore of the pipe and out to the bit, where it exits the string to carry cuttings back to the surface in the annulus, a fluid-flow path that drills through varied geological formations. Made in joints of roughly 29 to 45 feet, drill pipe accounts for the majority of a working drill string’s length across most types of drilling.

Key Facts

Demand for “drill pipe inspection” (+40% YOY) and “used drill pipe” (+75% YOY) is up more than the decline in general pipe-shape spec-shopping: buyers care less about new pipe price, more about condition.
drill pipe grade names reflect yield strength in thousand-psi (ksi): from the relatively weaker E75 up to S135 for higher pressure, high strength applications.
After the first use, the pipe will forever carry the designation of Used; there’s no upgrade available from Used.
Based on data from a large North Sea field, actual fatigue-life of drill pipe can be predicted with published fatigue-life models only 20% of the time.
“used drill pipe” in search traffic doesn’t solely represent pipe being purchased for downhole use; a significant chunk of it’s used pipe that has been purchased for the fence or construction markets, and isn’t relevant for drilling operations.

What Is a Drill Pipe?

Drill pipe is long, hollow-threaded steel tubing fabricated to API Spec 5DP and designed to withstand the torque and pressure of a working drilling operation. Each length is finished on both ends with a forged, welded tool joint and assembled, in the shop or on the drilling rigs, into strings hundreds of joints long in wells thousands of feet deep. Drill pipe makes up the overwhelming bulk of the drill string’s length, from the rig floor to the bottom-hole assembly.

Understanding drill pipe in these terms also clarifies why drill pipe serves a role no other tubular in the string can substitute for, and why choosing the right drill pipe — not simply the right pipe by size alone — is the first real engineering decision in any string design.

While on the drill floor, the drill pipe’s inside carries torque down the wall to spin the bit, while simultaneously circulating drilling fluid down its bore, out the bit and carry cuttings back up to the surface. If a length of drill pipe breaks at any point in the drill string, it will cut off both rotation and fluid circulation at once — a real risk that can cost a rig 2-3 days of downtime while the string is fished out, because a parted joint downhole cannot simply be reconnected — and has, as a result, one of the most stringent inspection protocols of any piece of equipment in use today. Manufacturers like China Welong engineer their drill pipe body and tool joint specifically to reduce that failure risk across real oilfield applications, not just to pass a paper spec.

It isn’t the only tubular in the string, though. Regular drill pipe makes up most of the string’s length, but it works alongside heavier-walled components positioned closer to the bit, a distinction covered in the next section.

💡 Key Takeaway

drill pipe have two fundamental purposes: transmit torque and circulation fluid, to the well bore. Everything about a joint of drill pipe (the steel grade, size, joint style, etc.) supports these two essential functions at depth.

Drill Pipe Anatomy: Body, Tool Joint, and Its Place in the Drill String

A drill pipe joint has three structural sections: the tube body (consistent wall thickness over most of its length), the upset (a widened transitional zone at each end where the wall is thickened to support threading), and the tool joint (a separate Forged/Heat-Treated steel collar welded onto the upset where the real API connection thread resides). It’s at the tool joint – not the pipe body – that virtually all thread-related failures originate, as this is the only part of the joint to see make-up and break-out torque repeated times.

What Is the Difference Between Drill Pipe and a Drill Collar?

Drill pipe, Heavy Weight Drill Pipe (HWDP) — sometimes called heavyweight drill pipe — and drill collars share the same drill string but play distinct roles. Regular drill pipe is thin-walled, working primarily in tension at the top of the string. Drill collars are heavy-walled tubulars above the bit, placing weight on the bit (WOB) in compression. HWDP — thicker than drill pipe, lighter than a collar — sits between them, buffering the bending stress where stiffness changes abruptly.

Mismatches between a component’s role and its position in the broader drilling system are serious engineering mistakes, not trivial labeling differences across different pipe types: inserting one of the heavier drill collars directly into a thin-walled string, for instance, concentrates cyclic stress across the entire drill string exactly where it’s most likely to fail — the connection — undermining the structural integrity the transition zone is meant to protect.

Drill pipe, HWDP, and drill collars occupy different zones of the same drill string, separated mainly by wall thickness and OD range.
Component	Typical OD Range	Primary Role	String Position
Regular Drill Pipe	2⅜”–6⅝”	Torque + fluid transmission, tension	Bulk of the string, surface to transition zone
Heavy Weight Drill Pipe (HWDP)	3½”–6⅝”	Fatigue-resistant transition zone, ~2x weight/ft of regular pipe	Between drill pipe and collars
Drill Collar	3″–11″+	Weight on bit (compression), 3-4x weight/ft of regular pipe	Bottom-hole assembly, just above the bit

“The most common place for drill pipe to fail is in the threads, and the most common way threads become damaged is from debris left in the connections during handling.”

Field-reported failure pattern, drill string inspection literature

For example, a driller in the Permian Basin, after tripping out of a long horizontal section, may be surprised to find early signs of wear in his connection at the tool joint shoulder rather than at the pipe body – another good point to remember before concluding you’ve a “bad batch” of pipe when it’s actually handling debris or an under-torqued connection.

Drill Pipe Grades and Steel Metallurgy Explained

Four standard steel grades of drill pipe are recognized by API 5DP – E75, X95, G105 and S135 – with a designation which indicates the minimum yield strength in thousands of psi; for example, S135 will yield at a minimum of 135,000 psi, while E75 will yield at a minimum of 75,000 psi – nearly twice as strong. The pipe steel is usually a high-strength, low-alloy steel (HSLA) of the 4130/4137 family of chemistries, chosen for its strength, toughness, durability, fatigue resistance, and weldability at the tool joint — the same connection whose joint-thread mechanical properties under complex loads a 2024 peer-reviewed study analyzed in detail. Choosing the right grade for your specific drilling program, based on the conditions encountered during drilling — not merely selecting the largest number — will extend pipe longevity in the oil and gas industry, especially for demanding drilling programs in directional and horizontal drilling.

Drill pipe grade names directly encode minimum yield strength — S135 carries nearly 1.8x the load rating of E75.
Grade	Min. Yield Strength	Typical Application
E75	75,000 psi	Shallow, low-torque vertical wells
X95	95,000 psi	Moderate depth, general-purpose drilling
G105	105,000 psi	Deeper/directional wells, higher torque loads
S135	135,000 psi	Deep, extended-reach, and high-torque directional/horizontal wells

Higher grade isn’t automatically the better choice. S135, on the contrary, is significantly more prone to corrosion fatigue failure in corrosive environments and sour service conditions. The crack growth rate under sour conditions can be about ten times greater than in air. Conditions can be even worse under rotation: published research on rotating specimens (60 rpm) found a 41% higher corrosion rate under rotation than under static exposure, and a separate, recent analysis identified a failure in an S135 pipe, which met all of API Spec 5DP’s physical specifications, as being driven by combined corrosion and stress concentration in the thread region. If your application is a sour well, it may be better off served by lower strength steel, which will accommodate an corrosion resistant coating and NACE metallurgical qualifications, than a blanket, generic Spec 5DP S135 string-a real engineering trade-off.

📐 Engineering Note

A physical spec alone doesn’t make S135 the correct answer, because it only specifies physical and chemical properties and doesn’t directly account for in-situ downhole conditions. A well’s downhole conditions should dictate the choice between lower grade steel and NACE qualifications over generic S135; it shouldn’t be a default, simple selection. Properly matched drill pipe delivers its full rated performance only when grade selection accounts for those downhole conditions, not strength alone.

Drill Pipe Sizes and Weight, The Reference Tables

API 5DP organizes drill pipe length into two standard ranges, giving buyers a real variety of sizes to match well drilling and deep drilling programs. Per length figures cited in a Canada Border Services Agency trade-investigation filing on drill pipe (a government document that references the API range definitions), Range 2 generally runs 29 to 32 feet per joint, though it’s very often around 31.5 feet, this length accounts for most drill pipe used in standard wells. Range 3 runs 40 to 45 feet and is growing more common in deepwater wells and when running drill pipe adjacent to casing, where fewer, longer joints mean fewer connections, and fewer connections mean fewer potential failure points and less time spent making up and breaking out pipe on a trip.

How Is Drill Pipe Size Measured?

Specifying drill pipe size requires understanding the difference between tool joint OD and nominal body OD. Drill pipe size is defined by nominal OD and nominal weight per foot, which together imply the wall thickness engineered into the body. A 5-inch, 19.50 lb/ft drill pipe has a body OD of 5 inches and a wall engineered to weigh 19.50 pounds per foot, before the tool joint is added.

Since two pipes of the same OD can have different nominal weights — and therefore different wall thickness and resulting burst and collapse pressures — a string can’t be fully defined by OD alone; nominal weight must be used together with OD and grade. This applies whether a string is ordered new or a string of used oilfield pipe is being reviewed for purchase.

API 5DP drill pipe spans 2⅜” to 6⅝” OD across two standard length ranges.
Nominal OD	Common Use	Length Range
2⅜”–3½” (60.3-88.9mm)	Slimhole, workover, coring	Range 2 (29-32 ft / 8.8-9.8m)
4″–5″ (101.6-127mm)	General-purpose land and offshore drilling	Range 2 (29-32 ft / 8.8-9.8m)
5½”–6⅝” (139.7-168.3mm)	Deepwater, large-bore, casing-adjacent work	Range 3 (40-45 ft / 12.2-13.7m)

Worked example: a 5,000-foot vertical well drilled with Range 2 (31.5 ft average) pipe needs about 5,000 ÷ 31.5 ≈ 159 joints, each one requiring a make-up/break-out cycle on every trip out of the hole. Switching that same well to Range 3 (42.5 ft average) drops it to 5,000 ÷ 42.5 ≈ 118 joints, about 41 fewer connections to inspect, torque, and possibly fail on every single trip into and out of the hole — a real drilling efficiency gain across cost-effective drilling operations and demanding drilling applications.

OCTG and API Standards That Govern Drill Pipe

The OCTG-to-Drill-Pipe Terminology Bridge

OCTG – Oil Country Tubular Goods – is often treated as if equivalent to “drill pipe,” and that’s where much confusion in selection occurs. OCTG is the generic term encapsulating all tubular products deployed in a well: casing, tubing, and drill pipe. drilled pipe is a handling tool inserted and extracted from a hole repeatedly during its service, but casing and tubing are placed once, then remain in the hole until decommissioned. Drill stem design has always treated drill pipe as the reusable, cyclically loaded member of the string rather than a static tubular, and that difference is functionally important – API 5DP’s fatigue, torque, and inspection requirements for drill pipe are based on cyclic, multi-trip, reuse loading, while API 5CT (casing/tubing) isn’t.

API Spec 5DP is the prime governing standard for drill pipe manufacture: it establishes chemistry, tolerances, four steel grades, and minimum toughness (API 5DP requires a minimum longitudinal full-size impact toughness of no less than 54 J at ambient temperature). A separate document, API RP 7G-2 — long published as the U.S. national mate to ISO 10407-2 — controls inspection and classification once the pipe has been placed into service. API 5DP and RP 7G-2 both have addenda and revision updates published in 2025, so quoting one or the other should always involve confirmation of the exact edition in question rather than a casual handwave. The “drill pipe OCTG standards” question that buyers mean is really two documents at two distinct points of a pipe’s life: 5DP during manufacture, RP 7G-2 during service. Confusing the two is a real, costly mistake for OEM buyers and procurement teams: a supplier quoting generic OCTG pricing without confirming which specification actually governs your application can leave you with tubing that is a few percentage points short of the fatigue rating your well program actually needs. China Welong engineers its drill pipe specifically to API 5DP requirements — not generic OCTG catalog specs — for exactly this reason, since the two document families are not interchangeable in the field.

Tool Joint Connections: How Drill Pipe Sections Are Joined

Every drill pipe joint has a pin (male, tapered external thread) as the pin tool on one end and a box tool (female, tapered internal thread) on the other, allowing a series of threaded tool joints to screw into one another to create a continuous string. The connection is a rotary-shouldered thread family – NC (numbered connection), IF (internal flush), and full-hole (FH) are the most common generic thread families across the industry – sized to correspond with the pipe OD and torque expected for the string.

Correct torque making-up the connection is equally important as thread choice itself. If a connection isn’t brought to its specified make-up torque before being put into service, it continually attempts to tighten downhole as the string rotate – a cyclic micro-slip-and-catch-on-the-shoulder-face process that scuffs the threads via a repeated jackhammer-mimicking impact, powered by bit vibration and surface torque. That isolated detail is why torque records, not merely thread inspection, are included in a serious connection integrity program. The financial risk is real: a single galled connection discovered mid-well can force an unplanned trip and days of rig downtime, a mistake that a documented make-up torque log — cross-checked against the tool joint manufacturer’s specification — would have flagged before it became a field failure. China Welong verifies make-up torque tolerances on its own tool joints as a standard part of quality control before shipment, because a connection engineered to spec on paper but assembled a few percentage points outside its torque window is a common, avoidable failure point in real oilfield applications. OEM buyers and drilling contractors specifying NC/IF/FH connections in the field should request the same torque documentation from any supplier.

⚠️ Common Mistake

Not a manufacturing defect but by far the single biggest reason for damaged threads is debris that got lodged in the connection during the make-up procedure. This is exactly why the importance of drill pipe maintenance is so often underestimated: a clean-and-inspect step before every make-up costs a few minutes and prevents the majority of avoidable thread failures, extending the useful life of the pipe. A well-maintained drill pipe fleet is simply better equipped to meet the demands of specific drilling needs used in oil and gas operations worldwide.

Tool joint manufacturing itself hasn’t stopped advancing either: from patent filings concerning improved thread geometry — such as tool joint sawtooth-profile thread designs providing better distribution of loads across the flanks of engaging threads — to advancements in upset-forging processes at the junction of the pipe to the tool joint: drill pipe engineering hasn’t yet become a resolved issue of decades ago.

Classification, Inspection, and the New-vs-Used Market

The Drill Pipe Downgrade Path: New to Scrap in 5 Classes

Once drill pipe goes downhole for the first time, it is permanently reclassified, the system only moves in one direction.

The current edition of API RP 7G-2, historically adopted as the U.S. national counterpart to ISO 10407-2, grades used drill pipe mostly based on the percentage of remaining original wall thickness, determined by ultrasonic or other calibrated measuring devices, not based on its appearance or how many wells it has drilled. The minimum acceptable wall-thickness percentages quoted in the table below represent the figures most consistently used in engineering and inspection-service practice and are consistent with the classifications found in the IADC Drilling Lexicon. A full inspection also evaluates additional imperfections, pitting, slip cuts, thread condition, separately from wall thickness. Full specification is only to be found in the original standard, available through official distributors of API/ANSI accredited standards.

Other parameters besides the level of wall thickness, such as corrosion and thread condition, are part of the RP 7G-2 standard for grading. These factors can contribute to the degradation of a joint and cause it to fall out of its classification class. Use the tables below as an informal guide; always consult the published standard. The table also lists two market categories a buyer will encounter that sit outside the formal five-class API schedule: reclaimed structural-grade pipe and unclassified/pending-inspection listings, both discussed in more detail below.

API RP 7G-2 classifies used drill pipe on remaining wall thickness — a one-way downgrade path from New to Scrap.
Classification Category	Remaining Wall	Typical Disposition
New (N-Class)	100%	Unused; only classification level that can never be reassigned upward
Premium (P-Class)	≥ 80%	Fit for continued standard service after inspection
Class 2 (field practice: C-1)	≥ 70%	Service-restricted; re-inspect on a shorter interval
Class 2/3 boundary (field practice: C-2)	≥ 65%	Some inspection services subdivide this band separately from the base Class 2 threshold for fleet-tracking purposes
Class 3 (field practice: C-3)	≥ 55%, wear on one side only	Light-duty use only; approaching end of service life
Scrap	< 55%	Removed from service, not to be run downhole
Reclaimed / Structural-Grade (non-oilfield)	N/A – failed oilfield inspection	Resold for fencing, ranch construction, and other non-drilling structural use; not to be represented as classified oilfield pipe
Unclassified / Pending Inspection	Unknown until measured	Listed by length and diameter only, with no wall-thickness report; treat as unverified regardless of asking price

If You’re Evaluating “Used Drill Pipe” — A Condition-to-Action Guide

If the list of offered joints includes an API RP 7G-2 or ISO 10407-2 certified wall thickness inspection report, assume the material is original oilfield grade and verify it has been classified to match the requirements for your job.
If the only listing include visual condition and price per foot without documentation of any inspection, request a full wall thickness report prior to purchase – any pipe lacking inspection reports isn’t assumed to be graded and could fail the application.
If the listing simply states length and diameter for fence or other structural construction and doesn’t mention API classification or grade, assume that it’s reclaimed, non-oilfield-grade material not intended for drill pipe use regardless of cost.

This distinction is more than theoretical; some pipe suppliers openly list reclaimed drill pipe for ranch construction and other non-oilfield applications. Field discussion among machinists and fabricators confirms this is common practice: used drill pipe, typically 4130/4140-family steel, gets inspected, often by X-ray, for cracks, and pipe that fails inspection for oilfield reuse is frequently sold as scrap into exactly this kind of structural or fencing market instead. Both markets are legitimate, but they aren’t the same product, and a buyer sourcing pipe for a well need classification documentation a fence-post buyer never asks for. This isn’t a misclassification on their part, but an indication that there are two entirely different products, each requiring different kinds of verification from a buyer, that are called drill pipe.

How Drill Pipe Is Manufactured

Modern drilling relies on a process where drill pipes are manufactured starting from a single length of continuous, plain-end steel tube, sized and wall-gauged for the intended grade and nominal weight. Each end is upset — locally heated and thickened to build a tempered steel transition zone — to accept a pre-forged, heat-treated tool joint, which is then friction-welded onto the upset as part of the drilling process.

Friction-welding, not arc welding, is the industry standard because the joining happens in a solid state, requiring no filler metal and therefore no fusion heat-affected zone that could create weak spots at a joint expected to withstand many millions of torque cycles over its service life.

China Welong manufactures drill pipe with friction-welded tool joints as part of its downhole tubular product line, alongside its heavy weight drill pipe and drill collar products in the same BHA family. Control of the upset-forging process at the pipe-to-tool-joint junction has continued to be an active area for patent filings by many companies — and a recent set focuses on achieving better thermal management throughout this region to limit formation of the fatigue-crack initiation points indicated by field reports to be the leading cause of failure. Depending on the service environment, drill pipes may be coated internally, externally, or both to resist corrosion and abrasion, in addition to — not instead of — the grade and NACE-qualification decisions covered above.

💡 Key Takeaway

Normally it is the tool joint weld property – not the steel pipe base – which is determining fatigue life. Inquire from your supplier details about their process control on upset-forging and friction-welding. It’s not the steel grade certificate they provide.

Drill Pipe in the Downhole Tool Family

Rarely is it run solo on real drilling projects in demanding drilling environments. On a directional or extended-reach well, the string often contain drilling mud motors for downhole rotation, drilling jars for mechanical release of a stuck string, and wireline tools plus measurement while drilling instrumentation for logging and intervention — a full family of drilling tools, each a separate product category with its own specifications and failure modes. A BHA must consider drill pipe as just one part of a larger, interconnected system: pipe grade, Mud Motor bend set and jar positioning all behave under common torque and tensile loads. For example, a directional crew that specifies S135 pipe for a high-torque horizontal section but pairs it with an undersized drilling jar may find the jar itself become the weak link during a stuck-pipe event, the string is only as reliable as its least-matched component, not its strongest single joint. This is a common, costly mistake in BHA planning for OEM and drilling-contractor buyers alike — mismatched components in the field routinely add days of remedial trip time. China Welong supplies drill pipe alongside its own drilling jar and mud motor lines specifically so components in a real oilfield BHA are engineered to work together, not sourced piecemeal from mismatched catalogs.

Industry Outlook: What’s Changing in Drill Pipe Demand

The single biggest change reflected in today’s search behavior: it’s less about “spec shopping” and more about “condition diligence.” Search volume for “used drill pipe” is up roughly 75% year-over-year and “drill pipe inspection” is up roughly 40% over the same period, even as searches on raw spec data, sizing, and even the bare term “drill pipe” itself have fallen about 23% year-over-year. Read alongside a drilling-fatigue literature that openly admits current models predict only about 20% (a fifth) of actual service life, the clear message for pipe buyers is: history of the condition and classification of used and reconditioned pipe is just as important (if not more important) as grade and size on its own when deciding which product to buy. The risk of skipping this diligence is not hypothetical — buyers who rely on price and nominal grade alone routinely discover, weeks into a project, that unclassified pipe fails inspection they should have required up front. China Welong provides documented mill-test and inspection records with its drill pipe specifically to close that gap for OEM and drilling-contractor buyers.

On the technology front, wired drill pipe is branching out from a deepwater niche to be applied to more complex wells. Halliburton released its StreamStar wired-drill-pipe interface system on Oct. 30, 2025, to an already growing field of players — including SLB’s NeoLink and Reelwell, whose CEO has argued wired pipe’s moment has finally arrived after its own North Sea debut. While the performance advantage is a known quantity, adoption rates will vary by provider: Wired-pipe telemetry sends data in tens of thousands of bits per second, compared with tens of bits per second with traditional mud-pulse telemetry – an order-of-magnitude difference enough to enable continuous downhole data rather than just discrete pulses. If your 2026 well program involves extended-reach or highly steerable wells, wired-pipe compatibility should be addressed at the string design stage rather than added later; ask your service provider for current adoption figures, rather than relying on estimates in any one publication.

Estimates from market researchers value the global wired drill pipe segment at approximately $7.4 billion in 2025, growing to approximately $11.4 billion in 2034 – a CAGR of roughly 4.9%. The values below serve only as directional context for the operational advice given herein.

Frequently Asked Questions

Q: What is a drill pipe?

View Answer
